Mobile Generator
Machine Setup
5.6 Refueling the Machine (Deep Sea Controller)
Requirements
■ Engine stopped
■ Machine/fuel tank level with the ground
■ Remote switch disconnected from the remote run terminal
■ Fresh, clean fuel supply
Procedure
Perform the procedure below to refuel the machine.
1. Remove the fuel cap.
2. Place the genset controller power switch in the ON position and wait for the
Deep Sea controller to boot up.
3. Press the right arrow key to navigate to the “Engine” screen.
4. Use the up or down arrow key to navigate to the “Engine Fuel Level” screen.
The fuel level (in percentage of the fuel tank capacity) will be displayed.
Note: The “Engine Fuel Level” screen will revert back to status screen after three
minutes of inactivity.
5. Fill the fuel tank until the fuel level reaches 100%.
6. Re-install the fuel cap.
7. Place the genset controller power switch in the OFF position.
WARNING
Fire hazard. Fuel and its vapors are extremely flammable. Burning fuel can cause
severe burns.
► Keep all sources of ignition away from the machine while refueling.
► Refuel only when the machine is outdoors.
► Clean up spilled fuel immediately.

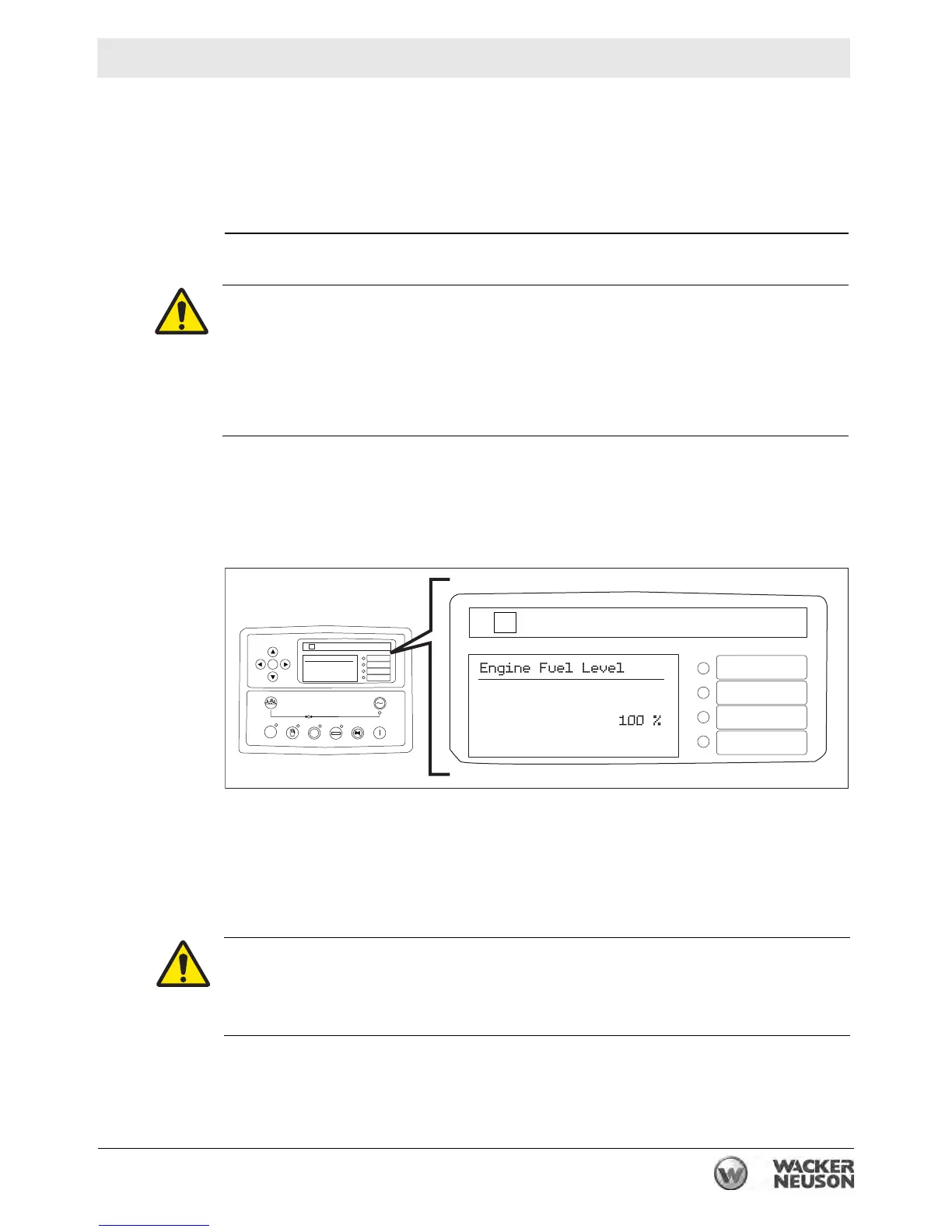

wc_gr011443
oo
AUTOAUTO
DEEP SEA ELECTRONICSDEEP SEA ELECTRONICS
DSE 7310DSE 7310
DSEDSE
OpenOpen
CloseClose
Gen-SetGen-Set
OpenOpen
CloseClose
LoadLoad
AlarmAlarm
Warnin gWarning
Main Breaker OpenMain Breaker Open
Low Speed ActiveLow Speed Active
StartStartLamp TestLamp Test
Horn ResetHorn Reset
AutoAuto
ModeMode
ManualManual
ModeMode
Stop/ResetStop/Reset
Generator AvailableGenerator Available
L-NL-N
L-LL-L
0 kW0 kW
0 V0 V 0.0 Hz0.0 Hz
--- pf--- pf
0 V0 V 0 A0 A
DSE
DEEP SEA ELECTRONICS
DSE 7310
Alarm
Warning
Main Breaker Open
Low Speed Active
CAUTION
Fire and health hazard. Fuel expands when heated. Expanding fuel in an over-filled
tank can lead to spills and leaks.
► Do not overfill the fuel tank.
