Mobile Generator
How to Connect Loads (600V)
12.8 Connecting 600V, 3-Phase Loads
1. Stop the engine and turn the main circuit breaker off.
2. Turn the voltage selector switch to the 600 position.

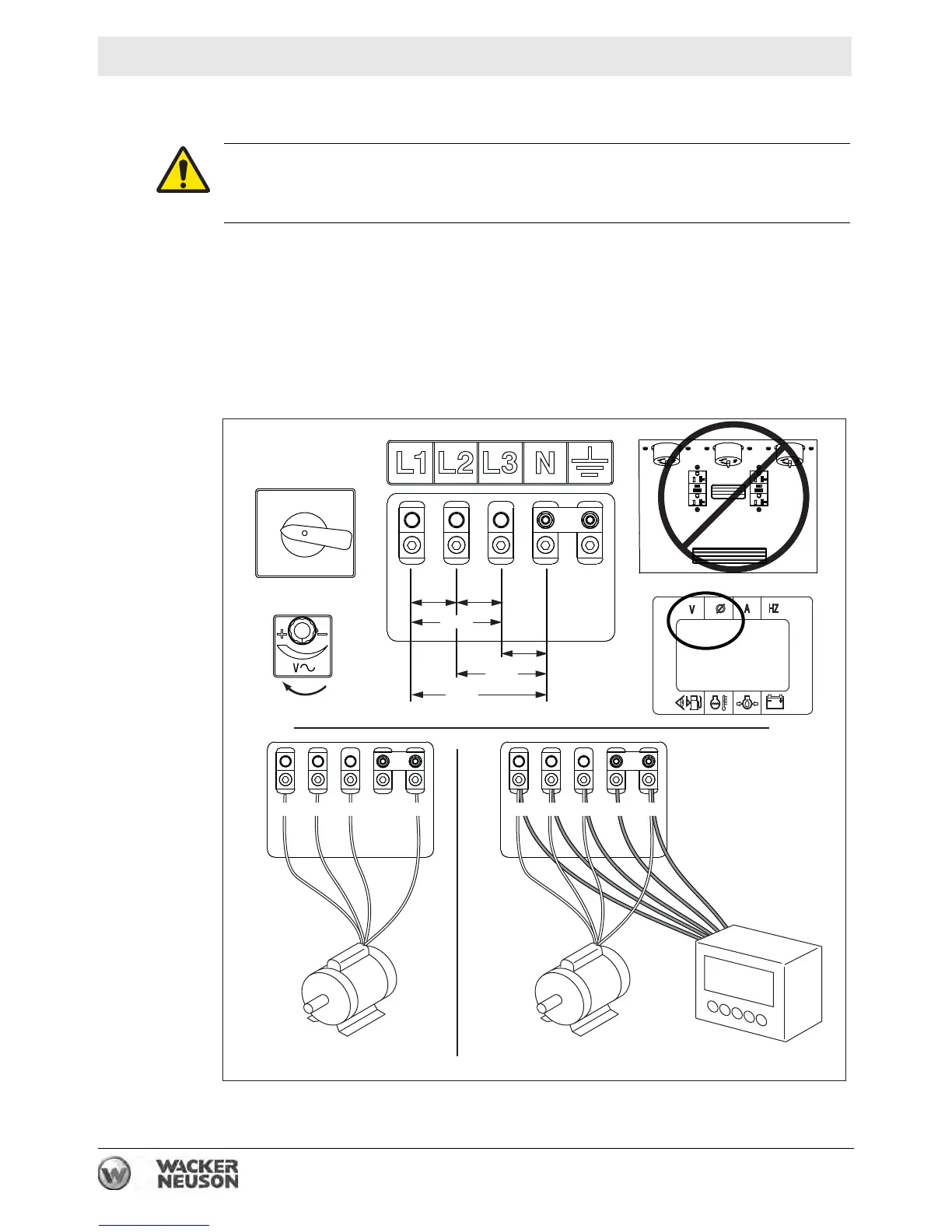

3. Open the lug door and connect the wires from the load as shown.
4. Close the lug door.
5. Start the machine and fine-tune the voltage as necessary using the voltage
adjustment rheostat.
WARNING
Electric shock hazard. High voltage can cause serious injury or death.
► Connections must be made by a qualified electrician.
600V
208/240V 3
Ø
120/139V 1
Ø
wc_gr011356
600V 3Ø
600 P3 24 60
100% 175 0 13
HOT HOT HOT GN
600V 3Ø TRANSFORMER
HOT HOT HOT GNWH
600V 600V
600V 3Ø
346V
346V
346V
600V
1Ø
120/240V
3Ø
277/480V
3Ø
transformateur
transformador
