wc_tx003580gb_FM10.fm
97
Mobile Generator
Operation (Deep Sea Controller)

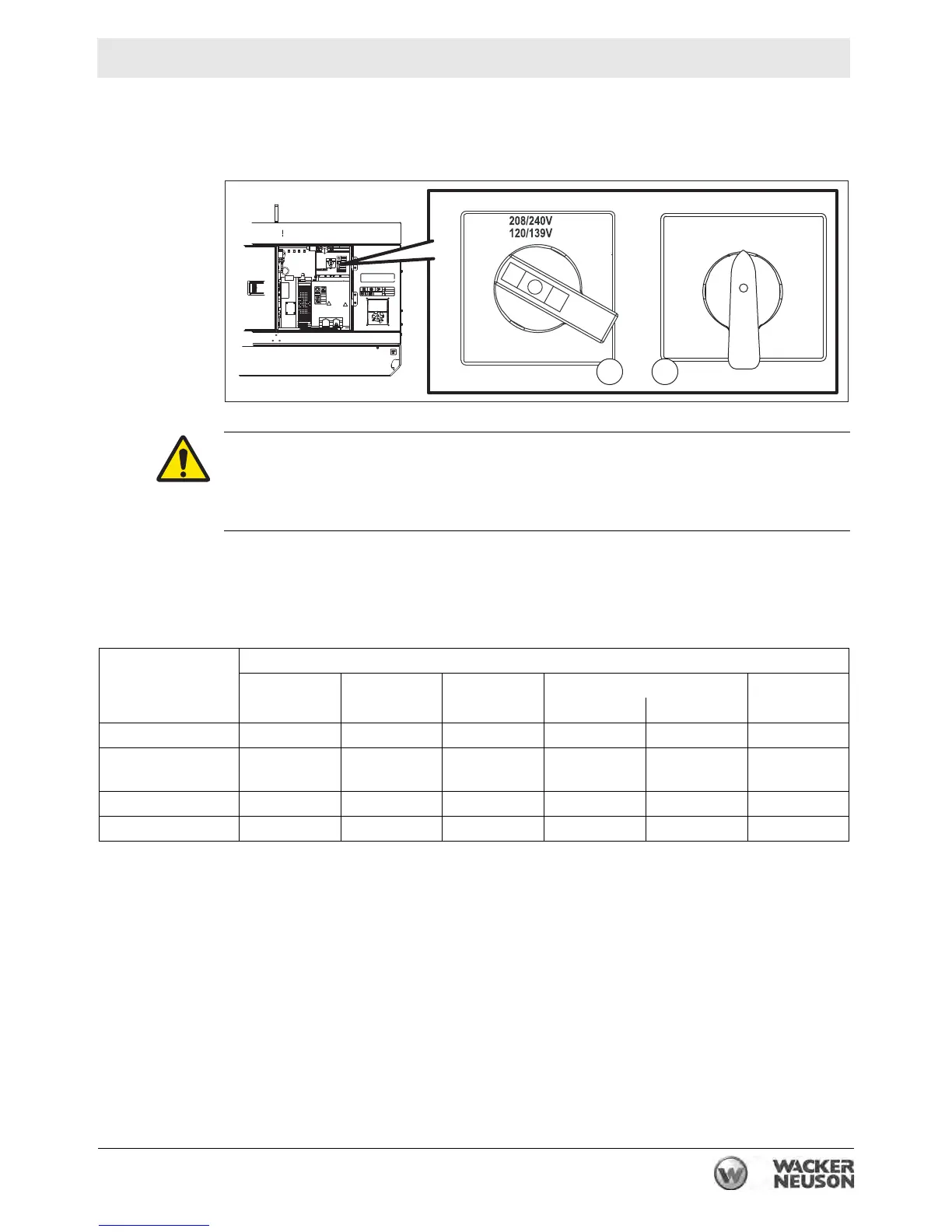

9.3 Selecting the Voltage
Location
One of two types of voltage selector switch—either three-position (a) or four-
position (b)—is mounted to the machine near the lugs.
Selecting the
voltage
The chart below lists the ranges of voltages available in each of the switch
positions. Select the desired voltage by rotating the handle of the voltage selector
switch. Then, use the voltage adjustment rheostat to set the exact voltage you
require. The voltage is displayed on the LCD panel.
1
Not available on all models.
2
Not available on 600V models.
NOTICE: Do not change the position of the voltage selector switch while the
engine is running. Doing so can cause arcing which can damage the voltage
selector switch and the generator windings.
wc_gr011503
277/480V
120/240V
1Ø3Ø
3Ø
1Ø
DIESELDIESEL
SOLAMENTE COMBUSTIBLE DE BAJO CONTENIDO DE AZUFREO COMBUSTIBLE DE SOLAMENTE COMBUSTIBLE DE BAJO CONTENIDO DE AZUFREO COMBUSTIBLE DE
ULTRABAJO CONTENIDO DE AZUFRE.ULTRABAJO CONTENIDO DE AZUFRE.
NUR NIEDRIGEN SCHWEFELKRAFTSTOFF ODER ULTRANIEDRIGEN SCHWEFELKRAFTSTOFF.NUR NIEDRIGEN SCHWEFELKRAFTSTOFF ODER ULTRANIEDRIGEN SCHWEFELKRAFTSTOFF.
STOPSTOP
PELIGROPELIGRO
GEFAHRGEFAHR
DANGERDANGER
DANGERDANGER
177416177416
!!
!!
1Ø
120/240V
208/240V 3
Ø
3Ø
277/480V
3Ø
346/600V
120/139V 1
Ø
a
b
WARNING
Electric shock hazard. High voltage is present inside the voltage selector switch
enclosure when the engine is running.
► Do not open the voltage selector switch enclosure unless the engine is stopped.
Switch position
Range of Voltages Available
3Ø at lugs
(L–L–L)
1Ø at lugs
(L–N)
1Ø at lugs
(L-L)
1Ø at twist lock
1Ø at GFCI
L-N (120V) L-L (240V)
120/240 VAC 1Ø — 110–125 220–250 110–125 220–250 110–125
208/240 VAC 3Ø
120/139 VAC 1Ø
190–240 110–139 190–240 110–139 190–240 110–139
277/480 VAC 3Ø 380–480 220–277
2
190–240
2
110–139
2
190–240
2
110–139
2
346/600 VAC 3Ø
1
540–600 — — — — —
