Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-30
Tray 1 Retard Roller
Parts List 5.1 Tray 1
1. Pull Tray 1 out of the printer.

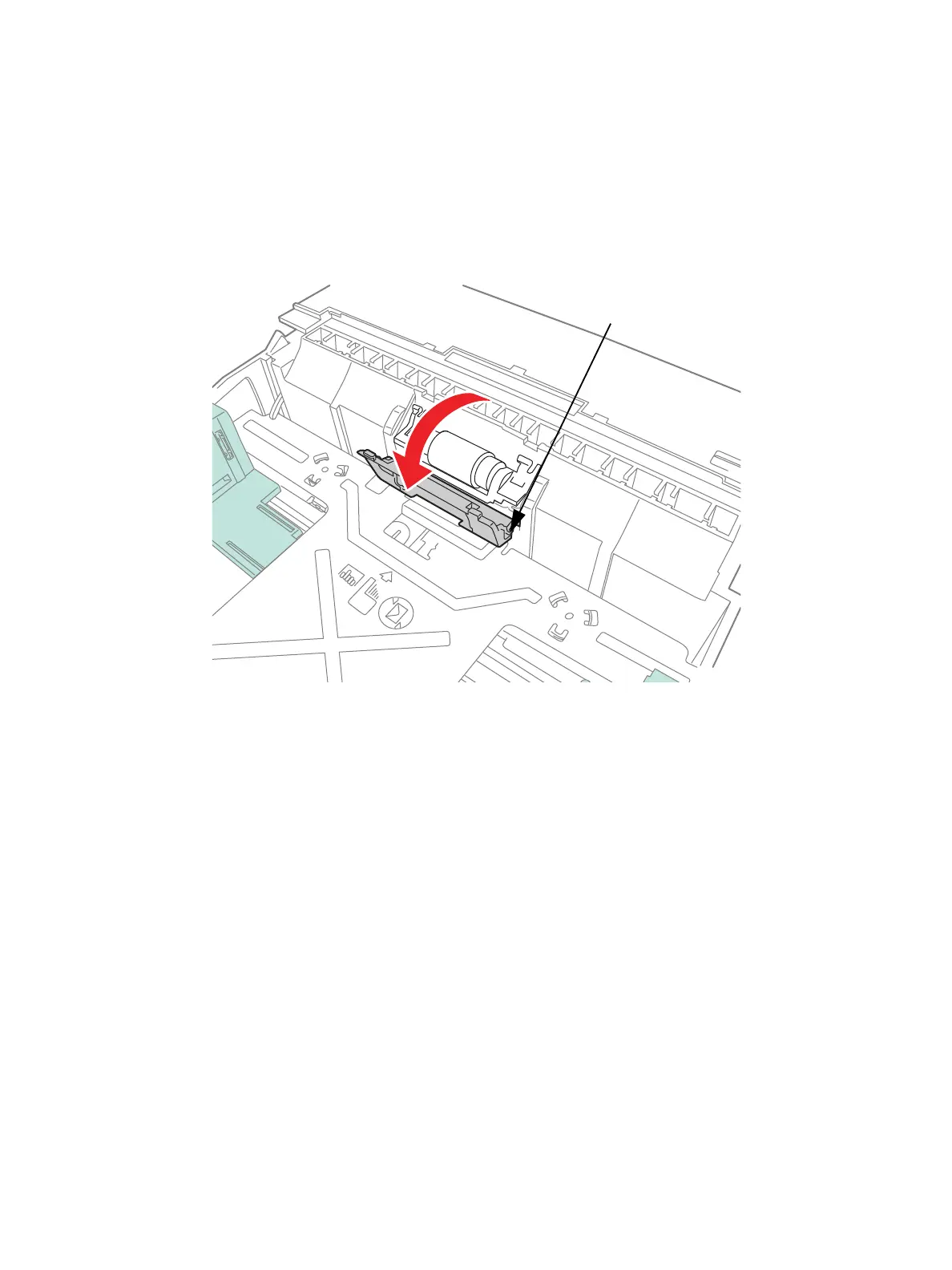

2. Release bosses on Retard Roll Cover and rotate cover back.
CAUTION: Do not damage the Bosses on the sides of the Roller Cover
s3320-065
PUSH
BOSSES
