Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-119
DADF Board
Parts List 8.1 WorkCentre 3345 SCANNER and DADF
1. Remove the DADF (page 4-116)

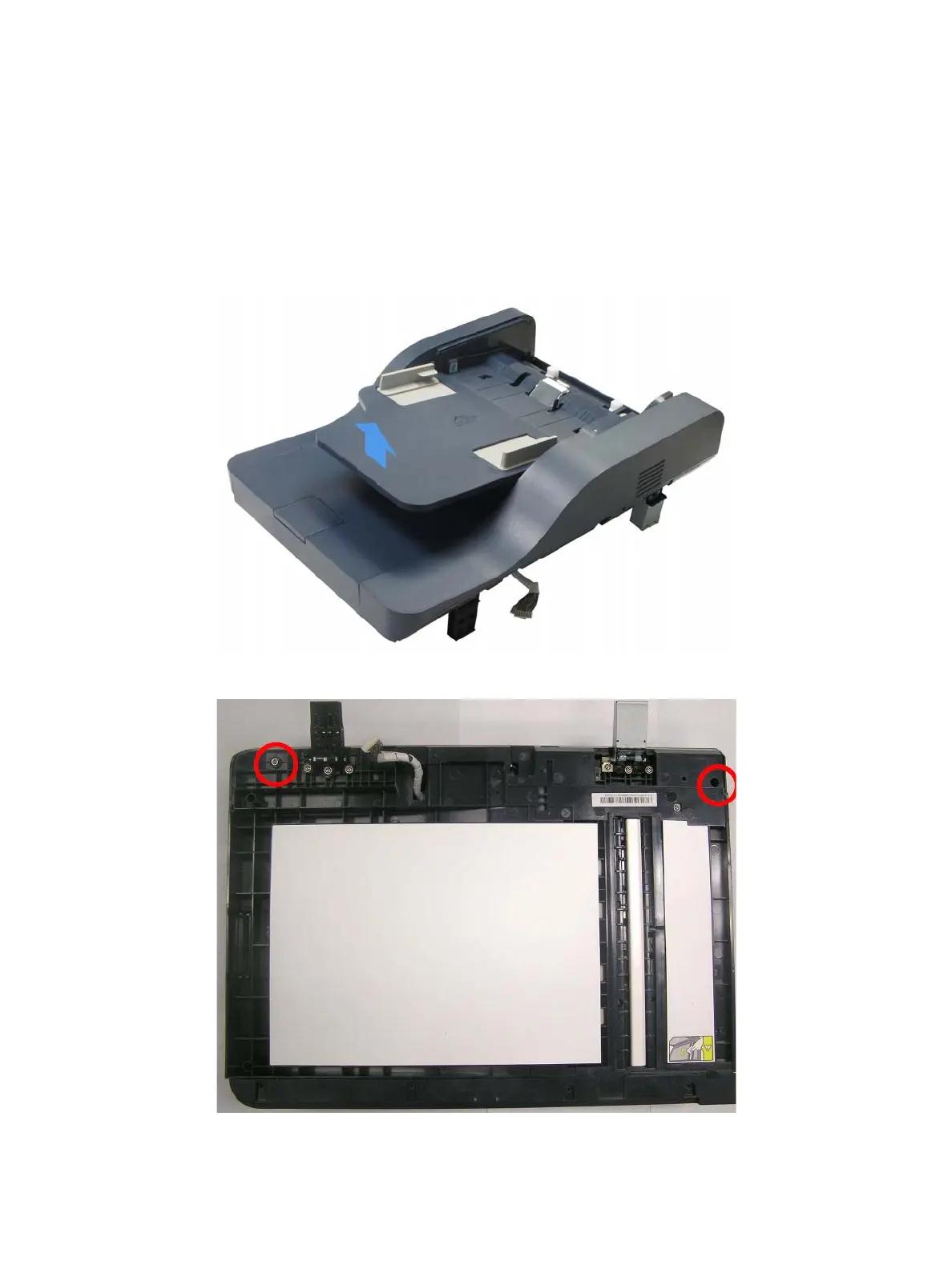

2. Remove the DADF Input Tray.
3. Remove 2 screws.
4. Remove the DADF Rear Cover (Parts List 8.1A WorkCentre 3345 DADF, PL 8.1A.10).
