Xerox WorkCentre 3345 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-149
Optional Tray 2 Right Side Cover
Parts List 12.1 Optional Tray 2 Feeder Main

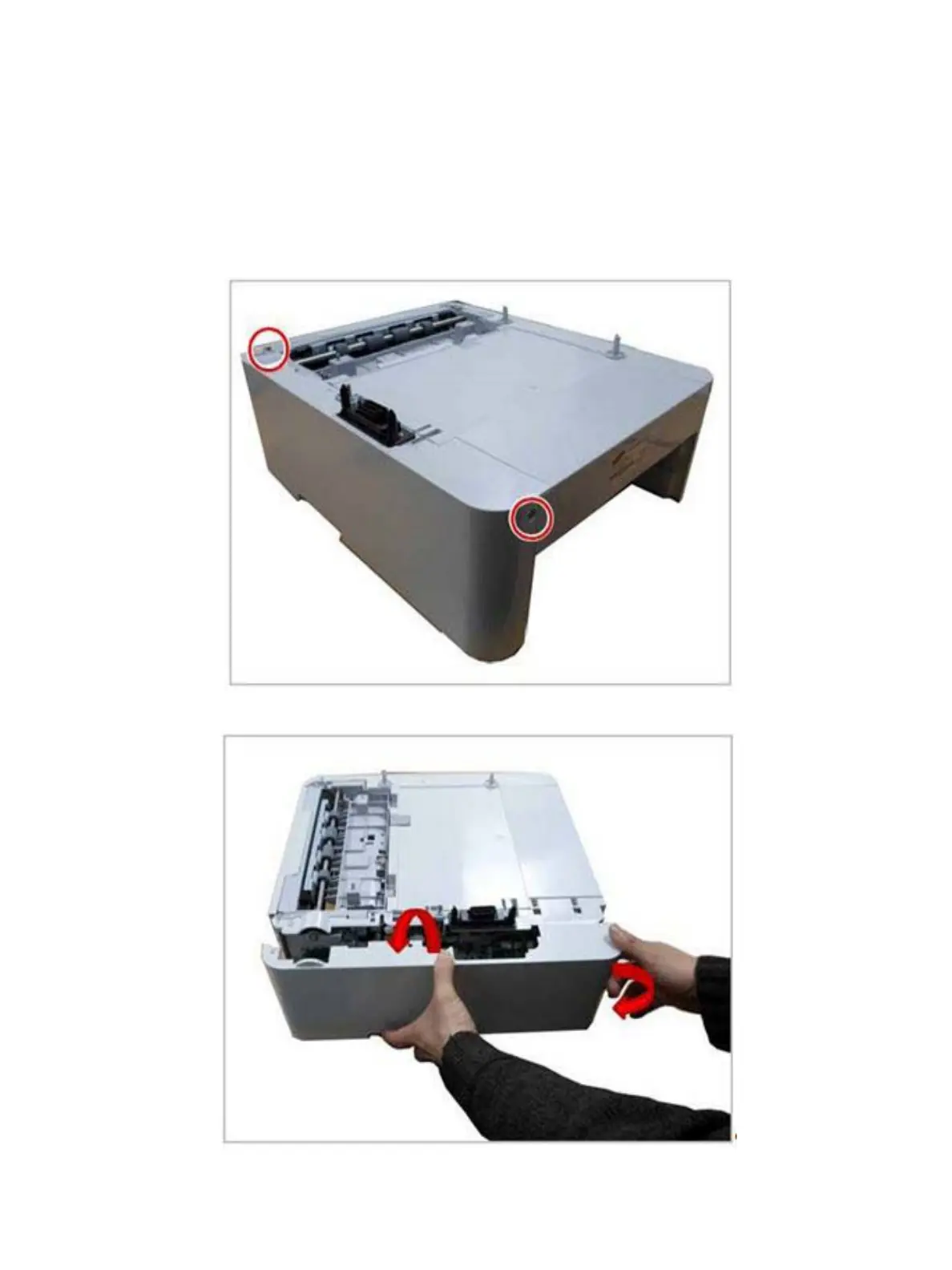

1. Disconnect the Optional Tray harness.
2. Lift the printer from the Optional Tray.
3. Remove 2 screws (silver, metal, hex-head, with flange, 7 mm) from the Right Side Cover.
4. Starting at the rear of the Right Side Cover, disconnect the tabs and remove the Right Side Cover.
