ADF Drive (WorkCentre 3335)
Parts List 7.1A WorkCentre 3335 ADF
WARNING: Do not perform repair activities with the power on or electrical power supplied to the
machine. The machine could activate and cause serious personal injury when the power is on or
electrical power is supplied.
1. Do steps 1-4 in the Preparation section (page 4-3).
2. Remove the Paper Path Assembly (page 4-141).

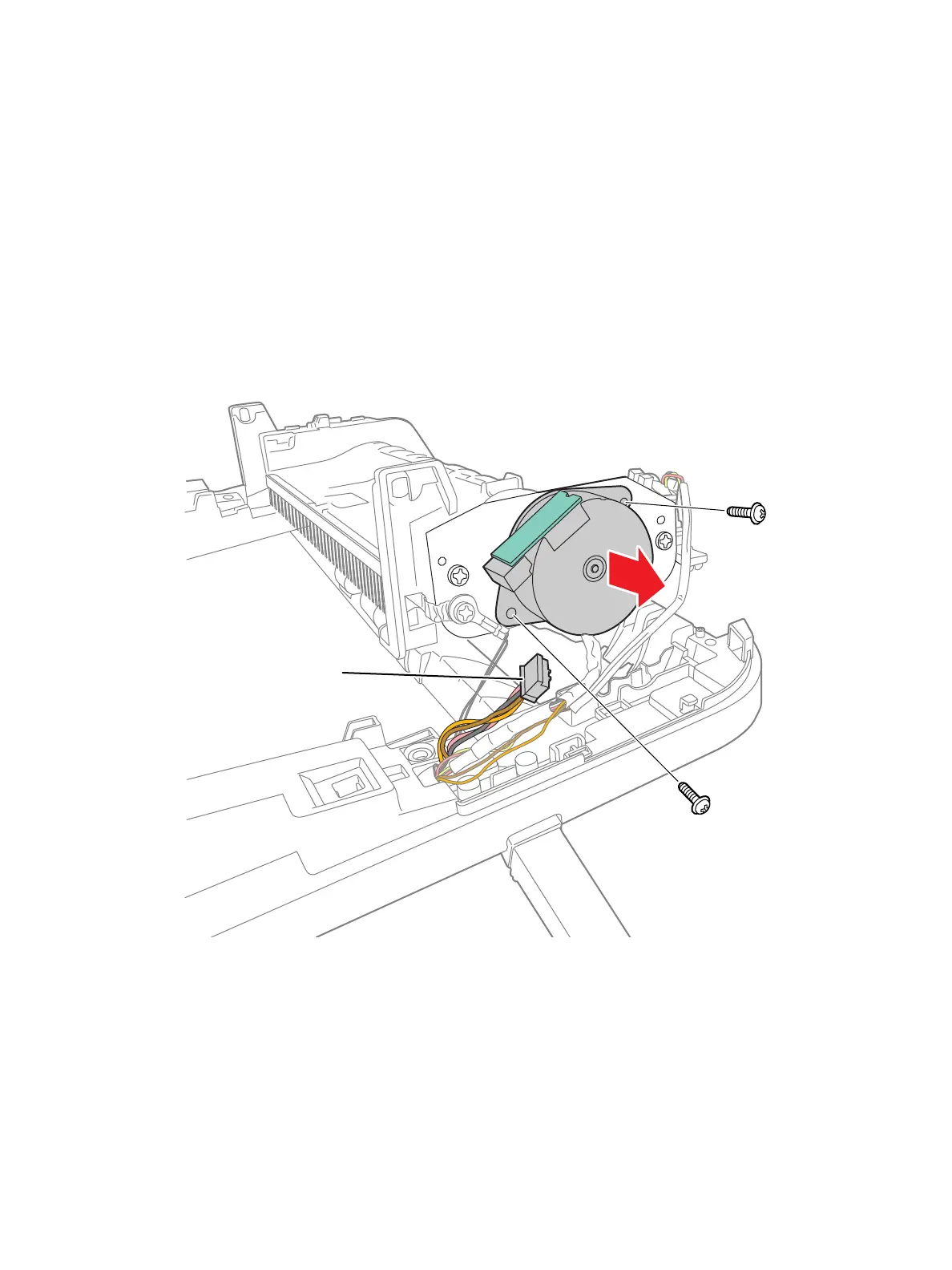

3. Disconnect P/J1 on the ADF Drive.
4. Remove 2 screws (sheet metal, silver, 3 mm) and remove the ADF Drive.
