Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-141
ADF Paper Path Assembly (WorkCentre 3335)
Parts List 7.1A WorkCentre 3335 ADF
WARNING: Do not perform repair activities with the power on or electrical power supplied to the
machine. The machine could activate and cause serious personal injury when the power is on or
electrical power is supplied.
1. Do steps 1-4 in the Preparation section (page 4-3).
2. Disconnect the bosses and remove the Input Tray Module.
3. Remove the ADF Assembly (page 4-138).
4. Remove the Front and Rear ADF Covers (page 4-145).

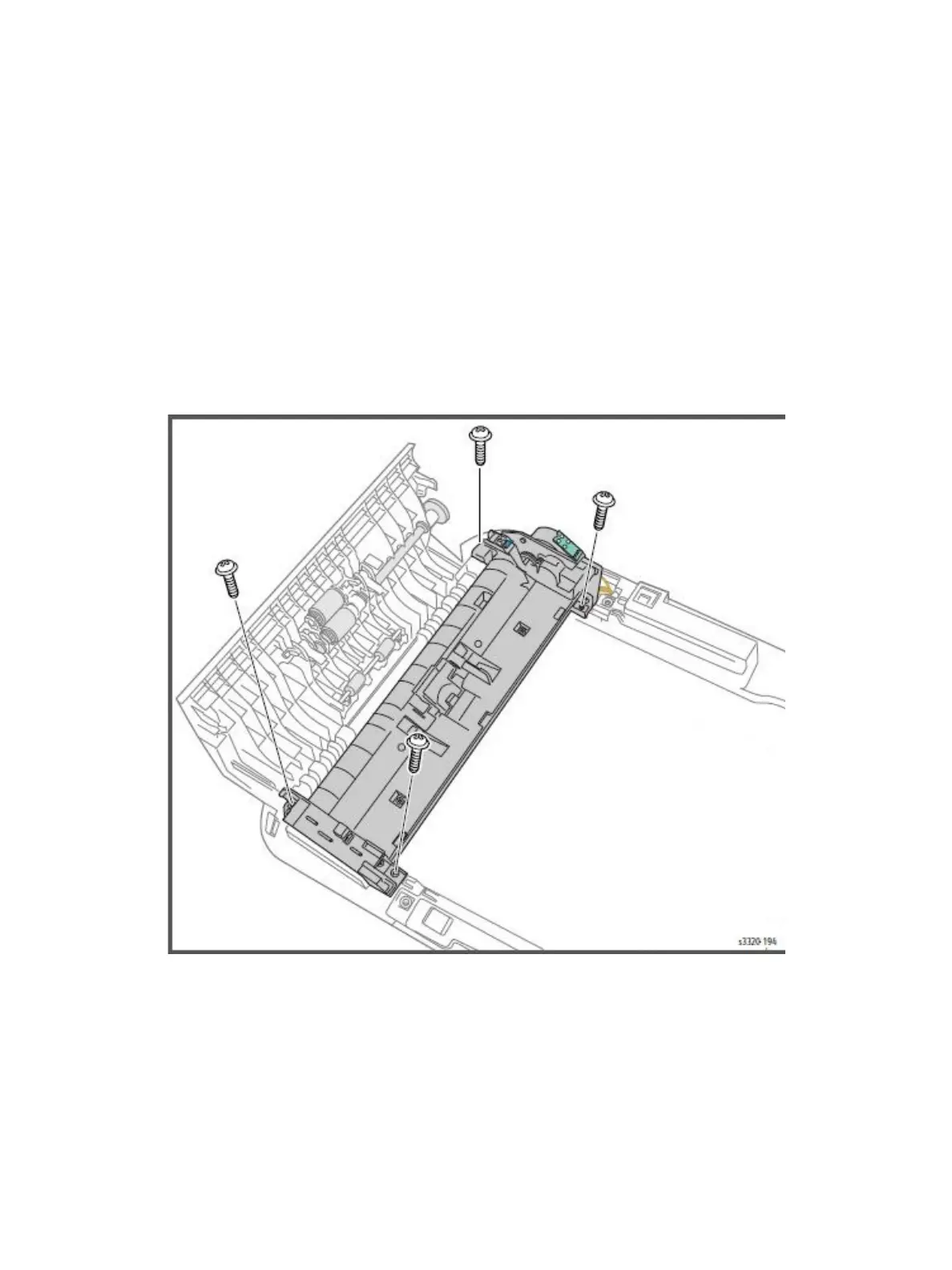

5. Remove 4 screws (silver, plastic tap, 8 mm).
6. Unthread the wire harness and remove the Paper Path Assembly.
Replacement Note: Reattach the ADF Top Cover before reinstalling the Paper Path Assembly.
To Next Page
