Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-135
DADF Lifting Solenoid
Parts List 8.1A WorkCentre 3345 DADF
1. Remove the DADF (page 4-116)

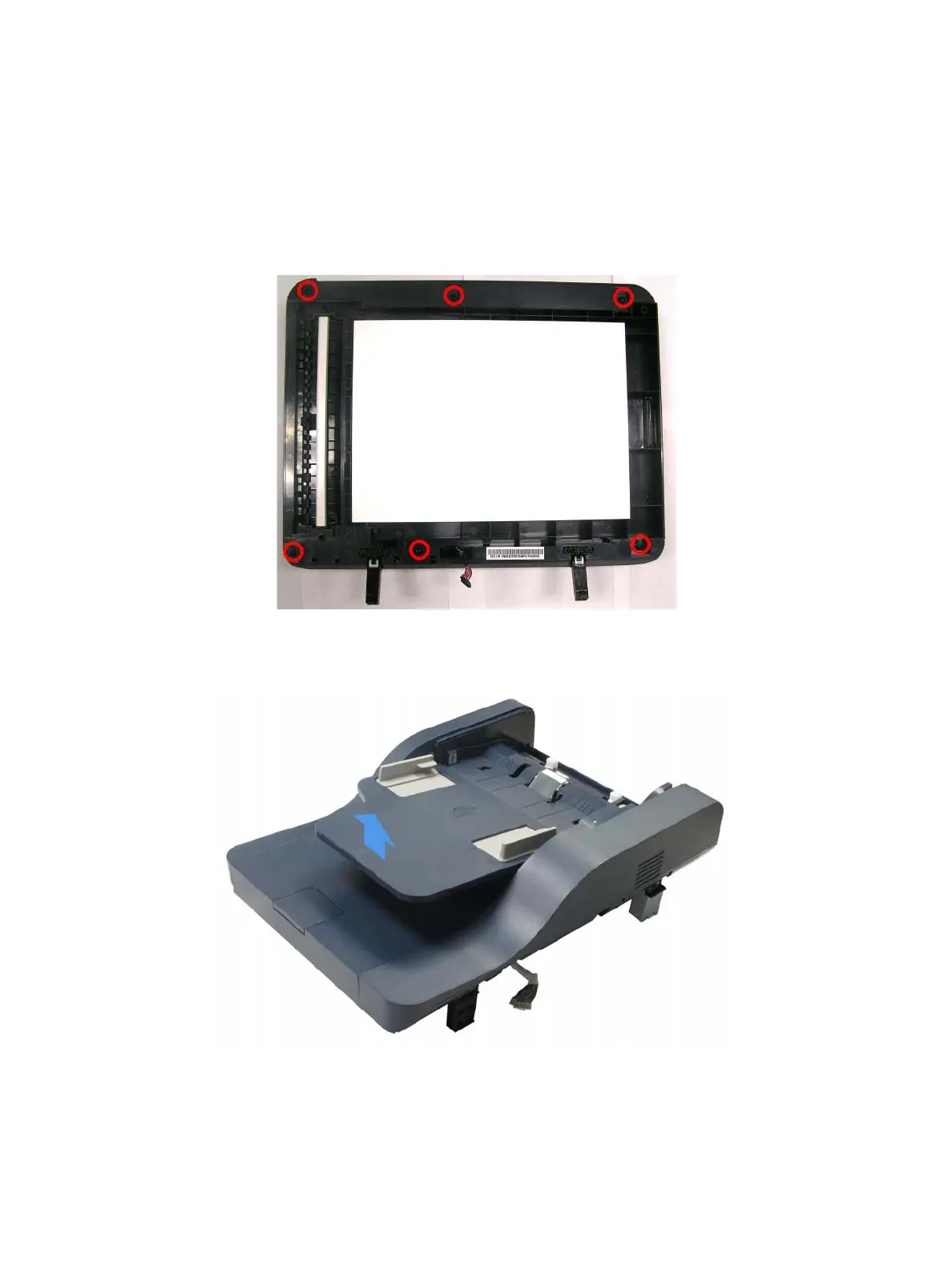

2. Remove 6 screws (silver, flanged, tap, 10 mm) from the bottom of the DADF.
3. Remove the DADF Cover (page 4-117).
4. Remove the DADF Input Tray.
