Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-121
DADF Drive
Parts List 8.5 WorkCentre 3345 Drive DADF
1. Remove the DADF (page 4-116)
2. Remove the DADF Cover (page 4-117).

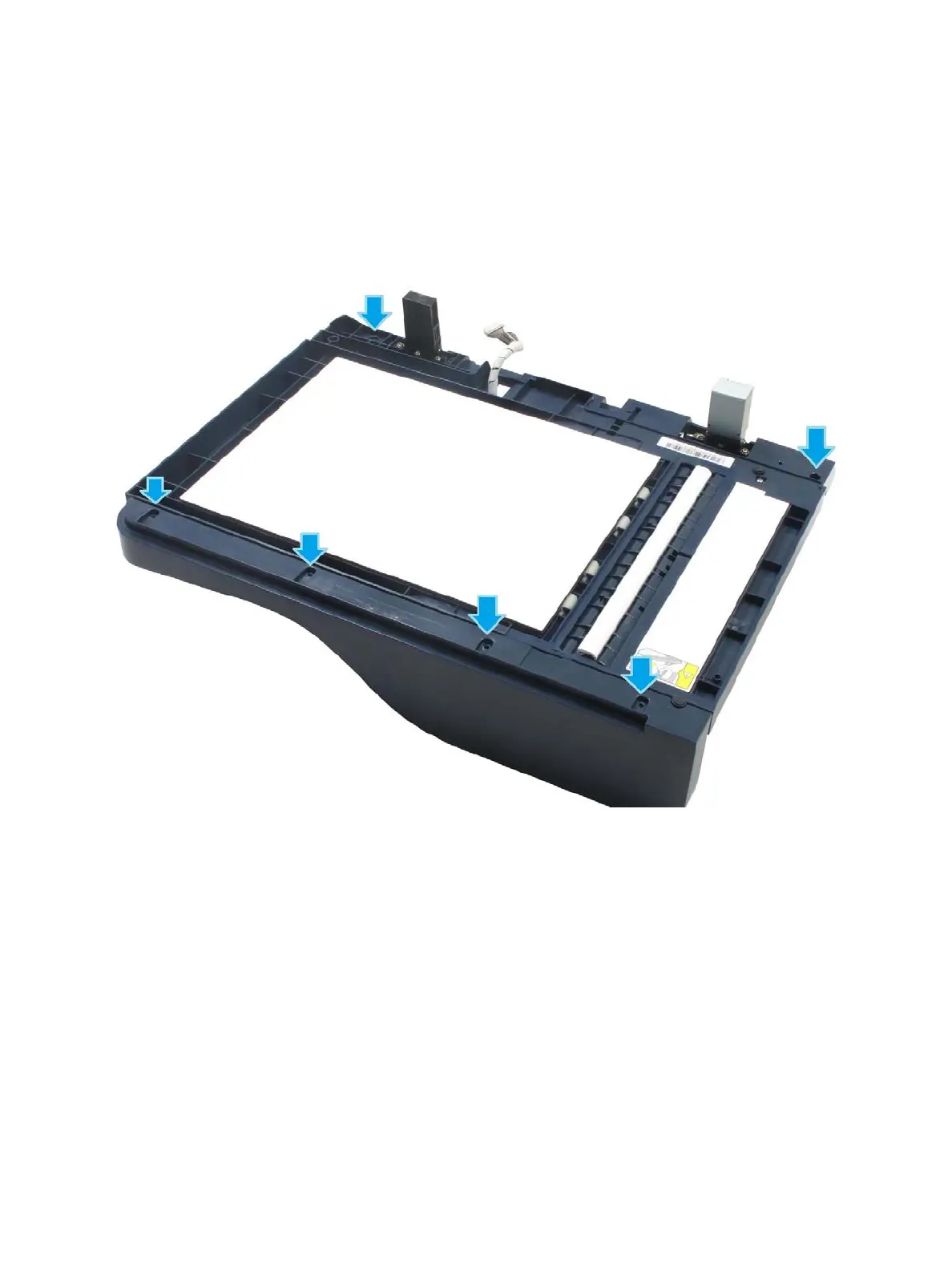

3. Remove 6 screws (silver, flanged, tap, 10 mm) from the bottom of the DADF.
