Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-91
Registration Sensor and Feed Sensor
Parts List 3.1A Frame (2 of 2)
WARNING: Do not perform repair activities with the power on or electrical power supplied to the
machine. The machine could activate and cause serious personal injury when the power is on or
electrical power is supplied.
1. Do steps 1-4 in the Preparation section (page 4-3).
2. Undock the printer from the optional Tray 2 Base. (page 4-8).
3. Remove the Toner Cartridge (page 4-5).
4. Remove the Drum Cartridge (page 4-5).
5. Remove Tray 1 (page 4-6).
6. Remove the Duplex Unit (page 4-7).

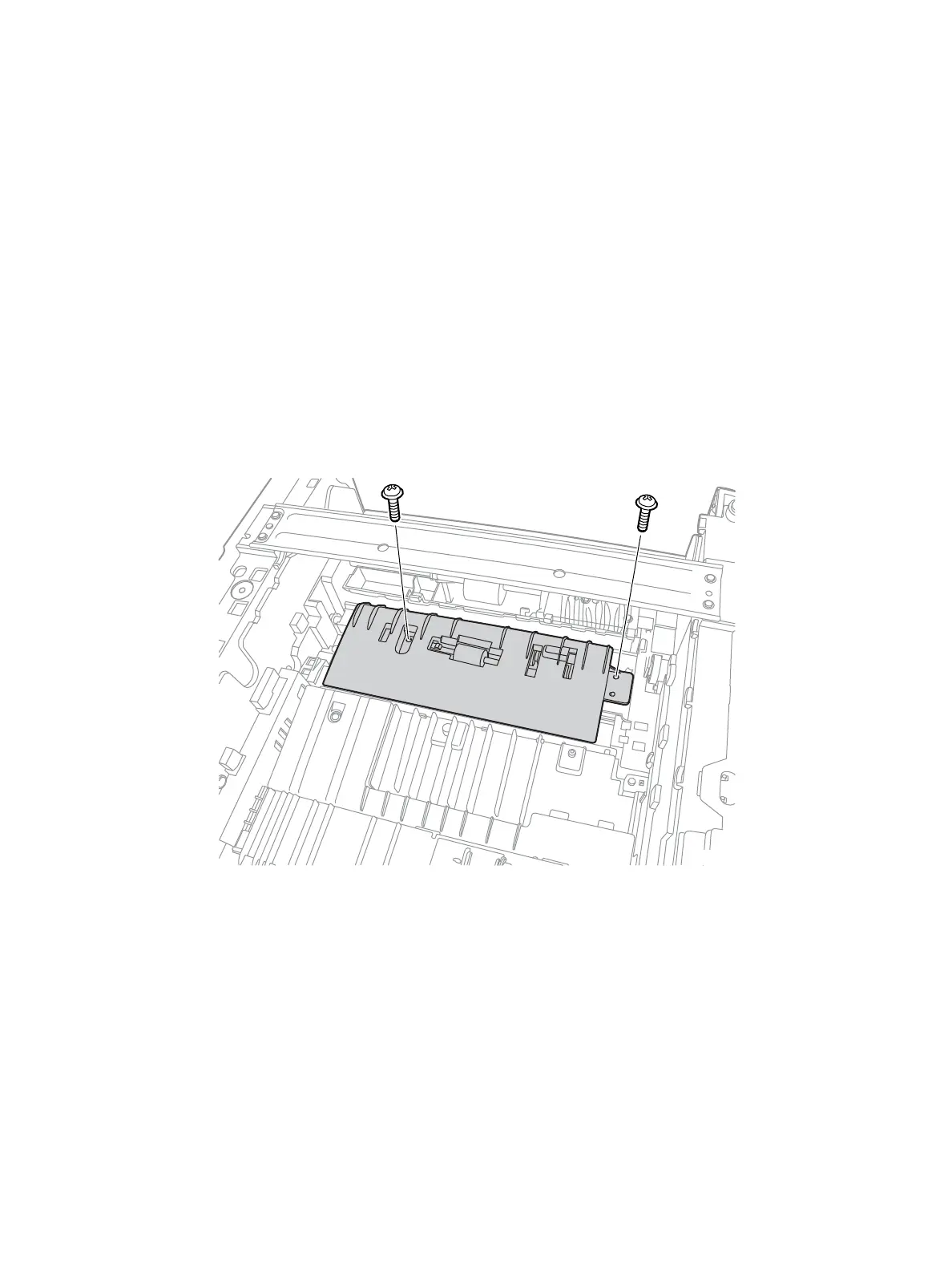

7. Remove 2 screws (silver, flanged, tap, 10 mm) and remove the sensor cover.
To Next Page
