Xerox WorkCentre 3345 Service Manual

Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-90
Sensors and Switches
Out-bin Full Sensor
Parts List 1.1 Phaser 3330 Top Cover or Parts List 6.2 WorkCentre 3335/3345 Middle
Cover
WARNING: Do not perform repair activities with the power on or electrical power supplied to the
machine. The machine could activate and cause serious personal injury when the power is on or
electrical power is supplied.
1. Do steps 1-4 in the Preparation section (page 4-3).
2. Undock the printer from the optional Tray 2 Base. (page 4-8).
3. Remove the Front Door (page 4-13).
4. Remove the Scanner Assembly, WorkCentre 3335/3345 only, (page 4-103).
5. Remove the Left Cover, (page 4-15).
6. Remove the Top Cover, Phaser 3330 only, (page 4-18).
7. Remove the Lower Middle Cover, WorkCentre 3335/3345 only, (page 4-25).
8. Unplug the Out-bin Full Sensor P/J39 connector and remove the sensor (Parts List 1.1 Phaser 3330
Top Cover, PL 1.1.9) or (Parts List 6.2 WorkCentre 3335/3345 Middle Cover, PL 6.2.6).

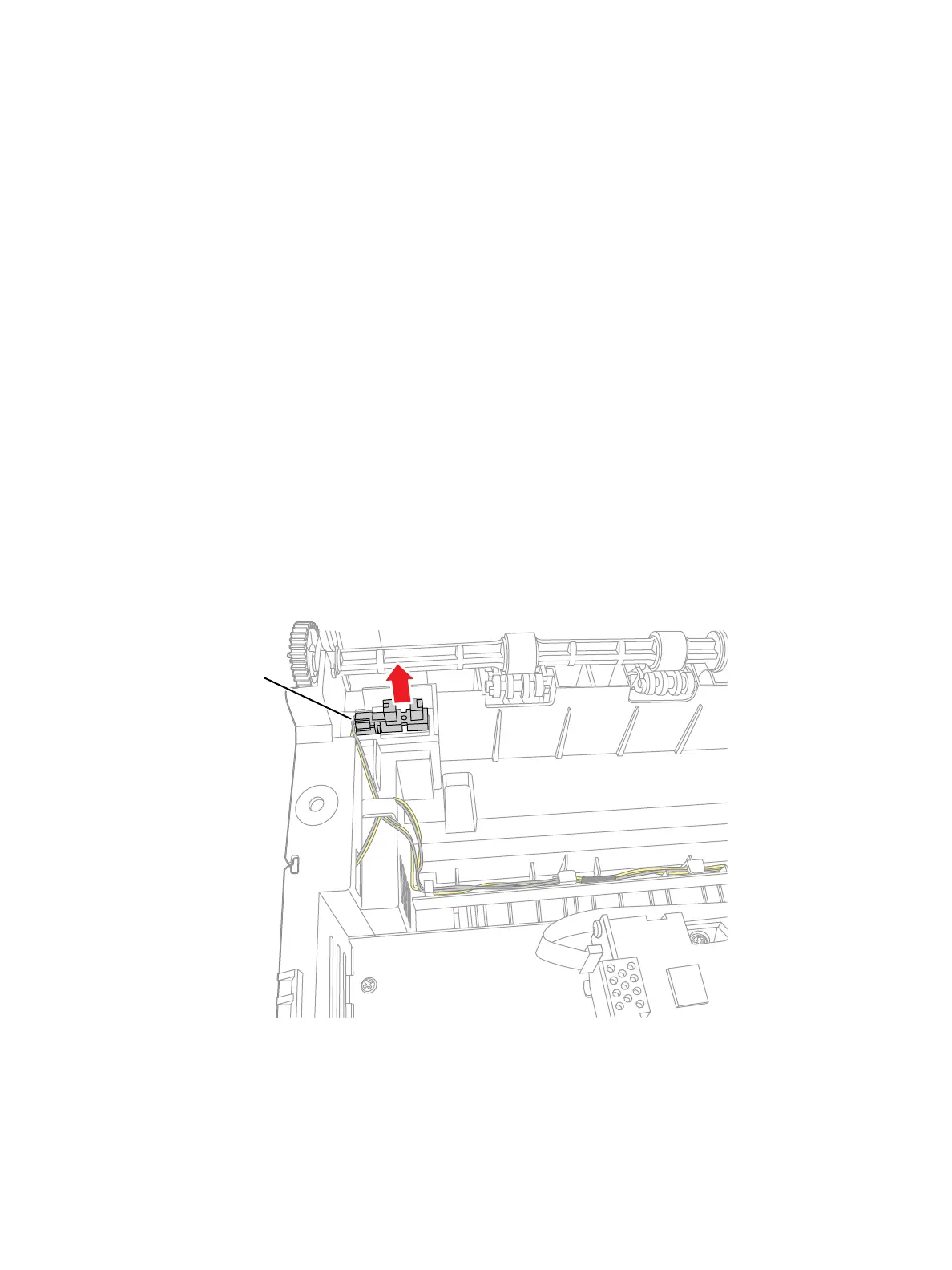

s3320-095
P/J39
