Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-55
Exit Roller Frame
Parts List 3.1A Frame (2 of 2)
WARNING: Do not perform repair activities with the power on or electrical power supplied to the
machine. The machine could activate and cause serious personal injury when the power is on or
electrical power is supplied.
1. Do steps 1-4 in the Preparation section (page 4-3).
2. Undock the printer from the optional Tray 2 Base. (page 4-8).
3. Remove the Fuser (page 4-49).
4. Remove the Top Cover (Phaser 3330 only, page 4-18).
5. Remove the Lower Middle Cover (WorkCentre 3335/3345 only, page 4-25).

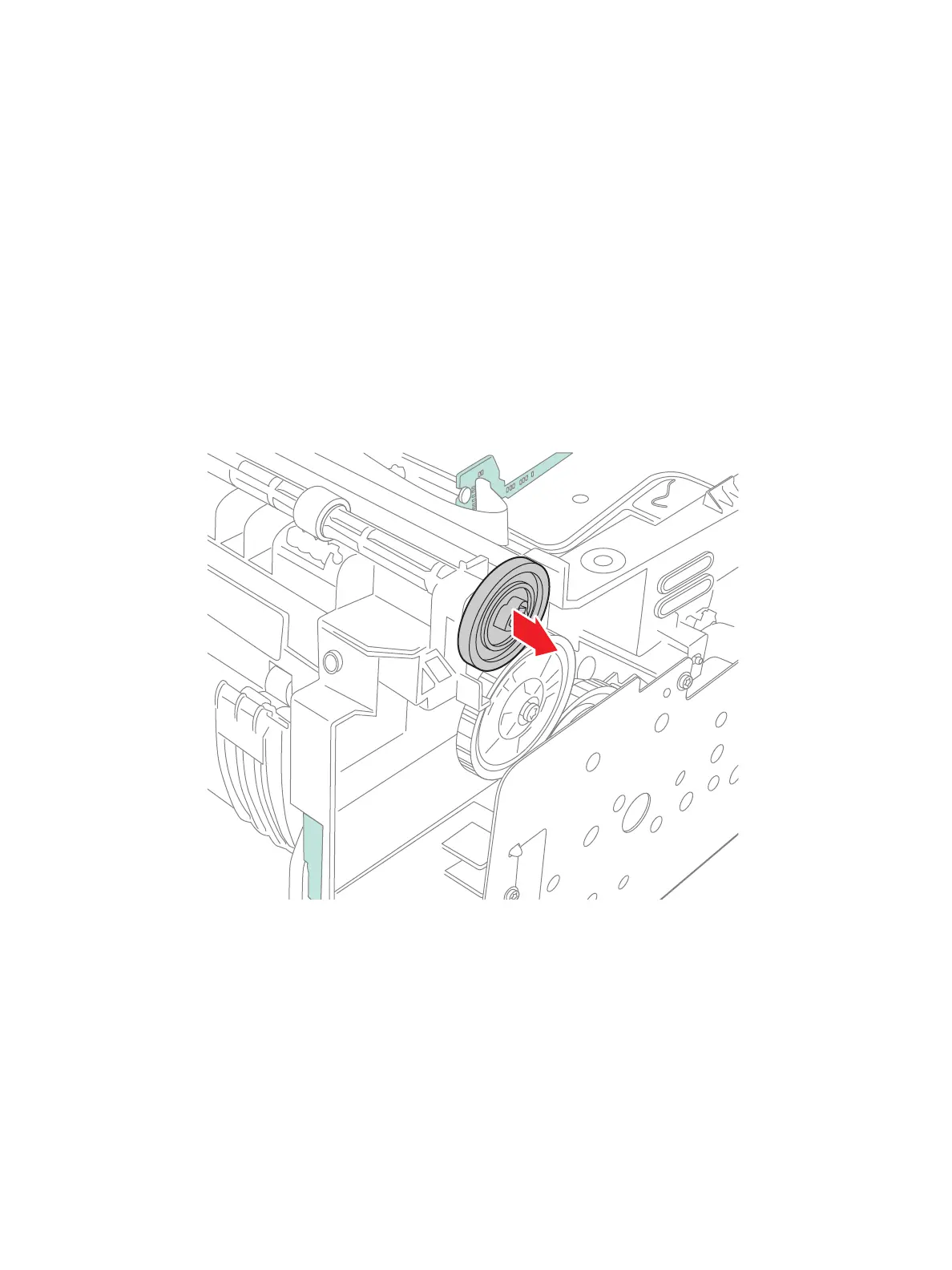

6. Press up on the tab of the 65 Exit Gear (Parts List 3.1A Frame (2 of 2), PL 3.1A.12) and remove the
gear.
To Next Page
