Xerox WorkCentre 3345 Service Manual

Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-118
DADF Pick Up Unit
Parts List 8.1 WorkCentre 3345 SCANNER and DADF

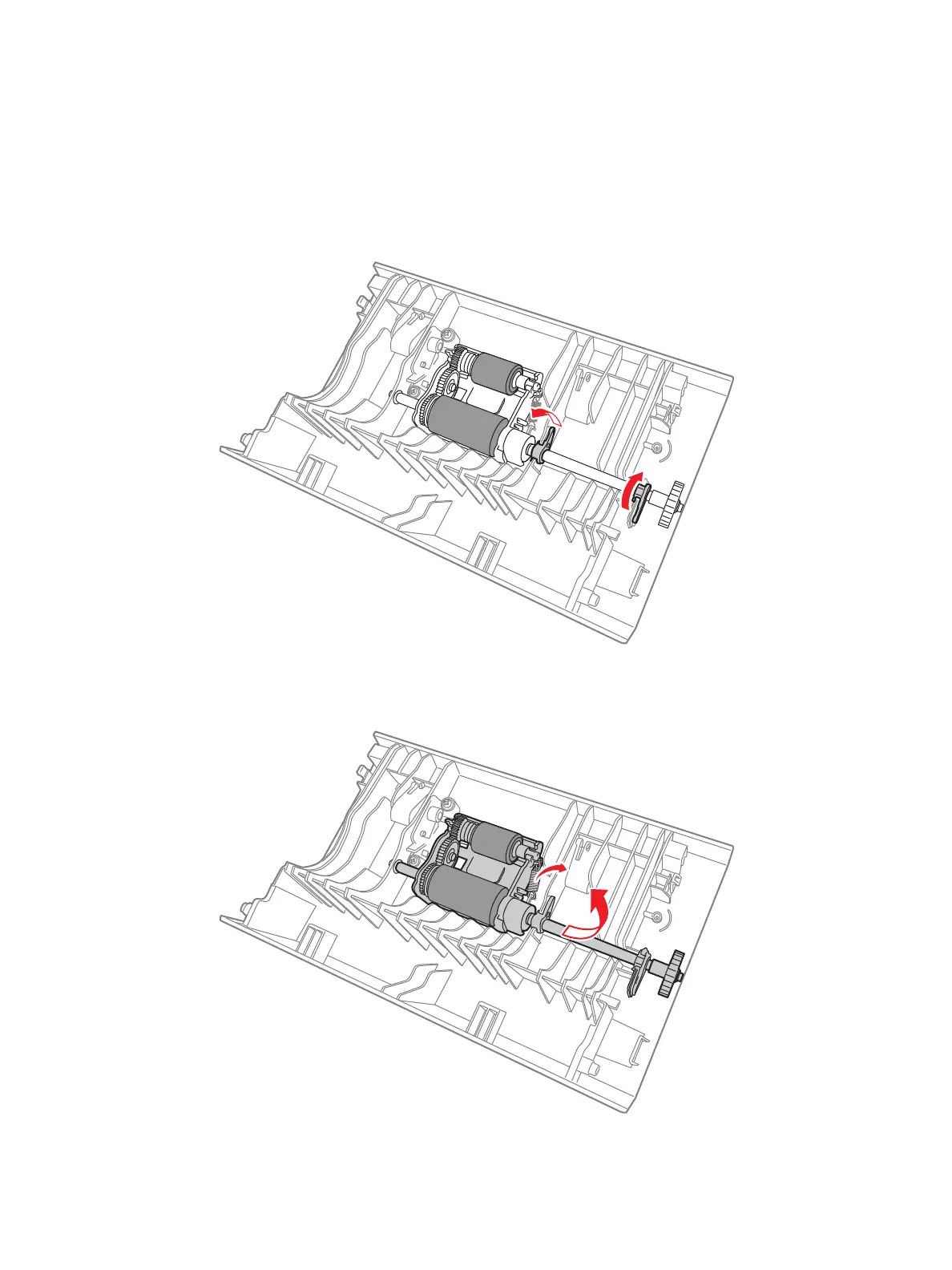

1. Remove the DADF Cover (page 4-117).
2. Release the shaft holders (2).
3. Remove the spring and then remove the DADF Pick Up Unit (Parts List 8.1A WorkCentre 3345
DADF, PL 8.1A.16).
s3320-130
s3320-131
