Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-132
DADF Feed Roller
Parts List 8.2 WorkCentre 3345 Lower DADF
1. Remove the DADF Drive (page 4-121)

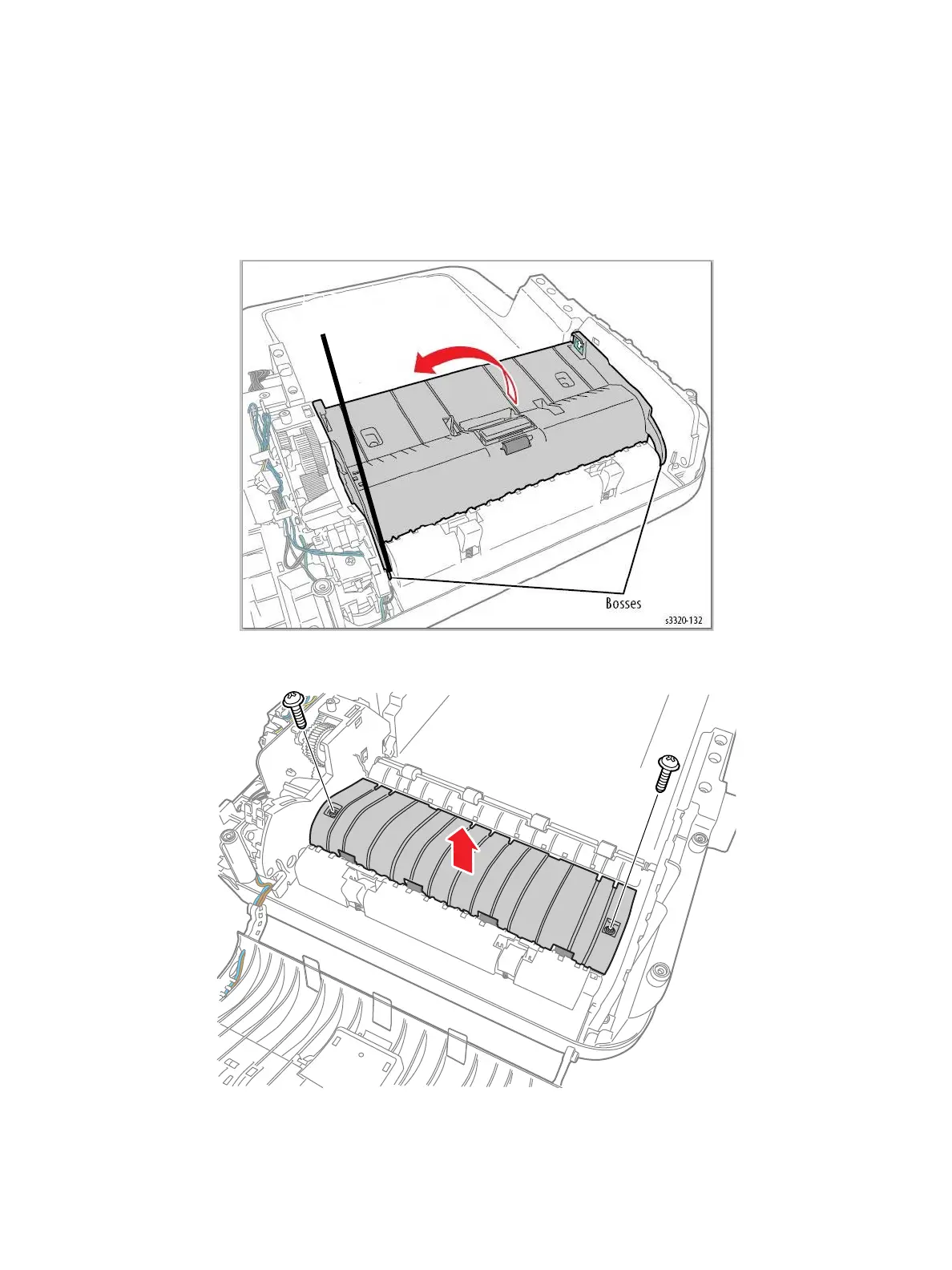

2. Disconnect the Upper ADF boss at the back side of the printer, and then tilt the Upper ADF up.
3. Remove 2 screws (silver, flanged, tap, 10 mm) and then remove the DADF Middle Cover.
Caution: Do not damage
wires in this area.
s3320-133
