Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-39
Feed Roller
Parts List 3.1A Frame (2 of 2)
WARNING: Do not perform repair activities with the power on or electrical power supplied to the
machine. The machine could activate and cause serious personal injury when the power is on or
electrical power is supplied.
1. Do steps 1-4 in the Preparation section (page 4-3).
2. Undock the printer from the optional Tray 2 Base. (page 4-8).
3. Remove the Front Door (page 4-13).
4. Remove the Top Cover (Phaser 3330 page 4-18 only.).
5. Remove the Left Cover (page 4-15)
6. Remove the Scanner (WorkCentre 3335/3345 only, page 4-103).
7. Remove the Upper Middle Cover (WorkCentre 3335/3345 only, page 4-23).
8. Remove the Main Drive Assembly (page 4-58).
9. Remove the Feed Drive Assembly (page 4-41).

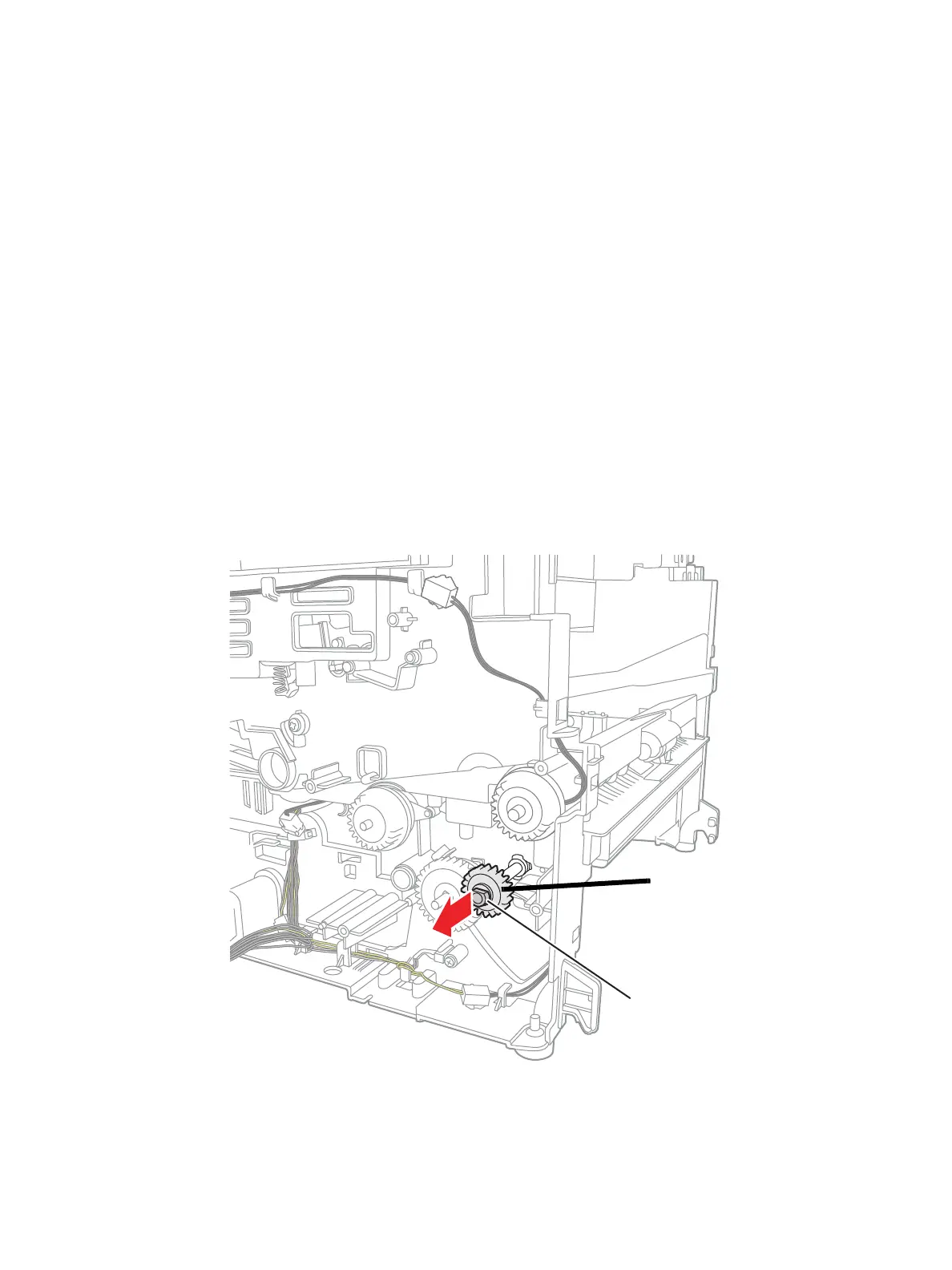

10. Remove the Bushing and Gear.
To Next Page
