Xerox WorkCentre 3345 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-153
Optional Tray 2 Pick Up_Forward Roller
Parts List 12.2 Optional Tray Cassette A/S Assy
1. Remove the cassette from the Optional Tray 2 feeder, and view from the bottom (or turn the
feeder over).

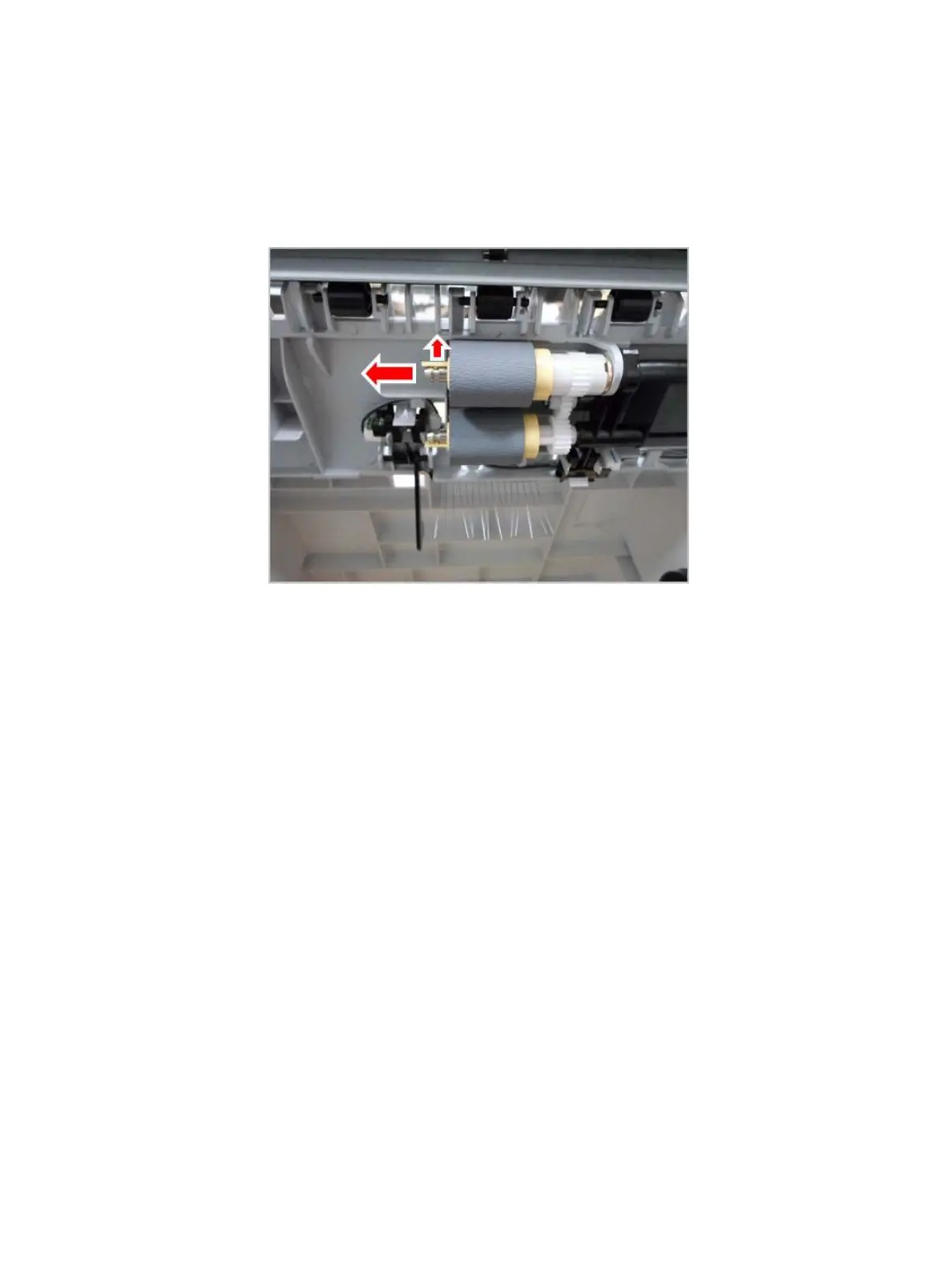

2. Release the pick-up / forward roller while pulling the small tap.
