Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-57
Exit Rollers
Parts List 3.4 Rear Frame
WARNING: Do not perform repair activities with the power on or electrical power supplied to the
machine. The machine could activate and cause serious personal injury when the power is on or
electrical power is supplied.
1. Do steps 1-4 in the Preparation section (page 4-3).
2. Undock the printer from the optional Tray 2 Base. (page 4-8).
3. Remove the Exit Roller Frame (page 4-55).

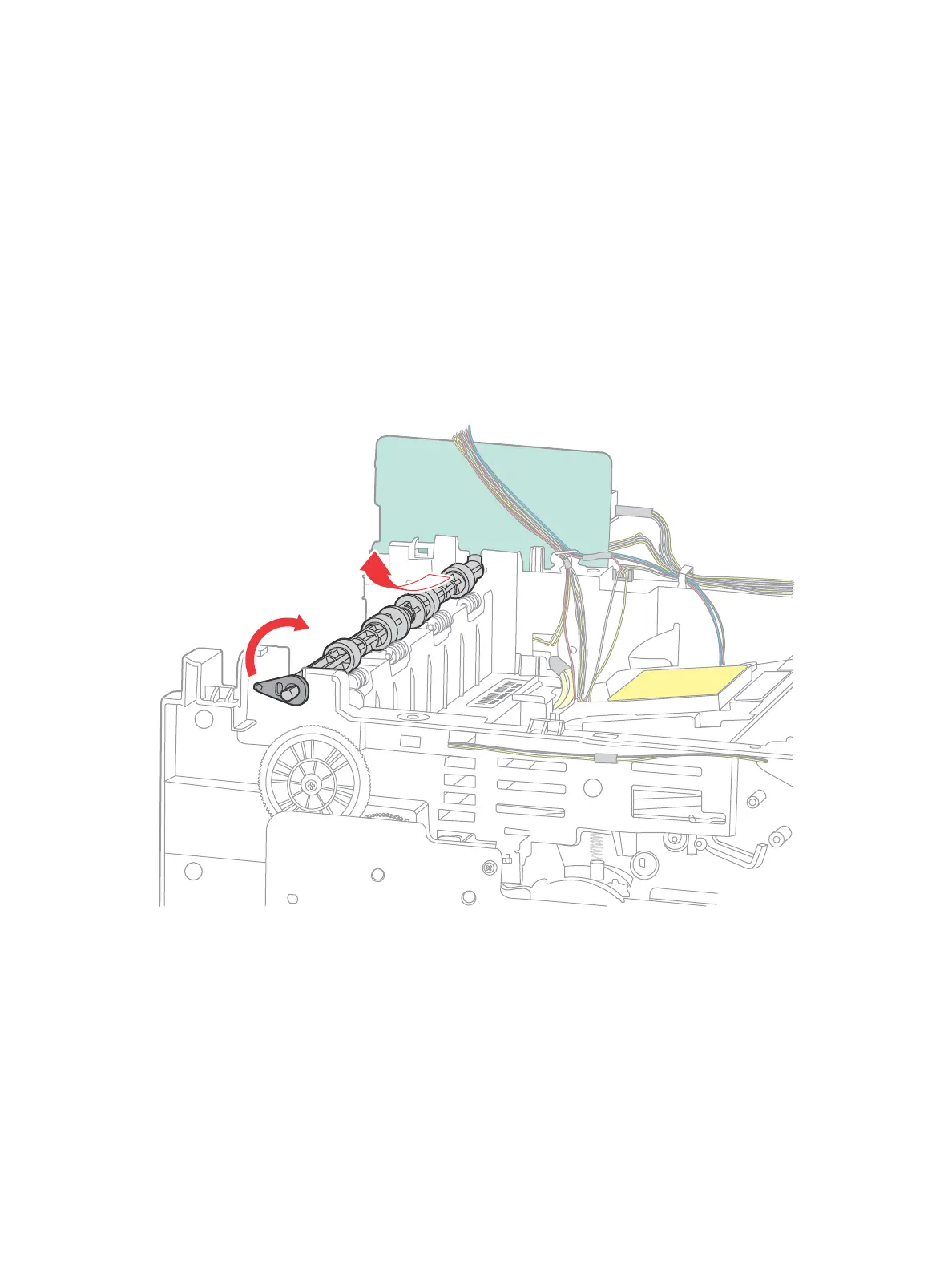

4. Slide the Exit Roller(s) (Parts List 3.4 Rear Frame, PL 3.4.7) off of the Exit Roller Frame (Parts List
3.1A Frame (2 of 2), PL 3.1A.34).
To Next Page
