Xerox WorkCentre 3345 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-103
WorkCentre 3335/3345 Scanner
Scanner Assembly (WorkCentre 3335/3345)
Parts List 7.1 WorkCentre 3335 SCANNER and ADF or Parts List 8.1 WorkCentre 3345
SCANNER and DADF
WARNING: Do not perform repair activities with the power on or electrical power supplied to the
machine. The machine could activate and cause serious personal injury when the power is on or
electrical power is supplied.
1. Do steps 1-4 in the Preparation section (page 4-3).
2. Undock the printer from the optional Tray 2 Base. (page 4-8).
3. Remove the Front Door (page 4-13).
4. Remove the Rear Door (page 4-13).
5. Remove the Left Cover (page 4-15).
6. Remove the Right Cover (page 4-17).
7. Remove the ADF/DADF Assembly. WorkCentre 3335 (page 4-138); or WorkCentre 3345
(page 4-116)

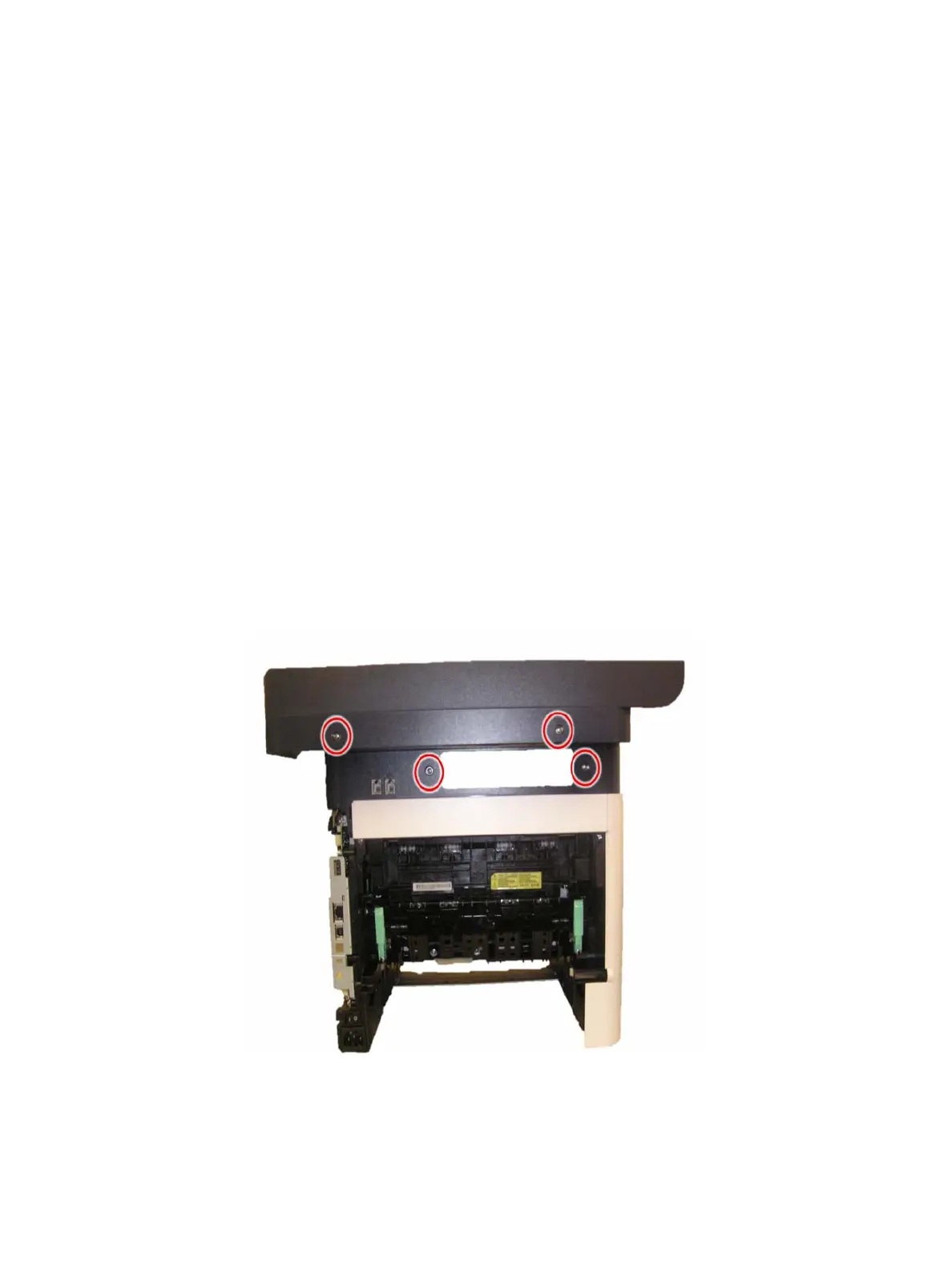

8. Remove 4 screws (silver, flanged, tap, 10 mm) at the rear.
