Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-111

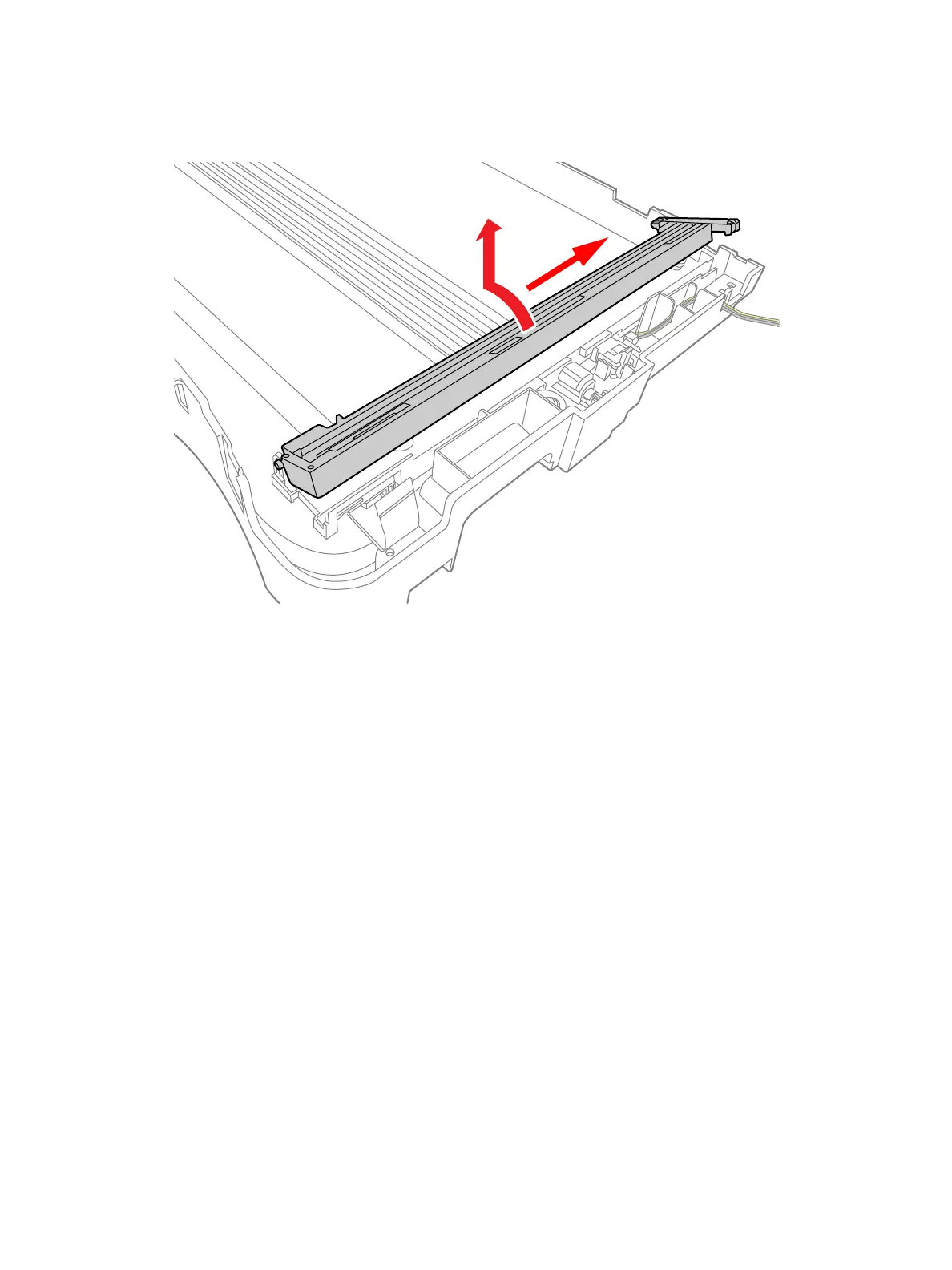

7. Rotate the Contact Image Sensor (Parts List 9.2 WorkCentre 3335/3345 Platen, PL 9.2.10) up and
slide to the right to remove it out of the CIS bracket as indicated in the illustration.
Scanner Scan Motor (WorkCentre 3335/3345)
Parts List 9.2 WorkCentre 3335/3345 Platen
WARNING: Do not perform repair activities with the power on or electrical power supplied to the
machine. The machine could activate and cause serious personal injury when the power is on or
electrical power is supplied.
1. Do steps 1-4 in the Preparation section (page 4-3).
2. Remove the DADF/ADF, WorkCentre 3345 (page 4-116); WorkCentre 3335 (page 4-138).
3. Remove the Control Panel (page 4-73).
4. Remove the A4 Middle Platen (page 4-107).
To Next Page
