Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-32
Bypass Pick Up Assembly
Parts List 3.1A Frame (2 of 2)
WARNING: Do not perform repair activities with the power on or electrical power supplied to the
machine. The machine could activate and cause serious personal injury when the power is on or
electrical power is supplied.
1. Do steps 1-4 in the Preparation section (page 4-3)
2. Undock the printer from the optional Tray 2. (page 4-8)
3. Remove the Right Side Cover (page 4-17)
4. Remove the Main Drive Assembly (page 4-58)
5. Remove the Feeder Drive Assembly (page 4-41)

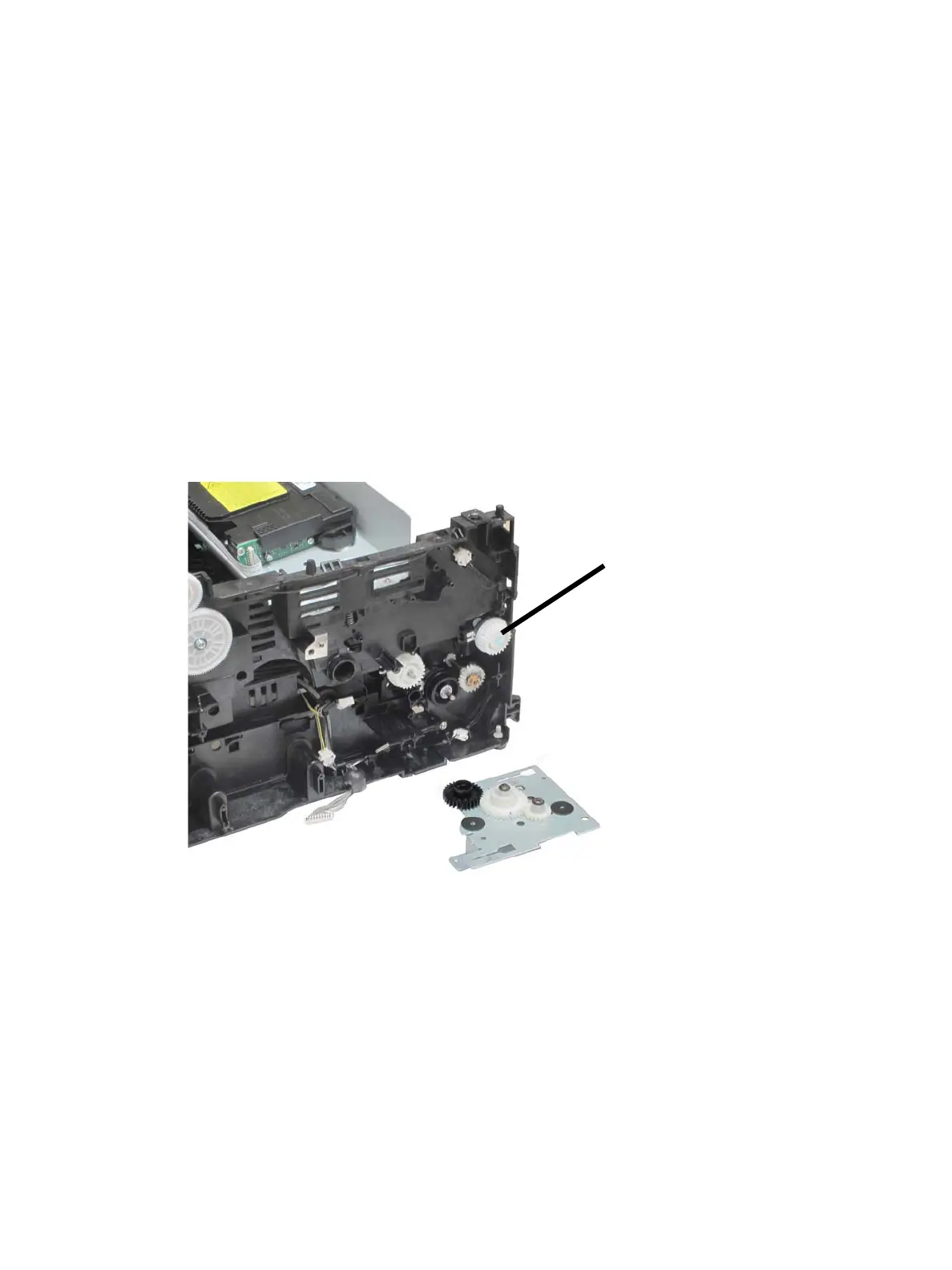

Note: In the next step, the Clutch will remain connected. There is no need to disconnect it. Note
the position of the engagement tooth on the Clutch.
6. Carefully remove the Clutch and let it hang down.
To Next Page
