Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-49
Fuser
Parts List 1.0 Phaser 3330 Main or Parts List 6.1 WorkCentre 3335/3345 Main
WARNING: Do not handle the fuser components until they have cooled. Some fuser
components operate at hot temperatures and can produce serious personal injury if touched.
WARNING: Do not perform repair activities with the power on or electrical power supplied to
the machine. The machine could activate and cause serious personal injury when the power is
on or electrical power is supplied.
1. Remove the Duplex Assembly (page 4-7).
2. Remove the Rear Door (page 4-13).

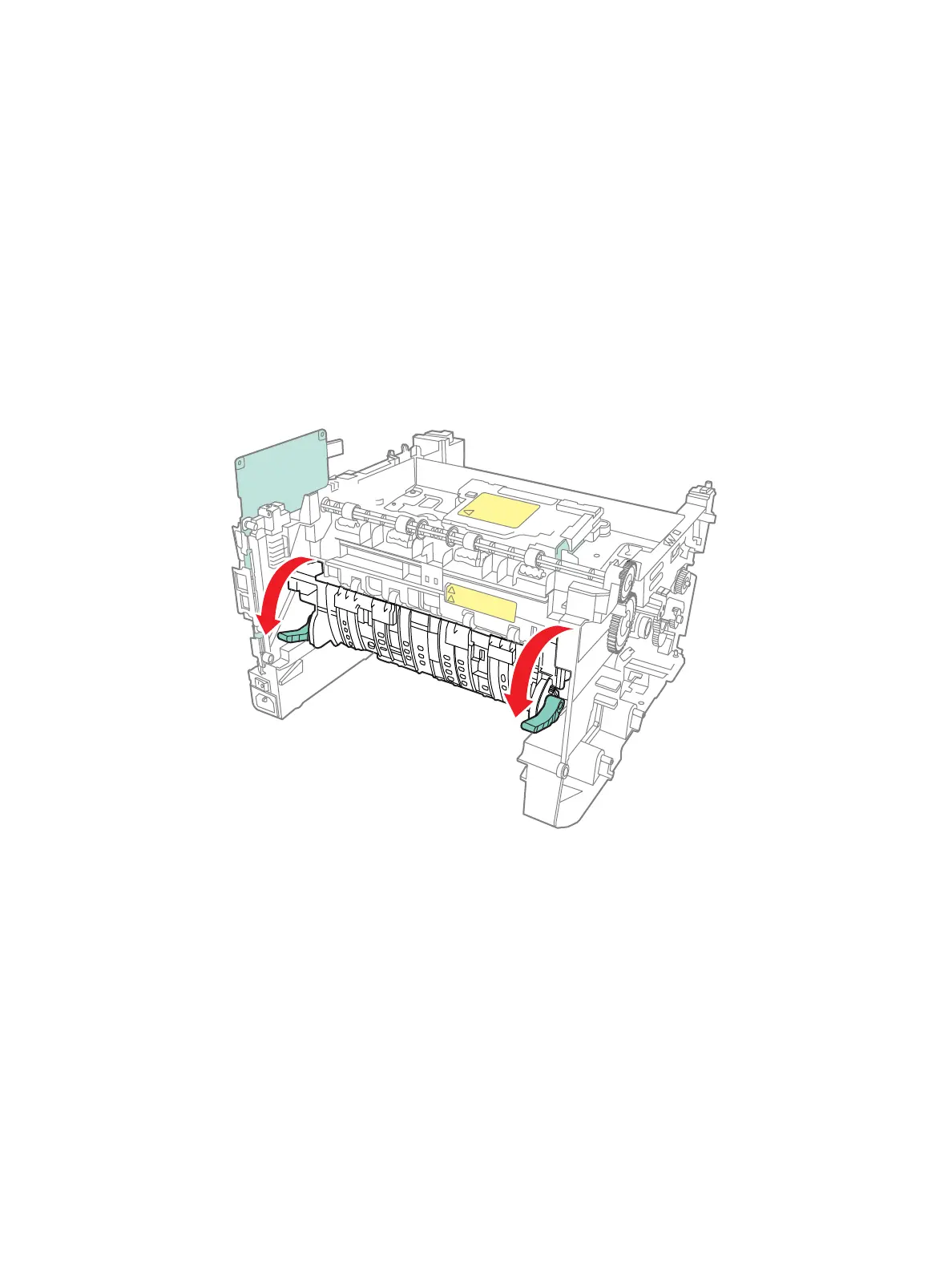

3. Open the Fuser levers and push the Rear Frame levers down.
