Yaesu FT-100D User Manual

CAT System
Programming

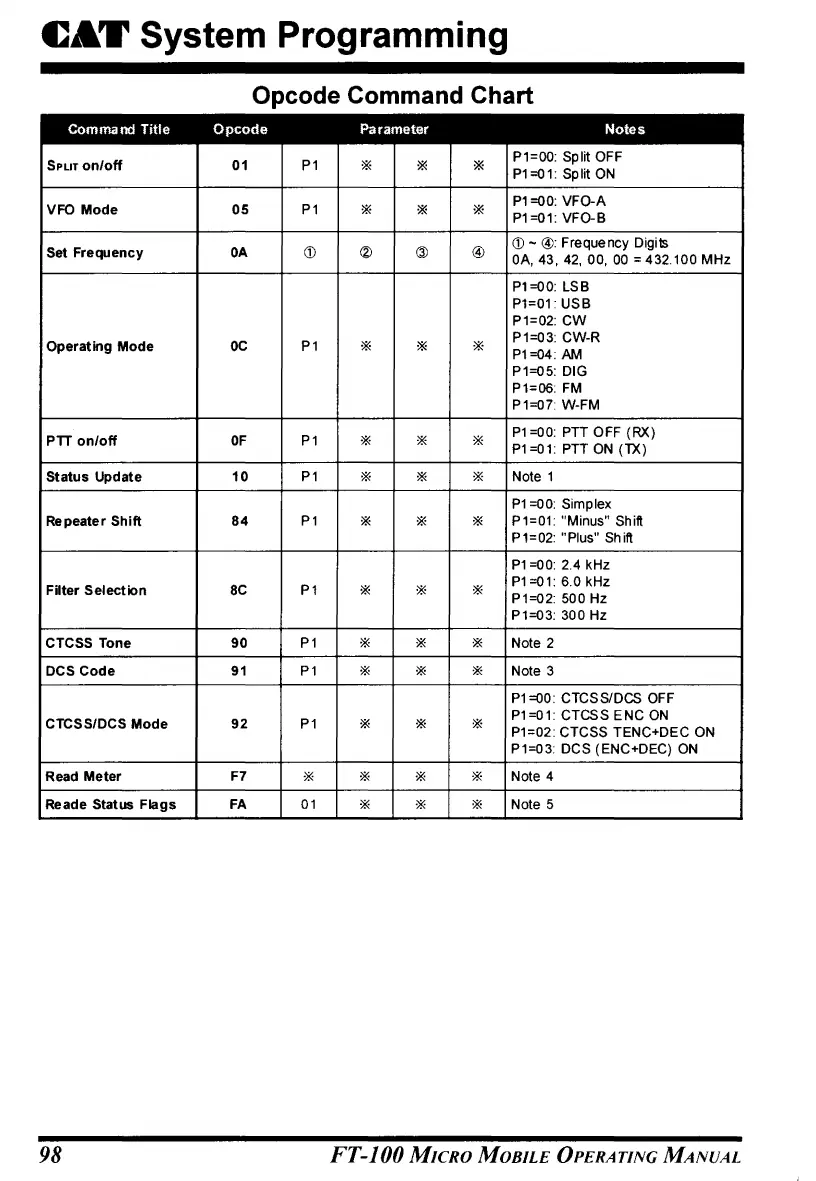

Opcode Command Chart
SPLIT on/off
01 P1
* * *
P1=00: Split OFF
P1 =01: Split ON
VFO Mode
05
P1
* * *
P1 =00: VFO-A
P1=01: VFO-B
Set Frequency
OA
CD ~
crJ
@
CD - @: Frequency Digi1s
OA, 43, 42, 00, 00 = 432.100 MHz
P1=OO: LSB
P1=01: USB
P1=02: CW
Operating Mode
OC
P1
* * *
P1=03: CW-R
P1=04:
AM
P1=05: DIG
P1=06:
FM
P1=07 W-FM
PTT
on/off
OF
P1
*
* *
P1 =00: PTT OFF (RX)
P1 =01: PTT ON (TX)
P1 =00: Simplex
Repeater Shift 84 P1
* * *
P1=01: "Minus" Shift
P 1=02: "Plus" Sh ift
P1 =00: 2.4 kHz
Filter Selection
8C
P1
* * *
P1 =01: 6.0 kHz
P1=02:
500 Hz
P1=03:
300 Hz
98
FT-IOO MICRO MOBILE OPERATING MANUAL
