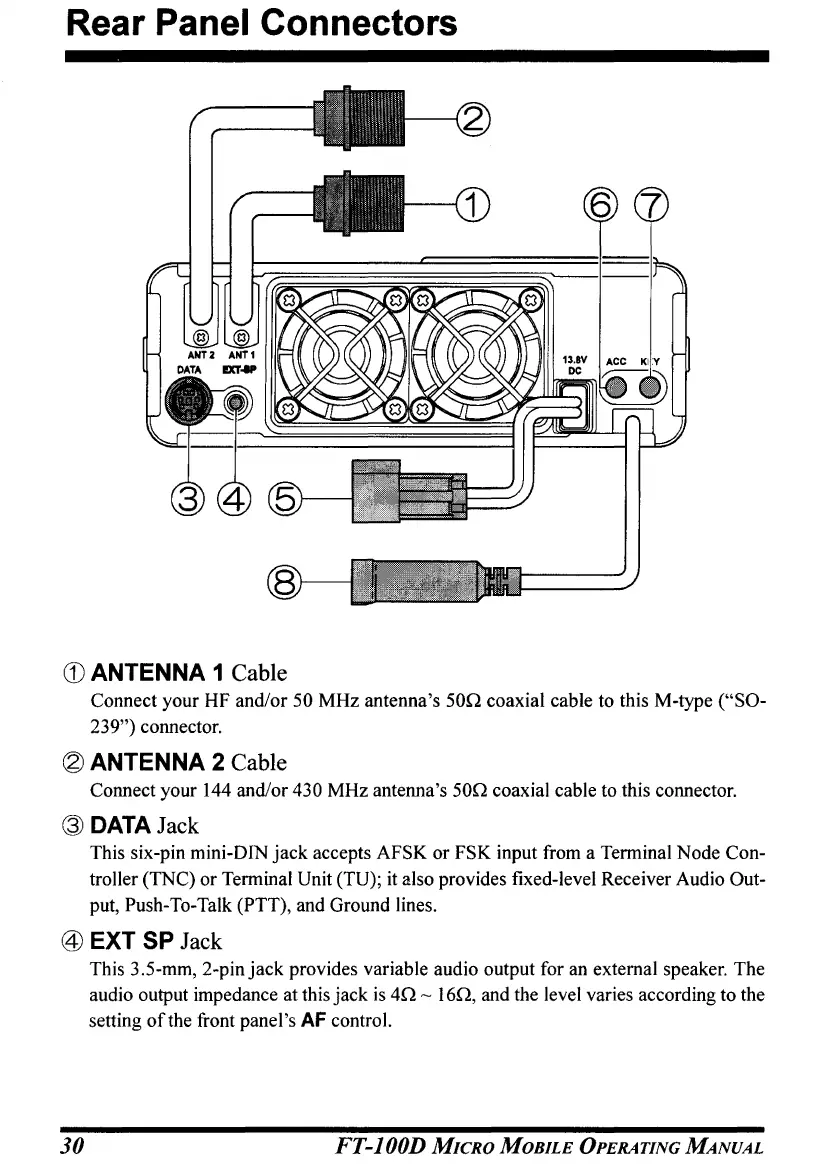

Rear Panel Connectors
CD
ANTENNA 1 Cable
Connect your HF and/or 50 MHz antenna's
5012
coaxial cable to this M-type ("SO-
239") connector.
~
ANTENNA 2 Cable
Connect your 144 and/or 430 MHz antenna's
5012
coaxial cable to this connector.
®
DATA
Jack
This six-pin mini-DIN
jack
accepts AFSK or FSK input from a Terminal Node Con-
troller (TNC) or Terminal Unit (TU);
it
also provides fixed-level Receiver Audio Out-
put, Push-To-Talk (PTT), and Ground lines.
@EXT
SP Jack
30
This 3.5-mm,
2-pinjack
provides variable audio output for an external speaker. The
audio output impedance at this jack
is
412
~
1612,
and the level varies according to the
setting
of
the front panel's
AF
control.
FT-100D
MICRO
MOBILE
OPERATING
MANUAL
