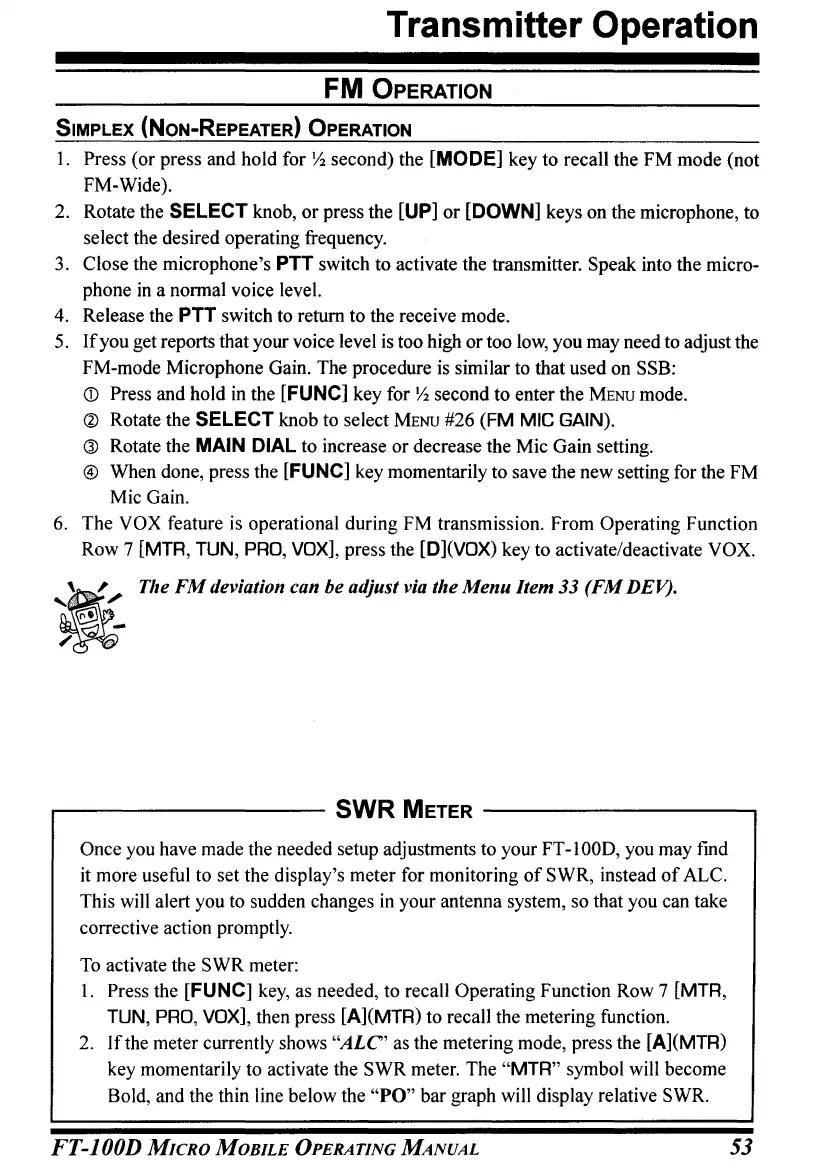

Transmitter Operation
FM OPERATION
SIMPLEX (NON-REPEATER) OPERATION
1. Press (or press and hold for ~ second) the [MODE] key to recall the FM mode (not
FM-Wide).
2. Rotate the SELECT knob, or press the [UP] or [DOWN] keys on the microphone, to
select the desired operating frequency.
3. Close the microphone's PTT switch to activate the transmitter. Speak into the micro-
phone
in a normal voice level.
4. Release the PTT switch to return to the receive mode.
5.
If you get reports that your voice level is too high or too low, you may need to adjust the
FM-mode Microphone Gain. The procedure
is similar to that used on SSB:
CD Press and hold in the [FUNC] key for ~ second to enter the MENU mode.
@ Rotate the SELECT knob to select MENU #26 (FM MIC GAIN).
Q) Rotate the MAIN DIAL to increase or decrease the Mic Gain setting.
@) When done, press the [FUNC] key momentarily to save the new setting for the FM
Mic Gain.
6. The
VOX feature is operational during FM transmission. From Operating Function
Row
7 [MTR, TUN, PRO, VOX], press the [D](VOX) key to activate/deactivate VOX.
~ The FM deviation can be adjust via the Menu Item 33 (FM DEVj,
.....---------- SWR METER -----------,
Once you have made the needed setup adjustments to your FT -lOOD, you may fmd
it more useful to set the display's meter for monitoring
of SWR, instead of ALe.
This will alert you to sudden changes in your antenna system, so that you can take
corrective action promptly.
To activate the SWR meter:
l. Press the [FUNC] key, as needed, to recall Operating Function Row 7 [MTR,
TUN,
PRO, VOX], then press [A](MTR) to recall the metering function.
2. Ifthe meter currently shows "ALC' as the metering mode, press the [A](MTR)
key momentarily to activate the SWR meter. The "MTR" symbol will become
Bold, and the thin line below the
"PO" bar graph will display relative SWR.
FT-JOOD MICRO MOBILE OPERATING MANUAL
53
