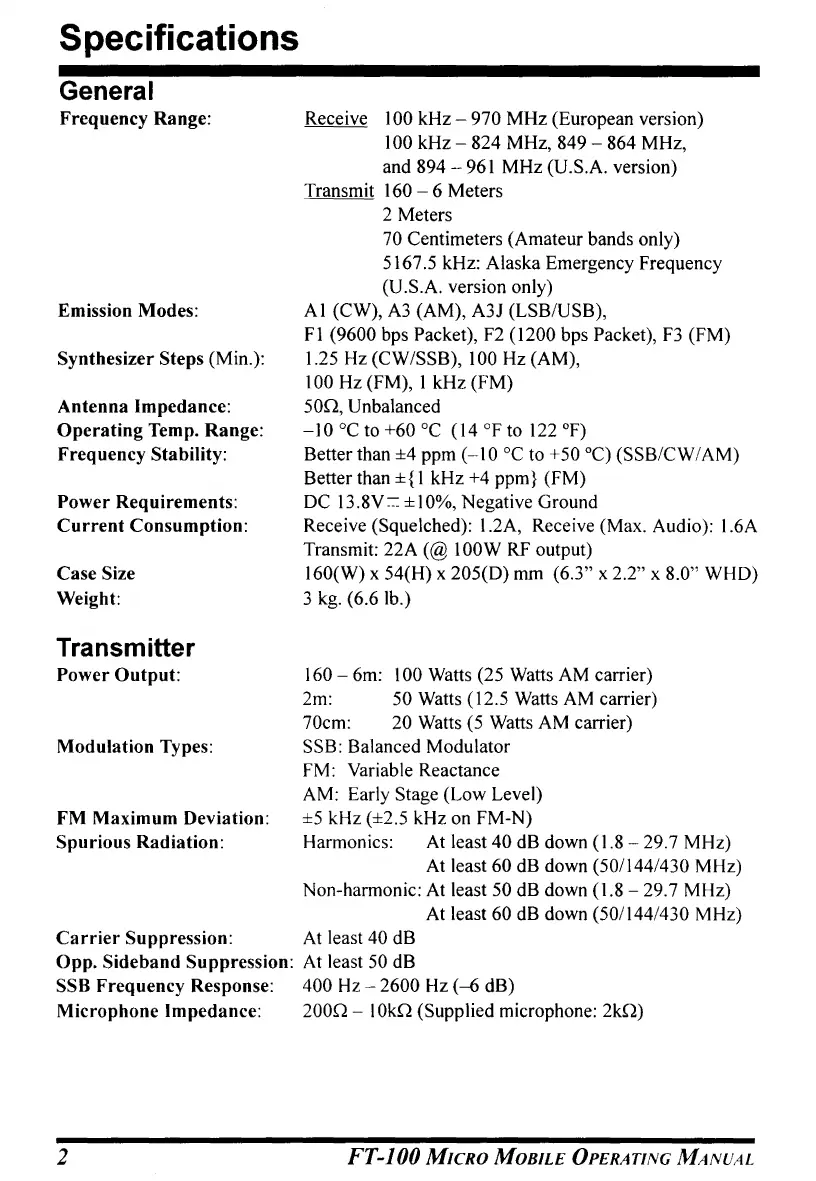

Yaesu FT-100D User Manual

Specifications
General
Frequency Range:
Emission Modes:
Synthesizer Steps (Min.):
Antenna Impedance:
Operating Temp. Range:
Frequency Stability:
Power Requirements:
Current Consumption:
Case Size
Weight:
Transmitter
Power Output:
Modulation Types:
Receive 100 kHz - 970 MHz (European version)
100 kHz - 824 MHz, 849 - 864 MHz,
and 894 - 961 MHz
(U.S.A. version)
Transmit
160 - 6 Meters
2 Meters
70 Centimeters (Amateur bands only)
5167.5 kHz: Alaska Emergency Frequency
(U.S.A. version only)
Al (CW), A3 (AM), A3J (LSBfUSB),
FI (9600 bps Packet), F2 (1200 bps Packet), F3 (FM)
1.25 Hz
(CW/SSB), 100 Hz (AM),
100 Hz (FM), 1 kHz (FM)
500, Unbalanced
-10 °C to +60 °C (14 of to 122 OF)
Better than ±4 ppm (-10°C to +50 0c) (SSB/CW lAM)
Better than ±{ 1 kHz +4 ppm} (FM)
DC
13.8V= ±IO%, Negative Ground
Receive (Squelched): 1.2A, Receive (Max. Audio): 1.6A
Transmit: 22A
(@ lOOW RF output)
160(W) x 54(H) x 205(0) mm (6.3" x 2.2" x 8.0" WHO)
3 kg. (6.6 lb.)
160 - 6m: 100 Watts (25 Watts AM carrier)
2m:
50 Watts (12.5 Watts AM carrier)
70cm: 20 Watts (5 Watts AM carrier)
SSB: Balanced Modulator
FM:
Variable Reactance
AM: Early
Stage (Low Level)
FM Maximum Deviation: ±5 kHz (±2.5 kHz on FM-N)
Spurious Radiation: Harmonics: At least
40 dB down (1.8 - 29.7 MHz)
At least
60 dB down (50/144/430 MHz)
Non-harmonic: At least
50 dB down (1.8 - 29.7 MHz)
At least
60 dB down (5011441430 MHz)
Carrier Suppression: At least 40 dB
Opp. Sideband Suppression: At least 50 dB
SSB Frequency Response: 400 Hz - 2600 Hz (--6 dB)
Microphone Impedance:
2000 - 10kO (Supplied microphone: 2kn)
2
FT-100 MICRO MOBILE OPERATING MANUAL

Yaesu FT-100D Specifications

General

Product type	Portable CB radio
Product color	Black
Housing material	-
Display type	LCD
Output power	100 W
AM band range	5.2 - 18 kHz
FM band range	15 - 25 MHz
Frequency range	0.1 - 961 MHz
Channels quantity	50 channels
Compatible products	ATAS-120\\tActive-Tuning Antenna System FC-20\\tAutomatic Antenna Tuner YSK-100\\tSeparation Kit XF-117CN\\t300Hz CW Filter MH-36B6JS\\tDTMF Microphone FTS-27\\tCTCSS Tone Decoder Unit
Microphone included	Yes
Input voltage	13.8 V

Weight and Dimensions

Depth	205 mm
Width	160 mm
Height	54 mm
