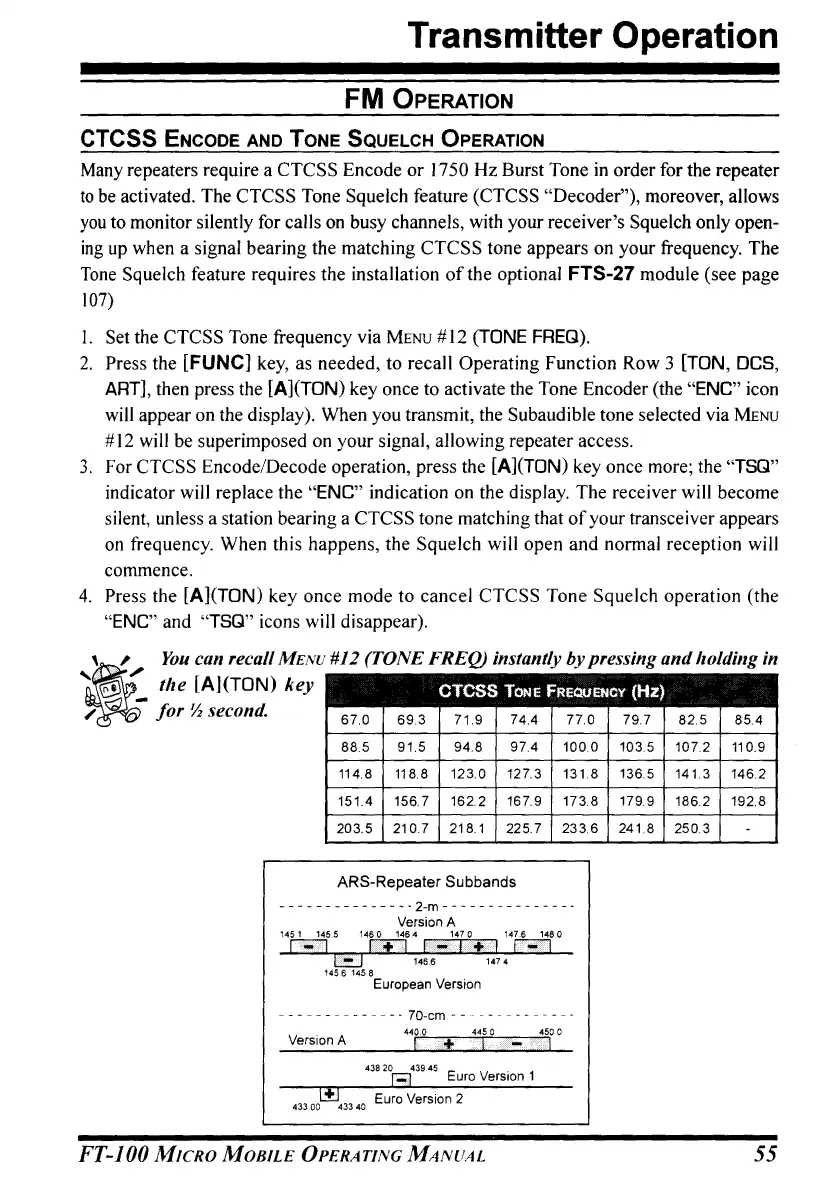

Yaesu FT-100D User Manual

Transmitter Operation
FM OPERATION
CTess ENCODE AND TONE SQUELCH OPERATION
Many repeaters require a CTCSS Encode or 1750 Hz Burst Tone in order for the repeater
to be activated. The CTCSS Tone Squelch feature (CTCSS "Decoder"), moreover, allows
you to monitor silently for calls on busy channels, with your receiver's Squelch only open-
ing up when a signal bearing the matching CTCSS tone appears on your frequency. The
Tone Squelch feature requires the installation of the optional FTS-27 module (see page
107)
I. Set the CTCSS Tone frequency via MENU #12 (TONE FREQ).
2. Press the [FUNC] key, as needed, to recall Operating Function Row 3 [TON, DCS,
ART], then press the [A](TON) key once to activate the Tone Encoder (the "ENC" icon
will appear on the display). When you transmit, the Subaudible tone selected via
MENU
#12 will be superimposed on your signal, allowing repeater access.
3. For CTCSS Encode/Decode operation, press the [A](TON) key once more; the "TSQ"
indicator will replace the "ENC" indication on the display. The receiver will become
silent, unless a station bearing a CTCSS tone matching that
of your transceiver appears
on frequency. When this happens, the Squelch will open and normal reception will
commence.
4. Press the [A](TON) key once mode to cancel CTCSS Tone Squelch operation (the
"ENC" and "TSQ" icons will disappear).
It
' .. ' / You can recall MENU #12 (TONE FREQ) insta. ntly by pressing and holding in
~ the [A)(TON) key .
/ <::;;2 - for ~ second.
o • • •
ARS-Repeater Subbands
- - - - - - - - - - - - - - . 2-m - - - - - - - - - - - - - - .
Version A
1451 1455 1460 146.4 1470 147.6 1480
c=:J CTl 1 - I +1 [?']
G 146.6 1474
14561458
European Version
- - - - - - 70-em - -
Version A
440,0 445 0 4500
1 + 1
433 00l±0J.,3 40 Euro Version 2
43820 43945
R Euro Version 1
FT-JOO MICRO MOBILE OPERATING MANUAL 55
