Yaesu FT-100D User Manual

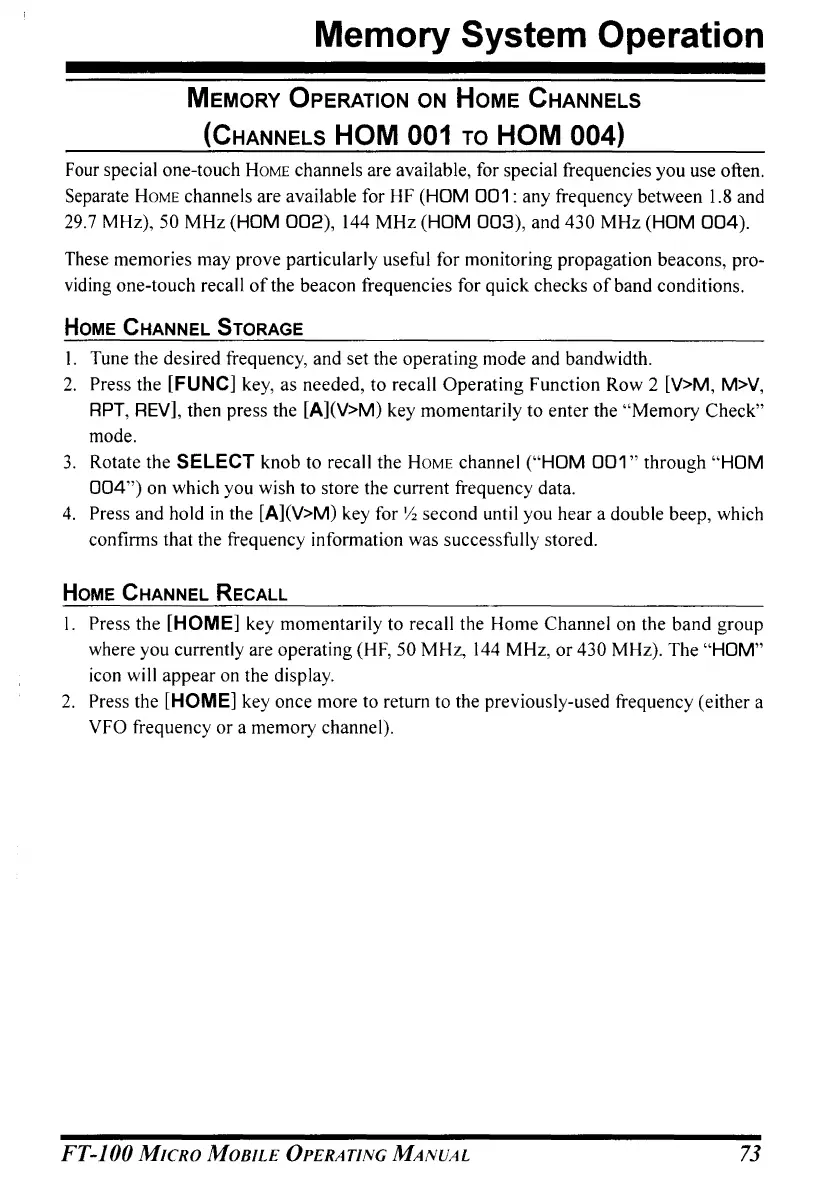

Memory System Operation
MEMORY OPERATION ON HOME CHANNELS
(CHANNELS
HOM 001 TO HOM 004)
Four special one-touch HOME channels are available, for special frequencies you use often.
Separate
HOME channels are available for HF (HOM 001: any frequency between 1.8 and
29.7 MHz), 50 MHz (HOM 002),144 MHz (HOM 003), and 430 MHz (HOM 004).
These memories may prove particularly useful for monitoring propagation beacons, pro-
viding one-touch recall
of the beacon frequencies for quick checks of band conditions.
HOME CHANNEL STORAGE
I. Tune the desired frequency, and set the operating mode and bandwidth.
2. Press the [FUNC] key, as needed, to recall Operating Function Row 2 [V>M, M>V,
RPT, REV], then press the [A](V>M) key momentarily to enter the "Memory Check"
mode.
3. Rotate the SELECT knob to recall the HOME channel ("HOM 001" through "HOM
004") on which you wish to store the current frequency data.
4. Press and hold in the [A](V>M) key for Y, second until you hear a double beep, which
confirms that the frequency information was successfully stored.
HOME CHANNEL RECALL
I. Press the [HOME] key momentarily to recall the Home Channel on the band group
where you currently are operating (HF,
50 MHz, 144 MHz, or 430 MHz). The "HOM"
icon will appear on the display.
2. Press the [HOME] key once more to return to the previously-used frequency (either a
VFO frequency or a memory channel).
FT-100 MICRO MOBILE OPERATING MANUAL
73

Yaesu FT-100D Specifications

General

Product type	Portable CB radio
Product color	Black
Housing material	-
Display type	LCD
Output power	100 W
AM band range	5.2 - 18 kHz
FM band range	15 - 25 MHz
Frequency range	0.1 - 961 MHz
Channels quantity	50 channels
Compatible products	ATAS-120\\tActive-Tuning Antenna System FC-20\\tAutomatic Antenna Tuner YSK-100\\tSeparation Kit XF-117CN\\t300Hz CW Filter MH-36B6JS\\tDTMF Microphone FTS-27\\tCTCSS Tone Decoder Unit
Microphone included	Yes
Input voltage	13.8 V

Weight and Dimensions

Depth	205 mm
Width	160 mm
Height	54 mm
