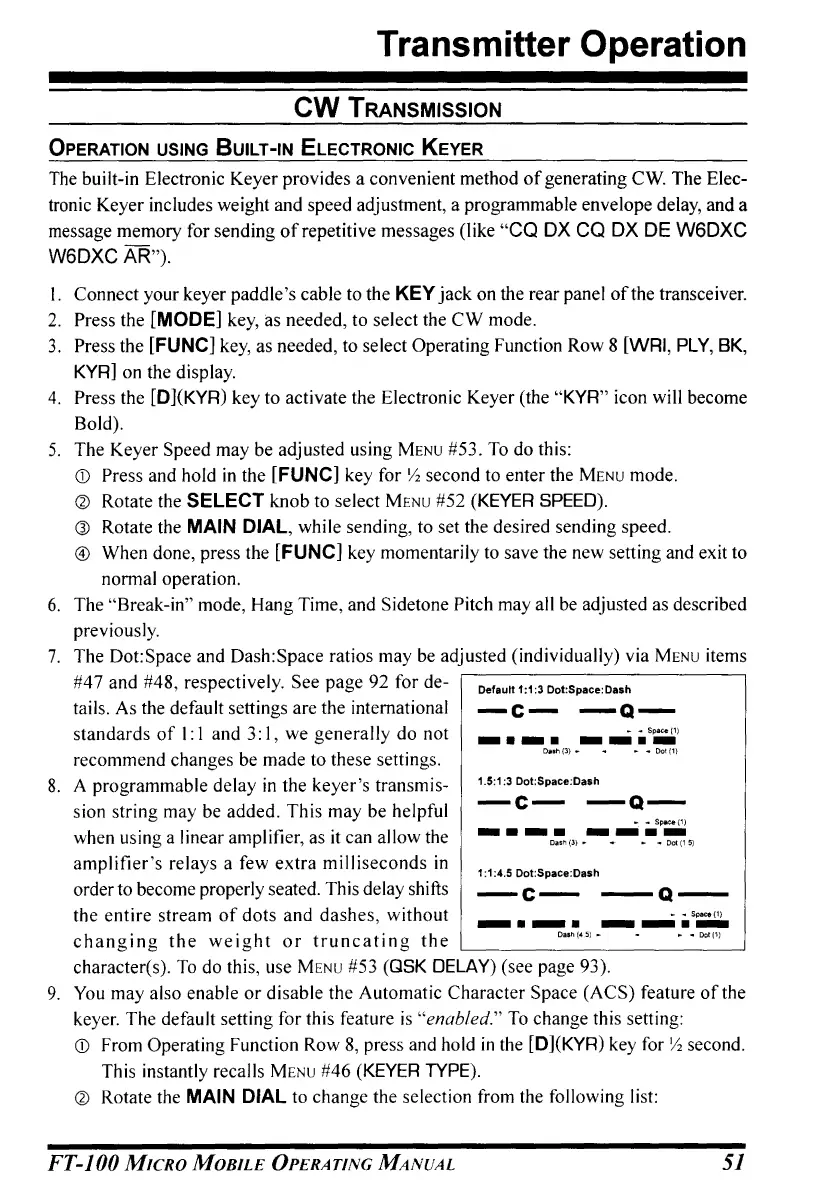

Transmitter Operation
CW TRANSMISSION
OPERATION
USING
BUILT-IN ELECTRONIC KEYER
The
built-in Electronic Keyer provides a convenient method
of
generating
cwo
The Elec-
tronic Keyer includes weight and speed adjustment, a programmable envelope delay, and a
message
memory for sending
of
repetitive messages (like "CQ
OX
CQ
OX
DE
W60XC
W60XCAR").
I.
Connect your keyer paddle's cable to the KEY jack on the rear panel
of
the transceiver.
2.
Press the [MODE] key, as needed, to select the CW mode.
3.
Press the [FUNC] key, as needed, to select Operating Function Row 8 [WRI,
PLY,
BK,
KYR] on the display.
4.
Press the [D](KYR) key to activate the Electronic Keyer (the
"KYR"
icon will become
Bold).
5.
The Keyer Speed may be adjusted using
MENU
#53.
To
do this:
CD
Press and hold
in
the [FUNC] key for
Y:z
second to enter the
MENU
mode.
@ Rotate the SELECT knob to select
MENU
#52 (KEYER SPEED).
@ Rotate the MAIN DIAL, while sending, to set the desired sending speed.
@)
When done, press the [FUNC] key momentarily to save the new setting and exit to
nonnal operation.
6.
The "Break-in" mode, Hang Time, and Sidetone Pitch may all
be
adjusted as described
previously.
7.
The
DotSpace
and Dash:Space ratios may be adjusted (individually) via
MENU
items
#47 and #48, respectively. See page 92 for de-
0010ulll:l:30ol:Spaco:0
••
h
tails. As the default settings are the international
standards
of
I: I and 3: I, we generally do not
recommend changes be made to these settings.
-c-
-Q-
.....
SpKe(')
----
----
DaBh(3)
..
•
.....
Dot(,}
1.5:1:30ol:Space:Oash
-c-
-Q-
....
s,.ce"l
----
----
Daln(3)
..
..
...
001(15)
1:1
:4.5 Ool:Space:Oash
8.
A programmable delay
in
the keyer's transmis-
sion string may be added. This may be helpful
when using a linear amplifier, as
it
can allow the
amplifier's relays a few extra milliseconds
in
order to become properly seated. This delay shifts
the entire stream
of
dots and dashes, without
-C-
-Q-
....
Space(1)
----
----
changing
the
weight
or
truncating
the
'--
____
°_."_1°_'.
____
'_'
0_"1_"--,
character(s).
To
do this, use
MENU
#53 (QSK DELAY) (see page 93).
9.
You
may also enable
or
disable the Automatic Character Space (ACS) feature
of
the
keyer. The default setting for this feature
is
"enabled."
To
change this setting:
CD
From Operating Function Row
8,
press and hold
in
the [D](KYR) key for
Y2
second.
This instantly recalls
MENU
#46 (KEYER TYPE).
@ Rotate the MAIN DIAL to change the selection from the following list:
FT-100
MICRO
MOBILE
OPERATING
MANUAL
51
