Yaesu FT-100D User Manual

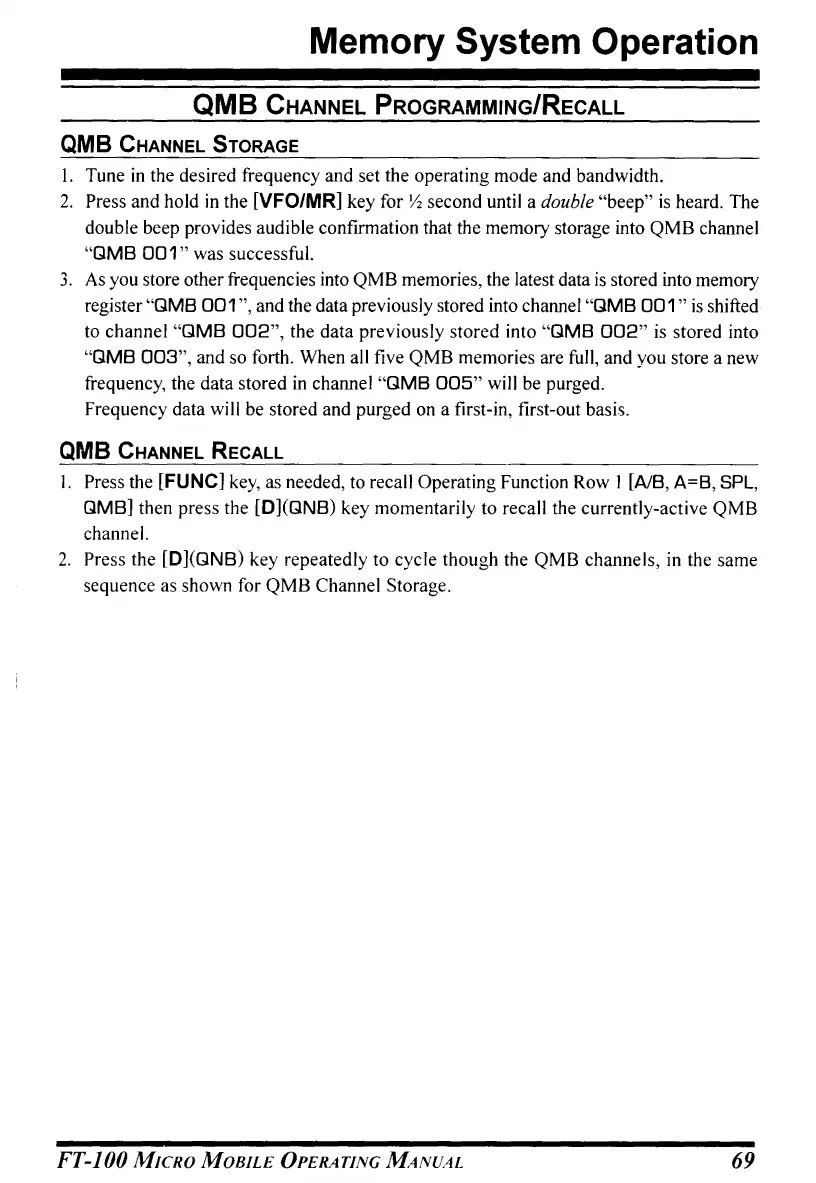

Memory System Operation
QMB CHANNEL PROGRAMMING/RECALL
QMB CHANNEL STORAGE
1. Tune in the desired frequency and set the operating mode and bandwidth.
2. Press and hold in the [VFO/MR] key for ~ second until a double "beep" is heard. The
double beep provides audible confIrmation that the
memory storage into QMS channel
"QMB 001" was successful.
3. As you store other frequencies into QMS memories, the latest data is stored into memory
register "QMB 001", and the data previously stored into channel "QMB 001" is shifted
to channel
"QMB 002", the data previously stored into "QMB 002" is stored into
"QMB 003", and so forth. When all fIve QMS memories are full, and you store a new
frequency, the data stored
in channel "QMB 005" will be purged.
Frequency data will be stored and purged on a
fIrst-in, fIrst-out basis.
QMB CHANNEL RECALL
1. Press the [FUNC] key, as needed, to recall Operating Function Row I [AlB, A=B, SPL,
QMB] then press the [D](QNB) key momentarily to recall the currently-active QMS
channel.
2. Press the [D](QNB) key repeatedly to cycle though the QMS channels, in the same
sequence as shown for
QMS Channel Storage.
FT-100 MICRO MOBILE OPERATING MANUAL
69

Yaesu FT-100D Specifications

General

Product type	Portable CB radio
Product color	Black
Housing material	-
Display type	LCD
Output power	100 W
AM band range	5.2 - 18 kHz
FM band range	15 - 25 MHz
Frequency range	0.1 - 961 MHz
Channels quantity	50 channels
Compatible products	ATAS-120\\tActive-Tuning Antenna System FC-20\\tAutomatic Antenna Tuner YSK-100\\tSeparation Kit XF-117CN\\t300Hz CW Filter MH-36B6JS\\tDTMF Microphone FTS-27\\tCTCSS Tone Decoder Unit
Microphone included	Yes
Input voltage	13.8 V

Weight and Dimensions

Depth	205 mm
Width	160 mm
Height	54 mm
