Yaesu FT-100D User Manual

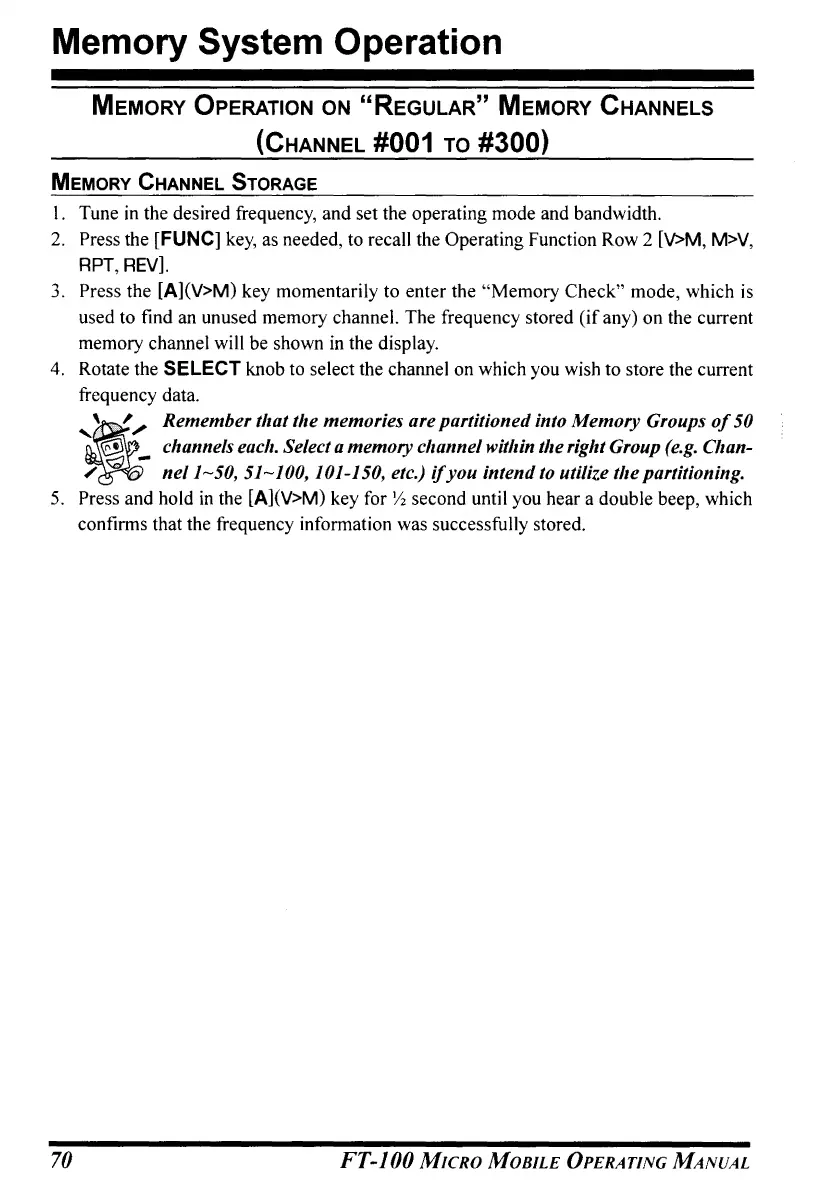

Memory System Operation
MEMORY OPERATION ON "REGULAR" MEMORY CHANNELS
(CHANNEL
#001 TO #300)
MEMORY CHANNEL STORAGE
I. Tune in the desired frequency, and set the operating mode and bandwidth.
2. Press the [FUNC] key, as needed, to recall the Operating Function Row 2 [V>M, M>V,
RPT, REV],
3. Press the [A](V>M) key momentarily to enter the "Memory Check" mode, which is
used to find an unused memory channel. The frequency stored (if any) on the current
memory channel will be shown in the display.
4. Rotate the SELECT knob to select the channel on which you wish to store the current
frequency data.
tt
' ..... '" Remember that the memories are partitioned into Memory Groups of 50
~ channels each. Select a memory channel within the right Group (e.g. Chan-
/ '<;:;;l- nell-50, 51-100, 101-150, etc.) if you intend to utilize the partitioning.
5. Press and hold in the [A](V>M) key for Vz second until you hear a double beep, which
confirms that the frequency information was successfully stored.
70 FT-IOO MICRO MOBILE OPERATING MANUAL

Yaesu FT-100D Specifications

General

Product type	Portable CB radio
Product color	Black
Housing material	-
Display type	LCD
Output power	100 W
AM band range	5.2 - 18 kHz
FM band range	15 - 25 MHz
Frequency range	0.1 - 961 MHz
Channels quantity	50 channels
Compatible products	ATAS-120\\tActive-Tuning Antenna System FC-20\\tAutomatic Antenna Tuner YSK-100\\tSeparation Kit XF-117CN\\t300Hz CW Filter MH-36B6JS\\tDTMF Microphone FTS-27\\tCTCSS Tone Decoder Unit
Microphone included	Yes
Input voltage	13.8 V

Weight and Dimensions

Depth	205 mm
Width	160 mm
Height	54 mm
