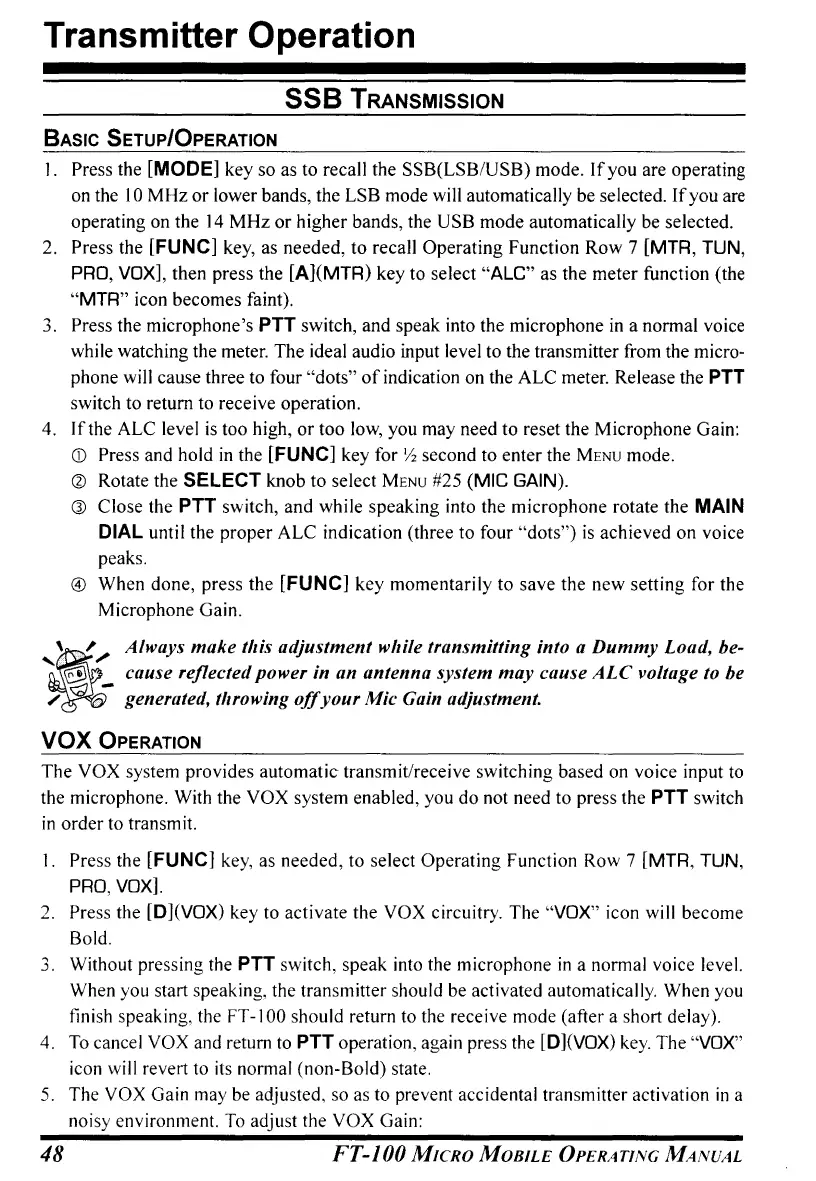

Transmitter Operation
SSB TRANSMISSION
BASIC SETUP/OPERATION
J. Press the [MODE] key so as to recall the SSB(LSB/USB) mode. If you are operating
on the
10 MHz or lower bands, the LSB mode will automatically be selected. If you are
operating on the
J 4 MHz or higher bands, the USB mode automatically be selected.
2.
Press the [FUNC] key, as needed, to recall Operating Function Row 7 [MTR, TUN,
PRO, VOX], then press the [A](MTR) key to select "ALC" as the meter function (the
"MTR" icon becomes faint).
3.
Press the microphone's PTT switch, and speak into the microphone in a normal voice
while watching the meter. The ideal audio input level to the transmitter from the micro-
phone will cause three to four
"dots" of indication on the ALC meter. Release the PTT
switch to return to receive operation.
4.
If the ALC level is too high, or too low, you may need to reset the Microphone Gain:
CD Press and hold in the [FUNC] key for Yz second to enter the MENU mode.
al Rotate the SELECT knob to select MENU #25 (MIC GAIN).
Q) Close the PTT switch, and while speaking into the microphone rotate the MAIN
DIAL until the proper ALC indication (three to four "dots") is achieved on voice
peaks.
@) When done, press the [FUNC] key momentarily to save the new setting for the
Microphone Gain.
~
' .. '" Always make this adjustment while transmitting into a Dummy Load, be-
, ~ cause reflected power in an antenna system may cause ALC voltage to be
/ ':;1 - generated, throwing off your Mic Gain adjustment.
VOX OPERATION
The VOX system provides automatic transmit/receive switching based on voice input to
the microphone. With the
VOX system enabled, you do not need to press the PTT switch
in order to transmit.
J. Press the [FUNC] key, as needed, to select Operating Function Row 7 [MTR, TUN,
PRO,VOX].
2. Press the [D](VOX) key to activate the VOX circuitry. The "VOX" icon will become
Bold.
3. Without pressing the
PTT switch, speak into the microphone in a normal voice level.
When you start speaking. the transmitter should be activated automatically. When you
finish speaking, the FT
-J 00 should return to the receive mode (after a short delay).
4.
To cancel VOX and return to PTT operation, again press the [D](VOX) key. The "VOX"
icon will revert to its normal (non-Bold) state.
5. The VOX Gain may be adjusted, so as to prevent accidental transmitter activation in a
noisy environment.
To adjust the VOX Gain:
48 FT-JOO MICRO MOBILE OPERATING MANUAL

Yaesu FT-100D Specifications

General

Product type	Portable CB radio
Product color	Black
Housing material	-
Display type	LCD
Output power	100 W
AM band range	5.2 - 18 kHz
FM band range	15 - 25 MHz
Frequency range	0.1 - 961 MHz
Channels quantity	50 channels
Compatible products	ATAS-120\\tActive-Tuning Antenna System FC-20\\tAutomatic Antenna Tuner YSK-100\\tSeparation Kit XF-117CN\\t300Hz CW Filter MH-36B6JS\\tDTMF Microphone FTS-27\\tCTCSS Tone Decoder Unit
Microphone included	Yes
Input voltage	13.8 V

Weight and Dimensions

Depth	205 mm
Width	160 mm
Height	54 mm
