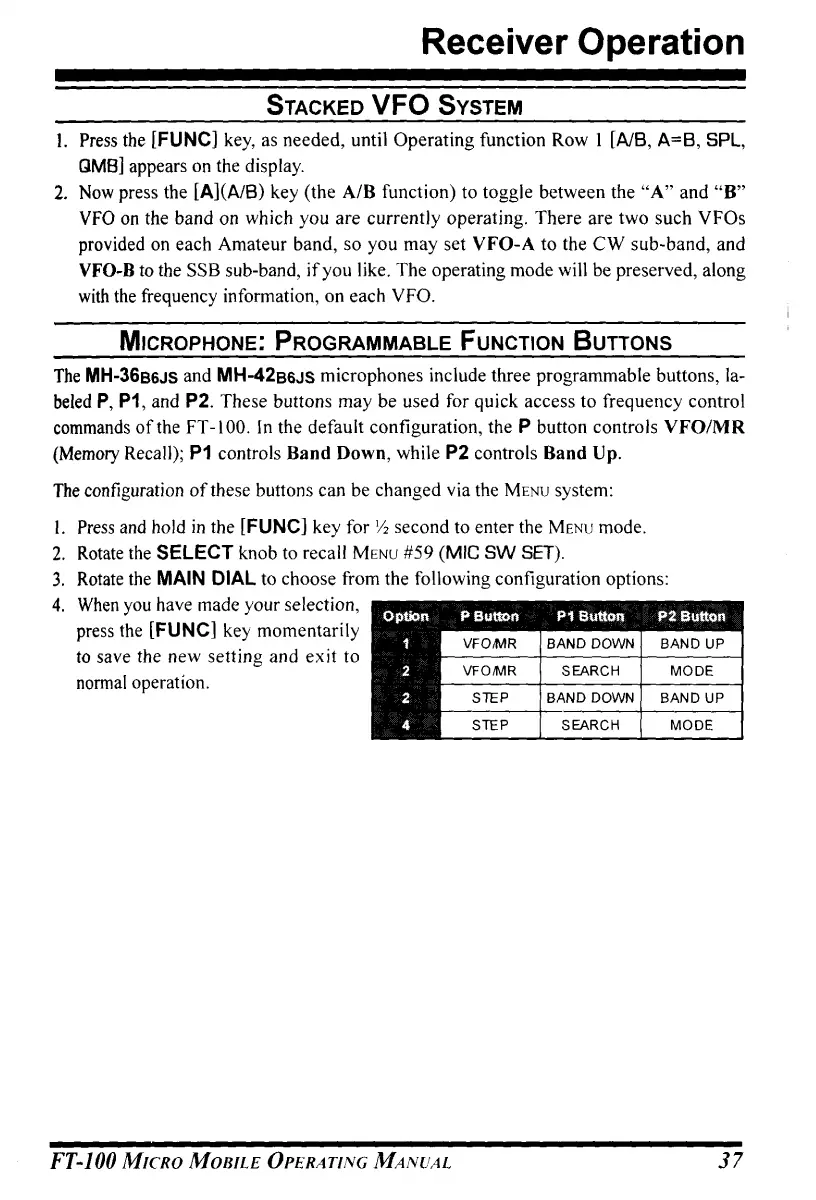

Yaesu FT-100D User Manual

Receiver Operation
STACKED VFO SYSTEM
I. Press the [FUNC] key, as needed, until Operating function Row 1 [AlB, A=B, SPL,
11MB] appears on the display.
2. Now press the [A](A/B) key (the AlB function) to toggle between the "A" and "B"
VFO on the band on which you are currently operating. There are two such VFOs
provided on each Amateur band, so you may set VFO-A to the CW sub-band, and
VFO-B to the SSB sub-band, if you like. The operating mode will be preserved, along
with the frequency information, on each VFO.
MICROPHONE: PROGRAMMABLE FUNCTION BUTTONS
The MH-36SSJS and MH-42sSJS microphones include three programmable buttons, la-
beled P, P1, and P2. These buttons may be used for quick access to frequency control
commands
of the FT -100. In the default configuration, the P button controls VFO/MR
(Memory Recall); P1 controls Band Down, while P2 controls Band Up.
The configuration of these buttons can be changed via the MENU system:
I. Press and hold in the [FUNC] key for 1;j second to enter the MENU mode.
2. Rotate the SELECT knob to recall MENU #59 (MIC SW SET).
3. Rotate the MAIN DIAL to choose from the following configuration options:
4. When you have made your selection,
press the [FUNC] key momentarily
to save the new setting and exit to
normal operation.
FT-IOO MICRO MOBILE OPERATING MANUAL
37

Yaesu FT-100D Specifications

General

Product type	Portable CB radio
Product color	Black
Housing material	-
Display type	LCD
Output power	100 W
AM band range	5.2 - 18 kHz
FM band range	15 - 25 MHz
Frequency range	0.1 - 961 MHz
Channels quantity	50 channels
Compatible products	ATAS-120\\tActive-Tuning Antenna System FC-20\\tAutomatic Antenna Tuner YSK-100\\tSeparation Kit XF-117CN\\t300Hz CW Filter MH-36B6JS\\tDTMF Microphone FTS-27\\tCTCSS Tone Decoder Unit
Microphone included	Yes
Input voltage	13.8 V

Weight and Dimensions

Depth	205 mm
Width	160 mm
Height	54 mm
