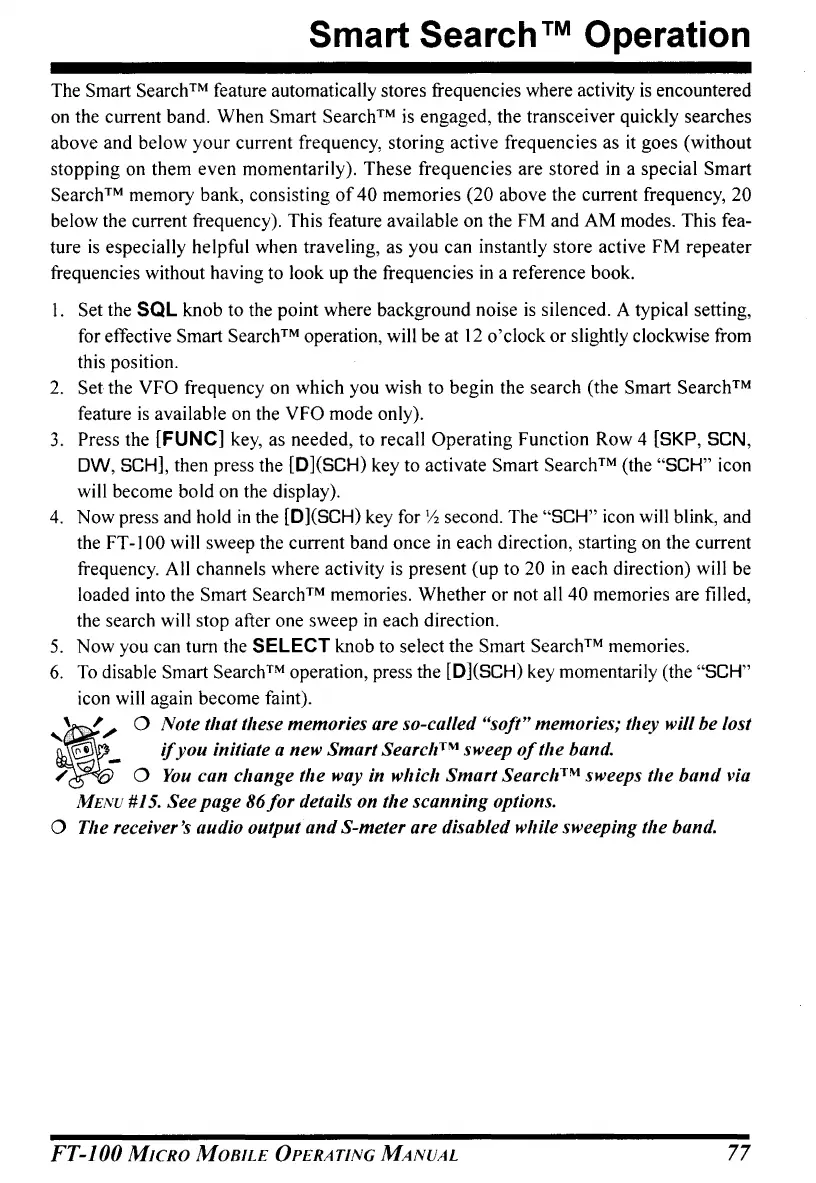

Smart Search ™ Operation
The Smart Search™ feature automatically stores frequencies where activity is encountered
on the current band. When Smart Search™ is engaged, the transceiver quickly searches
above and below
your current frequency, storing active frequencies as it goes (without
stopping on them even momentarily). These frequencies are
stored in a special Smart
Search™ memory bank, consisting
of 40 memories (20 above the current frequency, 20
below the current frequency). This feature available on the FM and AM modes. This fea-
ture is especially helpful when traveling, as you can instantly store active FM repeater
frequencies without having to look up the frequencies in a reference book.
I. Set the
SQl knob to the point where background noise is silenced. A typical setting,
for effective Smart Search™ operation, will be at
12 o'clock or slightly clockwise from
this position.
2.
Set the VFO frequency on which you wish to begin the search (the Smart Search™
feature
is available on the VFO mode only).
3.
Press the [FUNC] key, as needed, to recall Operating Function Row 4 [SKP, SCN,
OW, SCH], then press the [D](SCH) key to activate Smart Search™ (the "SCH" icon
will become bold on the display).
4. Now press and hold in the [D](SCH) key for Y:, second. The "SCH" icon will blink, and
the FT
-100 will sweep the current band once in each direction, starting on the current
frequency. All channels where activity is present (up to
20 in each direction) will be
loaded into the Smart Search™ memories. Whether or not all
40 memories are filled,
the search will stop after one sweep
in each direction.
5. Now you can tum the SELECT knob to select the Smart Search™ memories.
6. To disable Smart Search™ operation, press the [D](SCH) key momentarily (the "SCH"
icon will again become faint).
~ if you initiate a new Smart Searcll™ sweep of the band.
tt
'
.. ''; 0 Note that these memories are so-called "soft" memories; they will be lost
/ ':;:;J - 0 You can change the way in which Smart Search™ sweeps the band via
MENU #15. See page 86 for details on the scanning options.
o The receiver's audio output and S-meter are disabled while sweeping the band.
FT-100 MICRO MOBILE OPERATING MANUAL
77

Yaesu FT-100D Specifications

General

Product type	Portable CB radio
Product color	Black
Housing material	-
Display type	LCD
Output power	100 W
AM band range	5.2 - 18 kHz
FM band range	15 - 25 MHz
Frequency range	0.1 - 961 MHz
Channels quantity	50 channels
Compatible products	ATAS-120\\tActive-Tuning Antenna System FC-20\\tAutomatic Antenna Tuner YSK-100\\tSeparation Kit XF-117CN\\t300Hz CW Filter MH-36B6JS\\tDTMF Microphone FTS-27\\tCTCSS Tone Decoder Unit
Microphone included	Yes
Input voltage	13.8 V

Weight and Dimensions

Depth	205 mm
Width	160 mm
Height	54 mm
