1-FRAME&ELECTRONIC COMPONENT
11
CHK
ADJ
NO. PART NO.
1 1241200-044000 KD150-U fuel tank liner limit glue 2
1240300-007000 HJ125－6 Battery rubber gasket 1
1244100-002000 ZT250－S Side cover round rubber 4
4 1240100-023000 Battery anode protection glue 1
5 1244100-061000 ZT250 anti-water rubber of frame 6
1251112-001093
M6×16 Hexagon flange bolts (color zinc)
7 1221200-058000 KD150-U clamp 1

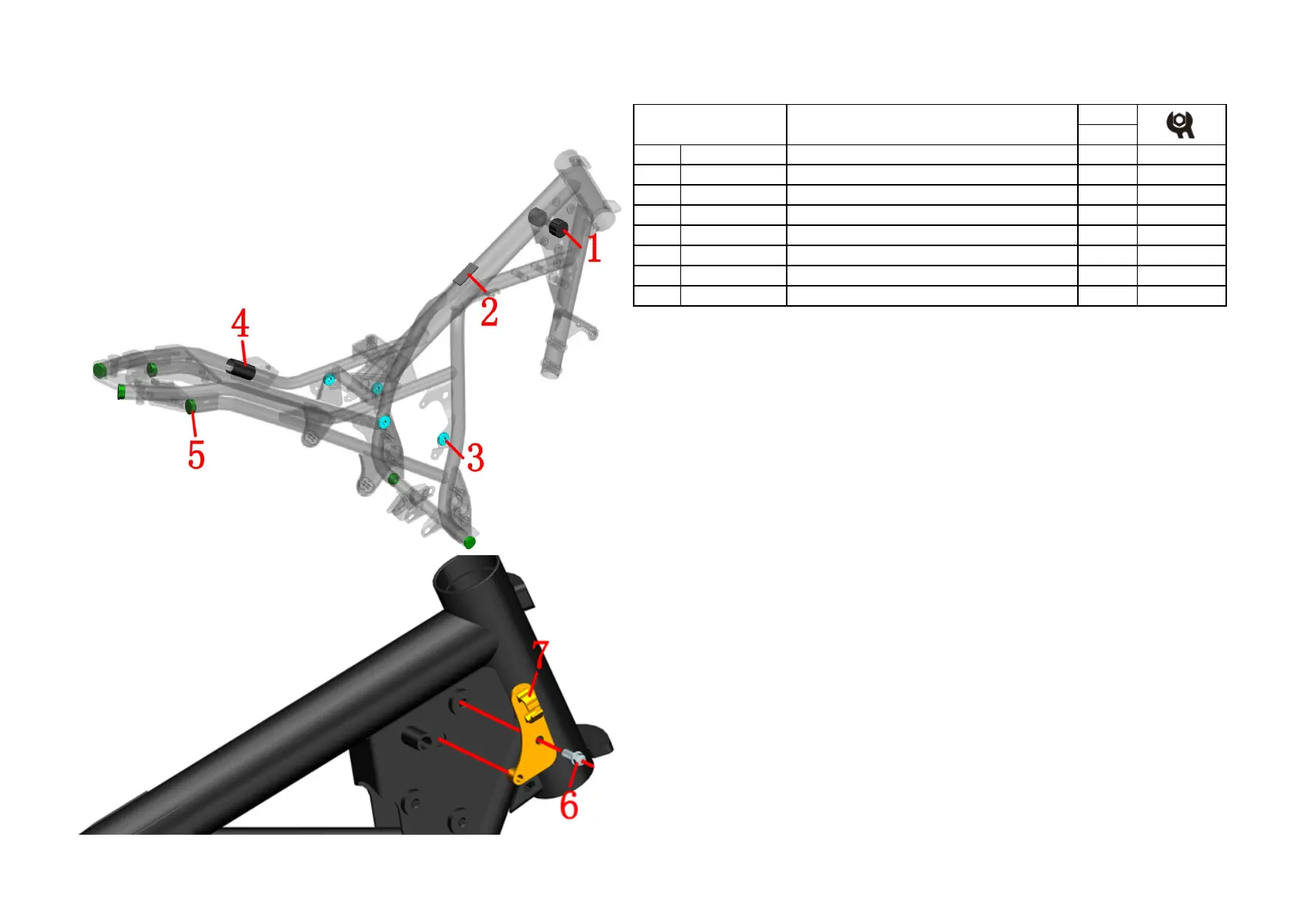

Fig.5FRAME&ELECTRONIC
PARTS COMPONENT
Frame plastic parts
PROCEDURE：
● Fuel tank liner limit glue
Push out the fuel tank liner limit glues⑴ then take off.
● Battery cushion
Put off the battery cushion ⑵directly by hand.
● Side cover cushion
Remove the side cover cushion⑶with your hand directly.
● Battery anode protection glue
Put off the battery anode protection glue ⑷directly by hand.
● Frame waterproof rubber plug
Remove the 6pcs frame waterproof rubber plugs ⑸with your hand directly.
● Clamp
First,take the throttle line off the clamp; hold the clamp by one hand,use 8# sleeve remove bolt⑹ by another
hand，take off clamp⑺.
CAUTION：
●It must be dismantled them first, such as the cushion, fuel tank component, sider cover, tail dressand so on.
●All parts should be correctly assembled.
