5-PEDAL COMPONENT
36
CHK
ADJ
NO. PART NO.
1
1250205-023000 GB70.1 inner hexagonal M8X35(color zinc) 3
2 1251100-061093 M6×22 Hex flang bolt thread level 8.8 (color zinc) 1
3 1251100-123093
－
standard bolt M8×25 (color zinc)
1
4 1251500-048000
－
Left footrest component-1

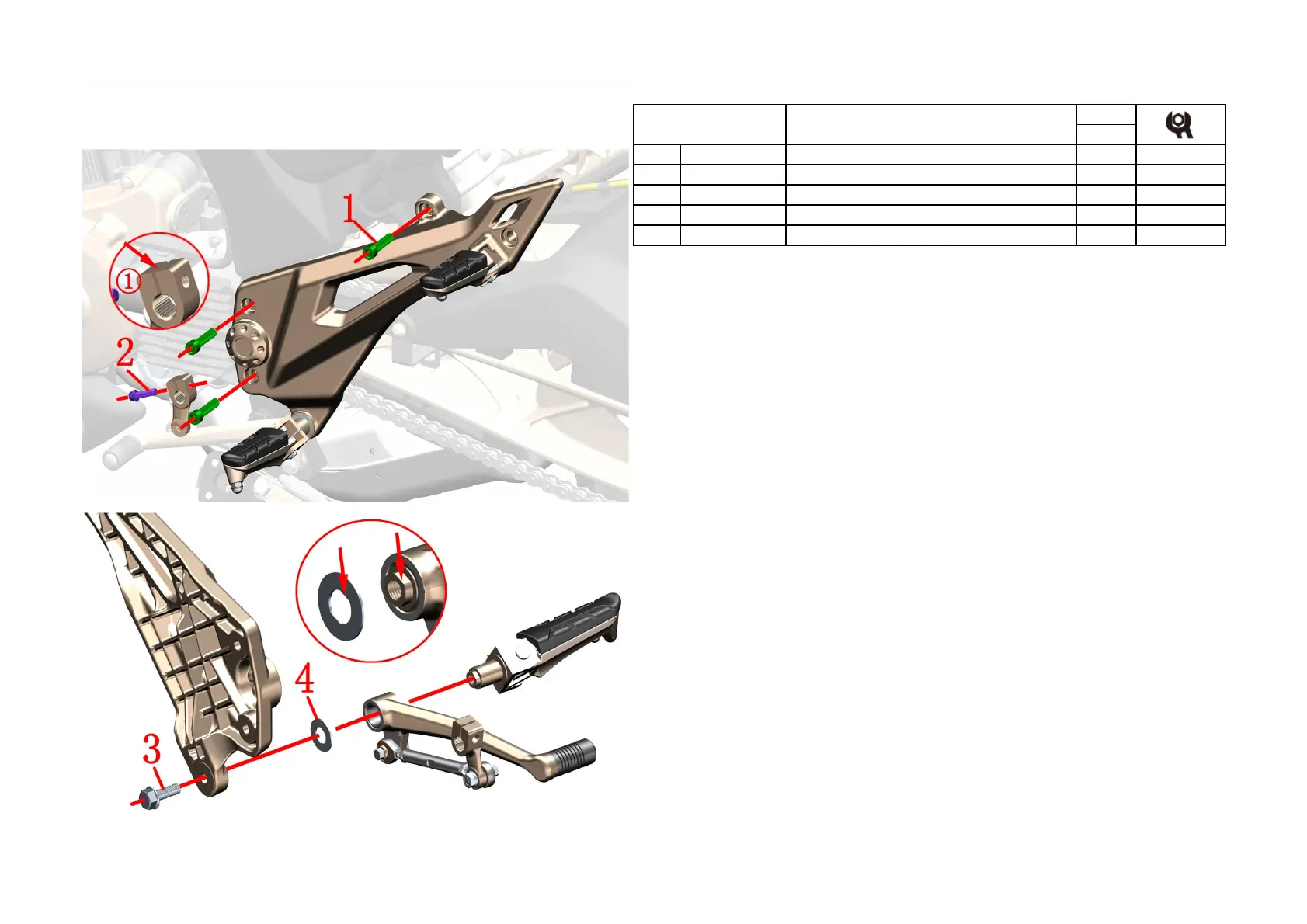

Fig.5 FOOT PEDAL
COMPONENT
PROCEDURE:
●L, foot pedal holder assembly
Remove the rectifier guard first.
Using 8# ring spanner remove the bolt⑵.
Insert strait screwdriver into slot① and open a little bit the spline rockerarm while pulling it out from gear shift
axle of engine.
Using 6# inner hexagon socket remove 3pcs bolts⑴.
Take off left foot pedal holder assembly.
●Gear shift rod assembly
Using a 14# sleeve remove bolt⑶. Separate left foot pedal component and gear shift rod assembly from left
foot pedalholder assembly. Take off foot pedal holder washer⑷.
CAUTION:
●Support the motorcycle properly while disassembling in case it falls down.
●Pay attention to the alignment of foot pedal holder washer and the lug boss while reassembling.
●Applying lubrification to the surface of cylinder of foot pedal holder can reduce resistance on gear shift rod.
●The bolt⑶ should be checked regularly for looseness and thread fastening adhesive is recommended.
