7-FRONT FORK COMPONENT
62
CHK
ADJ
NO. PART NO.
1 1224100-025000 ZT250－S M8 bolt decorative buckle 6
2 1250205-023000 GB70.1 inner hexagonal M8X35 (environmental color) 4
3 1134200-005000 ZT310－R press block of handle bar(home－made) 1
4 1131200-019000 KD150－U direction handlebar 1
5 1250205-040095 GB70.1 inner hex bolt M8×16(color Zinc) 2
6 4021200-026000 KD150－U Instrument Stand Underlay 1 U model
7 4021200-019000
－
U direction handle shield middle cover bracke
1 U1 model
Directional lever component

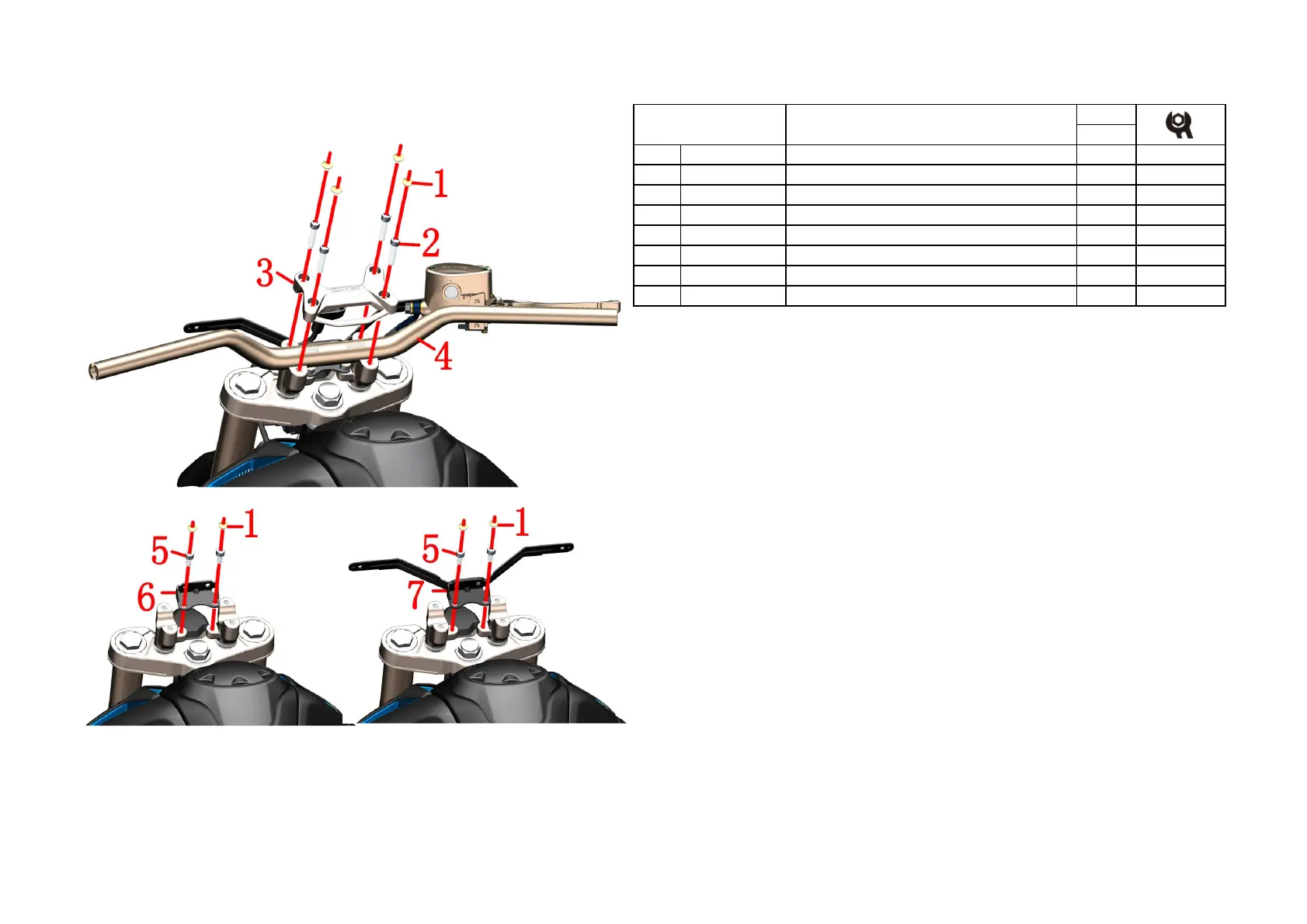

Fig.19 FRONT FORK
COMPONENT
PROCEDURE:
●Directional components
Using a blade to pick up the decorative buckles⑴, hold the direction handle⑷ in one hand, and remove the bolt
⑵ with a hexagonal tool in one hand; remove the clamp⑶ and finally remove the direction handle⑷.
●Instrument bracket
Using a blade to pick up the decorative buckles⑴.After fixing the bracket⑹ or ⑺ then using 6# inner hexagon
socket romve bolts⑸,take off the bracket⑹ or ⑺.
CAUTION:
●Protect protective measures to prevent scratching the appearance of the instrument case and the decorative
cover.
●Note that the main pump of the front disc brake should be kept upward and cannot be reversed to prevent air
from entering the brake pipeline.
●
When assembling the clamping block, first tighten the 2 bolts at the front, and then tighten the bolts at the rear
(close to the fuel tank side). Wrong sequence or diagonal locking may break the lock block.
