7-FRONT FORK COMPONENT
61
CHK
ADJ
NO. PART NO.
1 1194100-001000 ZT250－S left rearview mirror 1
2 1251100-121093
－
standard bolt M6×25 (environmental color)
2
3 1134100-017000 ZT250－R half cover of left handle bar 1
4 1184200-184000
ZT310－V1 left handlebar switch
1
5 1244100-041000 ZT250－R left hand rubber sleeve 1
6 1131200-017000 KD150－U hand guard 1
7 1250205-085000 GB70.1M6×70 (stainless steel) 1
8 1244200-046000 ZT310－V clutch line sheath 1
9
－
V left hand rocker arm assembly 1
10 1251300-073000
GB/T6185 hexagonal nylon lock nut M6 (color zinc) 1
11 1251100-198000
－
standard hexagon socket bolt M6×13
－
12 1270300-257000
－
G oil tank decorative cover connection stud
1 U1 model
13 1134200-010000 ZT310－VLeft hand rocker arm (CNC) 1
14 1184100-107000 ZT250－R clutch switch 1
PROCEDURE:
●Left rear view mirror, left switch,hand guard
Remove the clutch line by referring to the "Replace Clutch Line" procedure. Remove the left rear view mirror
⑴,left switch⑷,hand guard⑹ by referring to the steps in "Right Handle Assembly" and "Add Brake Fluid,
Adjusting Rocker Arm".
Using 6# inner hexagon socket remover 2pcs bolts⑵ take off the half cover⑶ and the left hand arm assembly.
●Left hand rubber sleeve
You can soak in hot water for about 10 minutes and then use a dust blower to blow into the space between the
rubber sleeve of the left hand and the direction handle, and move the outer sleeve to remove the left hand grip⑸.
●Replace the left hand rocker arm and clutch switch
Take off the rubber sleeve⑻.Then fix the bolt⑾ with a 5# inner hexagon socket then remove the nut⑽ or bolt
⑿ .Remove the bolt⑾ and remove the left-hand rocker arm⒀ and the rocker arm assembly⑼.
Rotate the adjusting nut②
to adjust the distance between the rocker arm and the left handle to adjust the rubber
sleeve to adapt to different driver's hand feeling.
First remove the clutch switch plug, then use a cross screwdriver to remove the bolt③, remove the clutch switch
⒁.
CAUTION:
● The vehicle should be fixed before operation.
● The disassembly and assembly of the clutch line is carried out according to the step of adjusting the
clutch cable.
● Note the triangle symbol
on the rocker arm assembly and the half cover seam alignment switch.

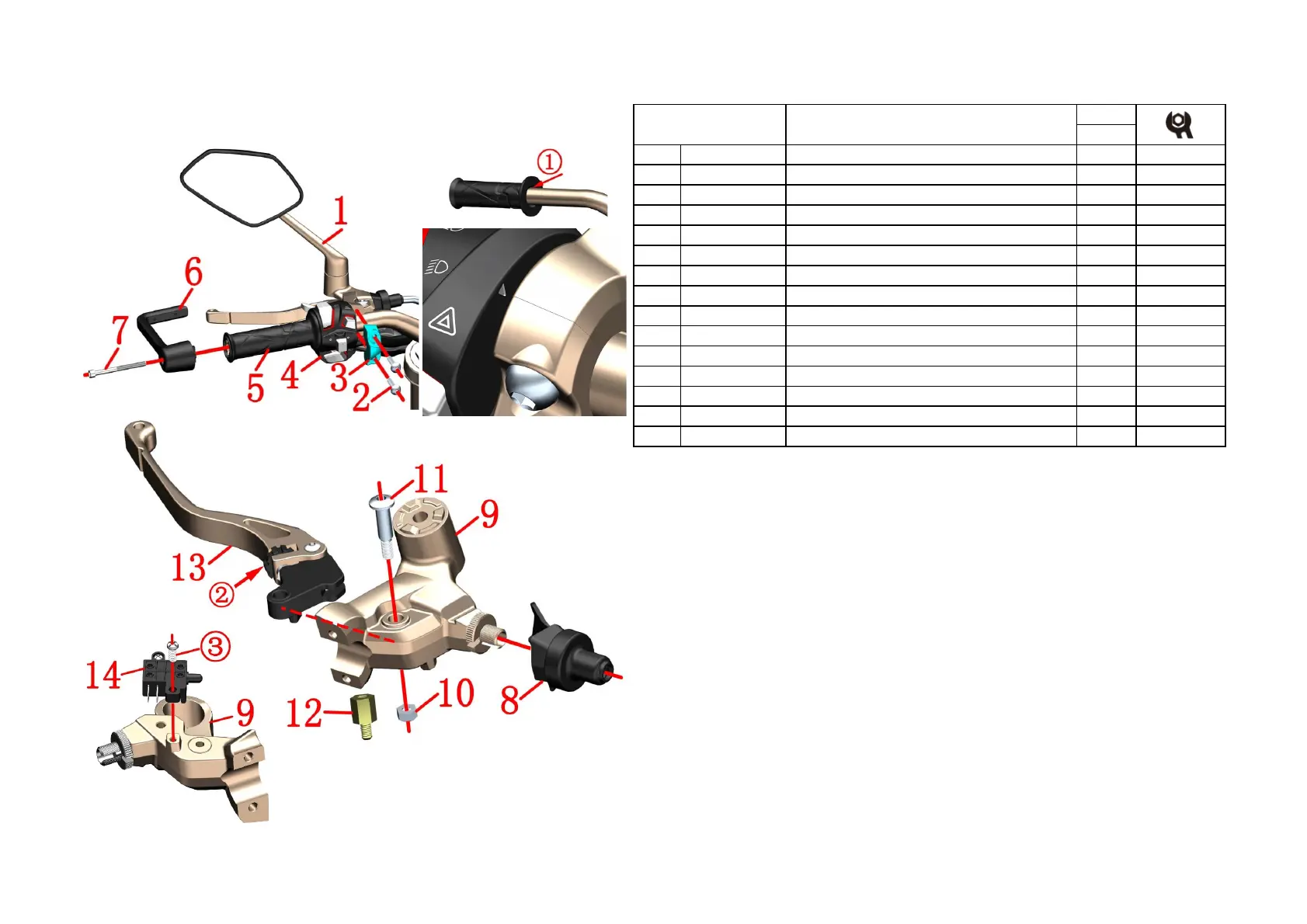

Left hand component
Fig.18 FRONT FORK
COMPONENT
To Next Page
