7-FRONT FORK COMPONENT
48
CHK
ADJ
NO. PART NO.
1 1251100-102000 Non－standard bolt M6×16(304 stainless steel) 4
2 1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) 4
3 1274100-057095 Flanging bushing φ6.2×φ8.5×3.5＋φ14×1.5 4
4 1221200-099000
－
U right handle guard cover
1
5
－
U right handle guard cover bracket
1
6 1241200-060000
－
U1 handle guard cover bracket sheath
1
7
（环保彩）
8
－
G oil tank decorative cover connection stud 2
9
－
standard bolt M6×12 (304 stainless steel) 2
10
1251300-063093 Plywood M6×11×15(color zinc) 2
11
－
U left handle guard cover bracket
1
12
－
U left handle guard cover
1
13
－
U direction of the shield in the middle
1
14
－
R buffer rubber of head cover 2
PROCEDURE:
●handle guard cover
Pull down the cylindrical part of the sheath ⑹, fix the stud ⑻ with a 12# wrench, and then remove the nut ⑺
with a 10# torx wrench.
Grasp the shield assembly with the right hand and use the 4# inner hexagon to remove the bolt ⑴, and remove
the bush ⑵ and the cushion rubber ⑶.
Remove the bolt ⑼ with 4# inner hexagon, and take off the right shield bracket ⑸. Remove the nut ⑽ from
the right shield, and remove the shield ⑹ from the bracket ⑸.
Refer to the above steps to remove the left shield ⑿ and left shield bracket ⑸.
If you need to remove the stud ⑻
, fix the corresponding bolt with a 5# inner hexagon and then remove it with a
12# torx wrench.
●direction of the shield in the middle
Use 4# inner hexagon to remove the bolts ⑼
on both sides, and pull out the middle of the middle cover; remove
the middle cover assembly.
Remove 2 pieces of nuts ⑽ and cushion rubber ⒁ from the middle cover ⒀.
CAUTION:
●
The right handle has a shield, the left handle does not. Before installing the sheath, a small amount of grease or
oil can be applied to the bracket (5) to facilitate assembly.
●Pay attention to the direction when pulling out the middle cover assembly.

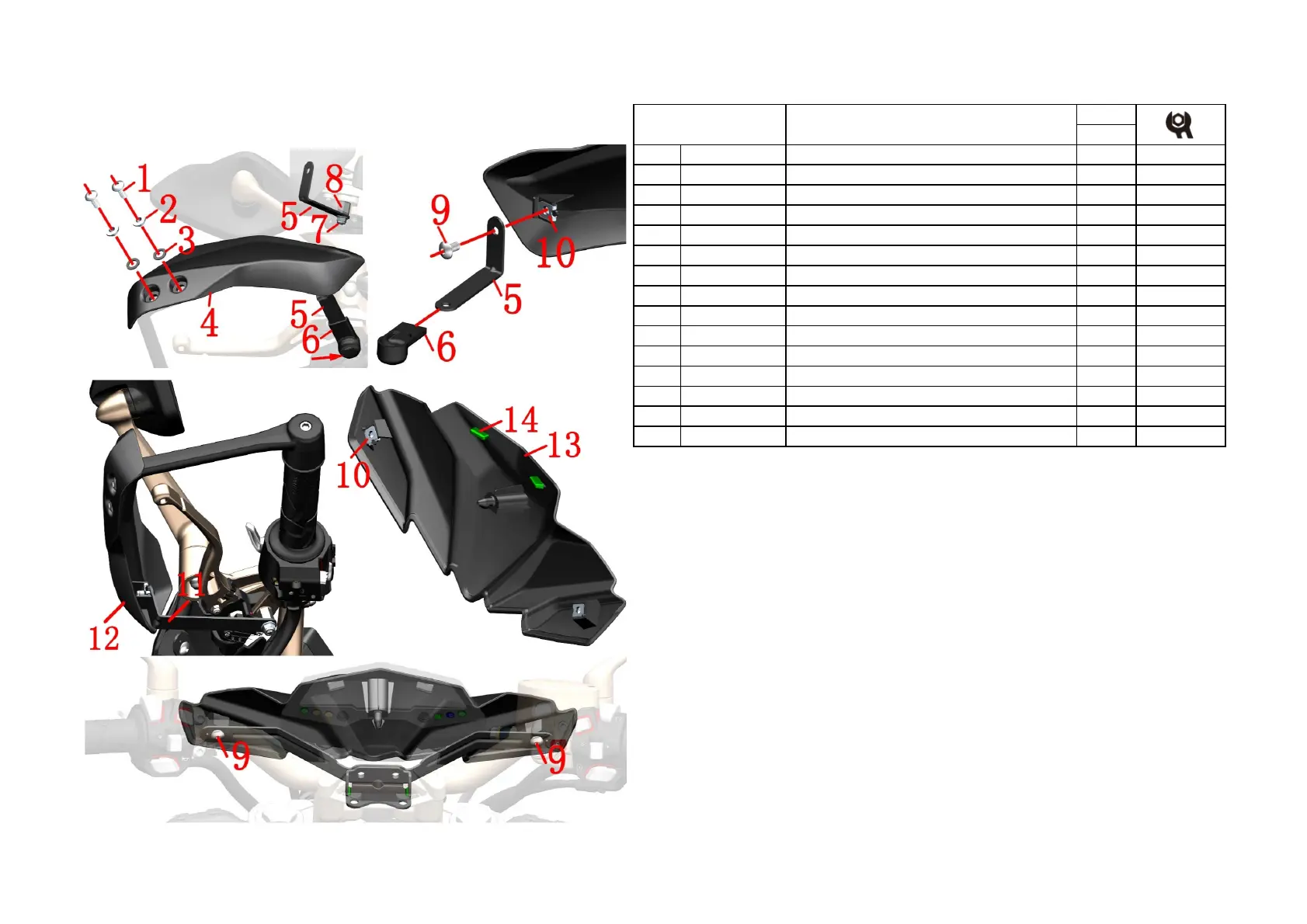

Fig.5 FRONT FORK
COMPONENT
U1 hand guard cover component
