7-FRONT FORK COMPONENT
54
CHK
ADJ
NO. PART NO.
1 1251100-102000 Non－standard bolt M6×16(304 stainless steel) 2
2 1274100-057095 Flanging bushing φ6.2×φ8.5×3.5＋φ14×1.5 4
3 1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) 4
4 1250303-010093 GB6177.1M6(color zinc ) 1
5 1250502-010093 GB96.1φ6(color zinc) 1
6 1221200-042000
－
U hood lower decorative cover
1

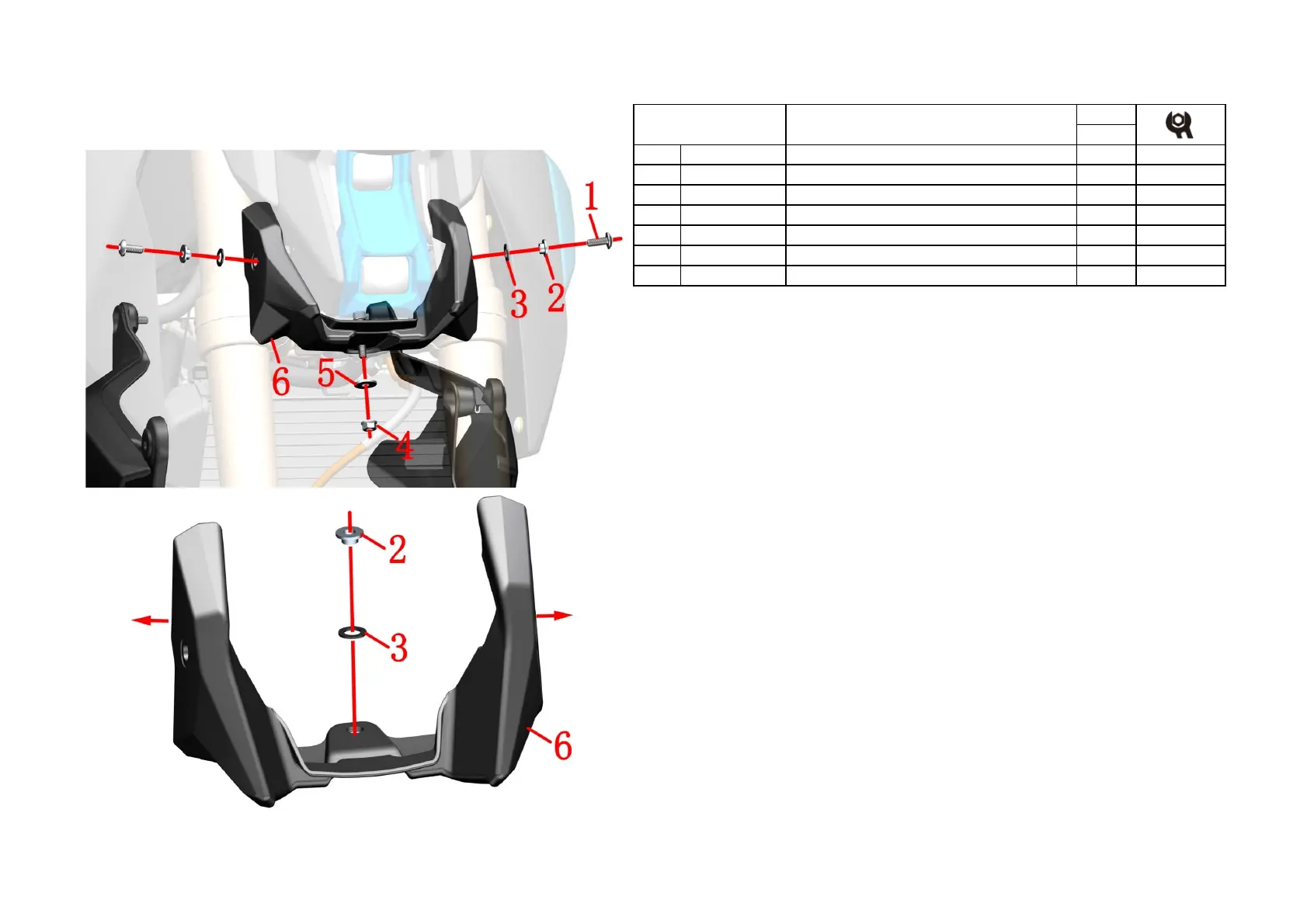

Fig.11 FRONT FORK
COMPONENT
U hood lower decorative cover
PROCEDURE:
●Decorative cover of head cover
Use 4# inner hexagon to remove the bolts ⑴ on both sides, and remove the bushing ⑵ and cushion rubber ⑶.
Use a 10# wrench to remove the nut ⑷ and remove the gasket ⑸.
Slightly open both sides of the bottom of the decorative cover ⑹ and then pull it down, and then remove the
decorative cover assembly.
Remove the bushing ⑵ and cushion rubber ⑶ from the decorative cover ⑹.
CAUTION:
●
The motorcycle support should be fixed during the disassembly process to prevent accidents caused byincline.
●Disassemble the oil pipe clamp and the sensor wire clamp should pay attention to the strength.
●Pay attention when disassembling to prevent breaking.
●When reassembling, make sure that the torque of nut ⑷ can not be too high to prevent the bolt from loosening.
