11-REAR COVER COMPONENT
80
CHK
ADJ
NO. PART NO.
1 1250205-040095 GB70.1 inner hex bolt M8×16(color Zinc) 2
2 1251700-058093
Flanging bushing φ8.2×φ11×4.5
＋
3 1240300-071000 Flanging bushing rubber (φ11×φ16×1) 2
4 1251100-102000 Non－standard bolt M6×16(304 stainless steel) 2
5 1274100-057095 Flanging bushing φ6.2×φ8.5×3.5＋φ14×1.5 2
6 1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) 2
7 1224100-010000 ZT250－S swell nail 6
8 1221200-049000 KD150－U battery water blocking cover 1

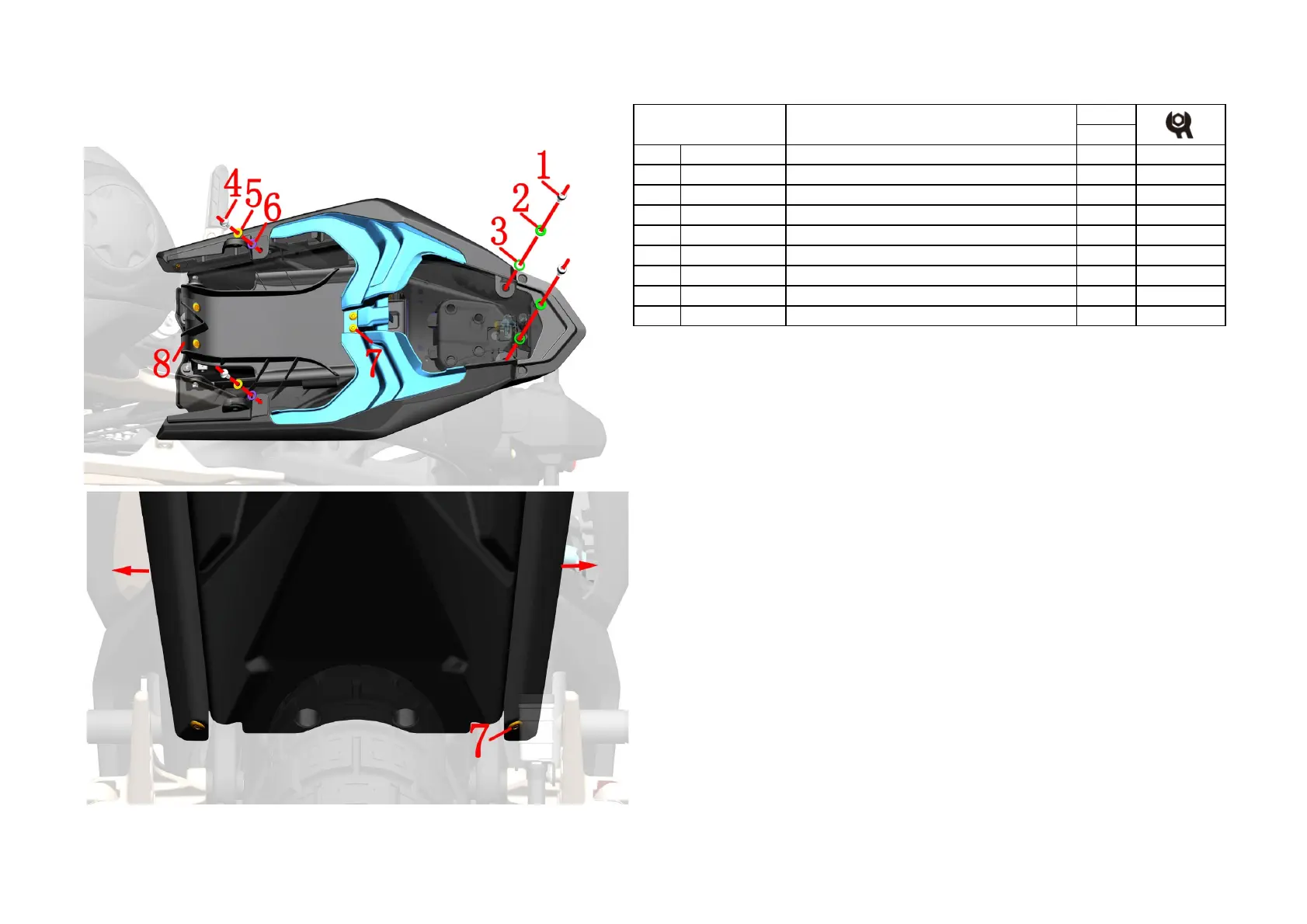

Fig.1 REAR COVER
COMPONENT
Rear cover component 1
PROCEDURE:
●Rear cover component
Remove 4pcs swell nail⑺ fix the water blocking cover⑻,then take it off.
Using 4# inner hexagon socket remove 2pcs bolts⑷ on both sides of the front,take off the bushing⑸ and the
cushion rubber⑹.
Using 6# inner hexagon socket remove 2pcs bolts⑴,take off the bushing⑵and the cushion rubber⑶.
Take off the swell nail⑺ on the bottom of the rear cover componet.
Pull out in the direction of the arrow, pry the upper buckle of the rear and remove the rear cover assembly.
CAUTION:
●The cushion,side cover need to be removed in advance.
●The parts should be protected during the disassembly process.
●When removing the buckle, pay attention to the strength to prevent damage to the buckle.
●You can watch the detailed operation in "KIDEN official websiteassembly video KD150-U, U1 rear cover
and rear light disassembly instruction video".
