4-REAR WHELL COMPONENT
25
CHK
ADJ
NO. PART NO.
1 1251100-102000 Non－standard bolt M6×16(304 stainless steel) 4
2 1224200-003000
－
Z Rear disc brake pipe clamp
2
3 1184200-045000 DF30 wheel speed sensor 1
4 1100100-564000 KD150－U brake hose RC－HU segment 1
5 1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) 2
6 1251700-059093
Flanging bushingφ6.4×φ9×8
＋
7 1221200-040000 KD150－U rear inner mud board 1
8 1271200-068000 KD150－U rear inner mud board bracket 1
9 1274100-057095 Flanging bushing φ6.2×φ8.5×3.5＋φ14×1.5 1

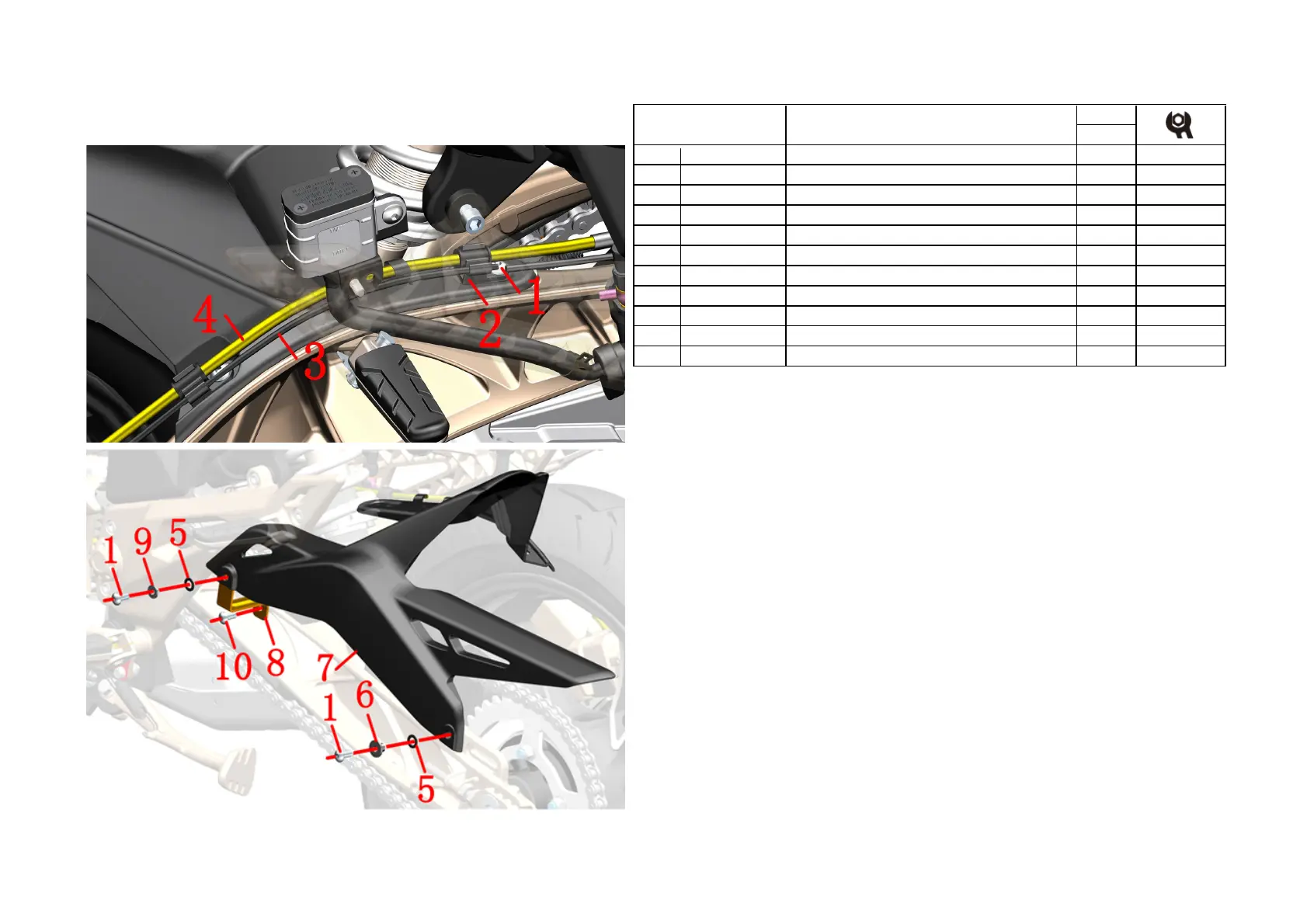

Fig.6 REAR WHELL
COMPONENT
PROCEDURE:
●Rear inner mudguard
First of all, pull out the braking oil tube⑷ and wheel speed sensor
cable⑶, which are on the right side of
rear inner mudguard,from the rear disc brake pipe clamp⑵.
Using 4# inner hexagon socket remove 2pcs bolts⑴,take off the brake pipe clamp⑵.
Using 4# inner hexagon socket remove 2pcs bolts⑴ on the left of the rear mud board,take off the flanging
bushing⑼,bushing⑹ and cushion rubber⑸;remove rear mud board⑺.
Remove the bolt⑽ fix the rear mud board bracket⑻,then take off the bracket.
CAUTION:
●
Using suitable tools to support the motorcycle, in case of accidents caused by motorcycle falling down. Single
person operating is prohibited.
●Stay alert during the manipulation and avoid accident.
Rear mud board
10 1251100-101000 Non-standard bolt M6×12 (304 stainless steel)
1
