4-REAR WHELL COMPONENT
22
CHK
ADJ
NO. PART NO.
1 1270300-273000 φ8 clip(L=73) 1
2 1174100-002000 ZT250－S rear reflector 1
3 1221200-038000 KD150－U rear side fender 1
4 1181200-098000 KD150－U auxiliary mud plate transfer line 1
5 1244100-006000 ZT250－S rear liceness rubber buffer 1
6 1251100-102000 Non－standard bolt M6×16(304 stainless steel) 4
7 1274100-057095 Flanging bushing φ6.2×φ8.5×3.5＋φ14×1.5 4
8 1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) 4
9 1171200-057000
KD150－U license plate light
10 1251300-063093 Plywood M6×11×15(color zinc) 4
11 1171200-066000 KD150－U rear right turn light 1
12 1221200-053000
KD150－U rear turn signal bracket
1
13 1171200-065000 KD150－U rear left turn light 1
PROCEDURE:
●Back reflector, license plate cushion rubber
Flip to the back,Straighten the clamp ⑴ and pull out the adapter cable ⑷；remove the nut and gasket that
comes with rear reflector⑵,take off the clip⑴ and the rear reflector.Remove the plate cushion rubber⑸，
●Steering lights, fender sub-assemblies
Using 4# inner hexagon socket remove the bolts⑹ on the left and right sides, take off the flanging bushing⑺
and the buffer rubber⑻。 Disassemble the turn signal component and fender subassembly.Note that the sub-
mud switch cable⑷cannot be forcibly pulled.
●Steering lights
Take off 4pcs plywoods⑽ from the turn signal bracket⑿.
Unplug all the joints of the turn signal and the license plate light and remove the auxiliary fender transfer line
⑷.
Remove the 3 screws that come with the license plate light and then remove the license plate light ⑼.
Grasp the left (right) turn signal firmly and use a 17# wrench to remove the nut that comes with the turn signal,
and then remove the spring washer and gasket that comes with it, and then remove the turn signal.
CAUTION:
●Do not pull the cable hard when removing the sub-mud switch.
●When reassembling, check if there is any pressure on the wire to prevent it from tightening.Short circuit
caused by bolts. Pay attention to the lamp connector, do not insert the wrong, turn left
Green + orange; right turn signal is green + blue; license plate light is green + pink.
●When assembling self-tapping screws come with the license plate light, it must be perpendicular to mounting
surface, otherwise it will bedamaged,and the torque should not be too large.

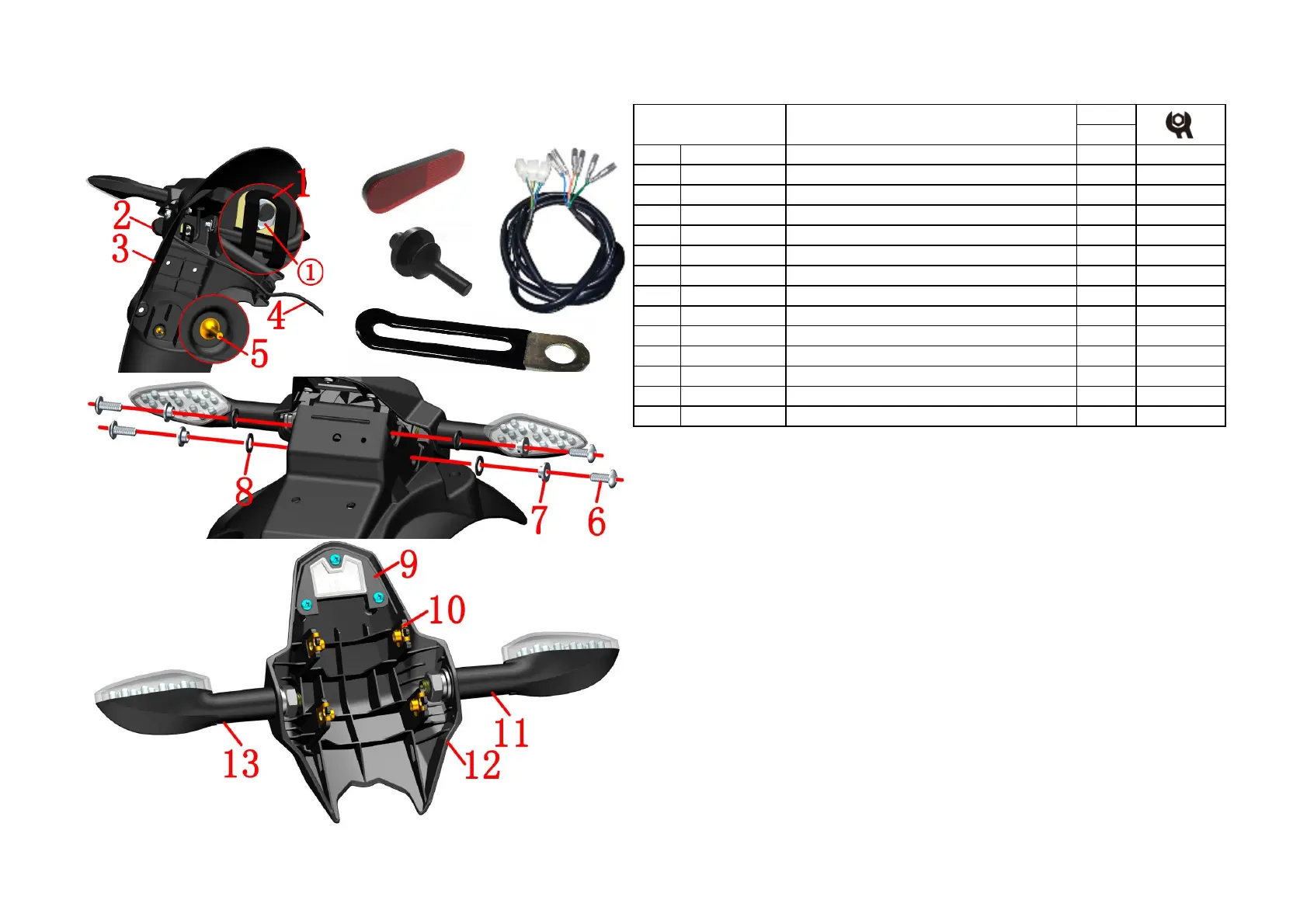

Fig.3 REAR WHELL
COMPONENT
U rear auxiliary mud board component 3
