7-FRONT FORK COMPONENT
60
CHK
ADJ
NO. PART NO.
1 1224100-010000 ZT250－S swell nail 2
2 1221200-063000 KD150－U speedometerdecorative cover 1
3 1250205-040095 GB70.1 inner hex bolt M8×16(color Zinc) 2
4 4021200-025000 KD150－U Instrument Stand 1
5 1166100-001000
－
U electronic instrument (electrospray version)
1
6 1244100-002000 ZT250－S Side cover round rubber 1
PROCEDURE:
●U model speedometerdecorative cover
Remove the expansion nails ⑴ on both sides, and take off the decorative cover of the instrument.
●Instrument assembly
After finding the plug of the instrument, unplug it with 6# inner hexagon to remove the 2 bolts (3), and remove
the instrument assembly.
●Instrument bracket
After fixing the instrument ⑷, use a 10# sleeve to respectively remove the nut ① and the gasket ② that come
with the instrument.
Separate the instrument bracket assembly from the instrument ⑸.
Remove the cushion rubber ③ and the side cover round rubber ⑹ from the instrument support ⑷.
CAUTION:
●Protective measures must be taken to prevent scratches on the instrument and decorative cover.
●Refer to the manual for details about the functions and setting methods of the instrument.
U model

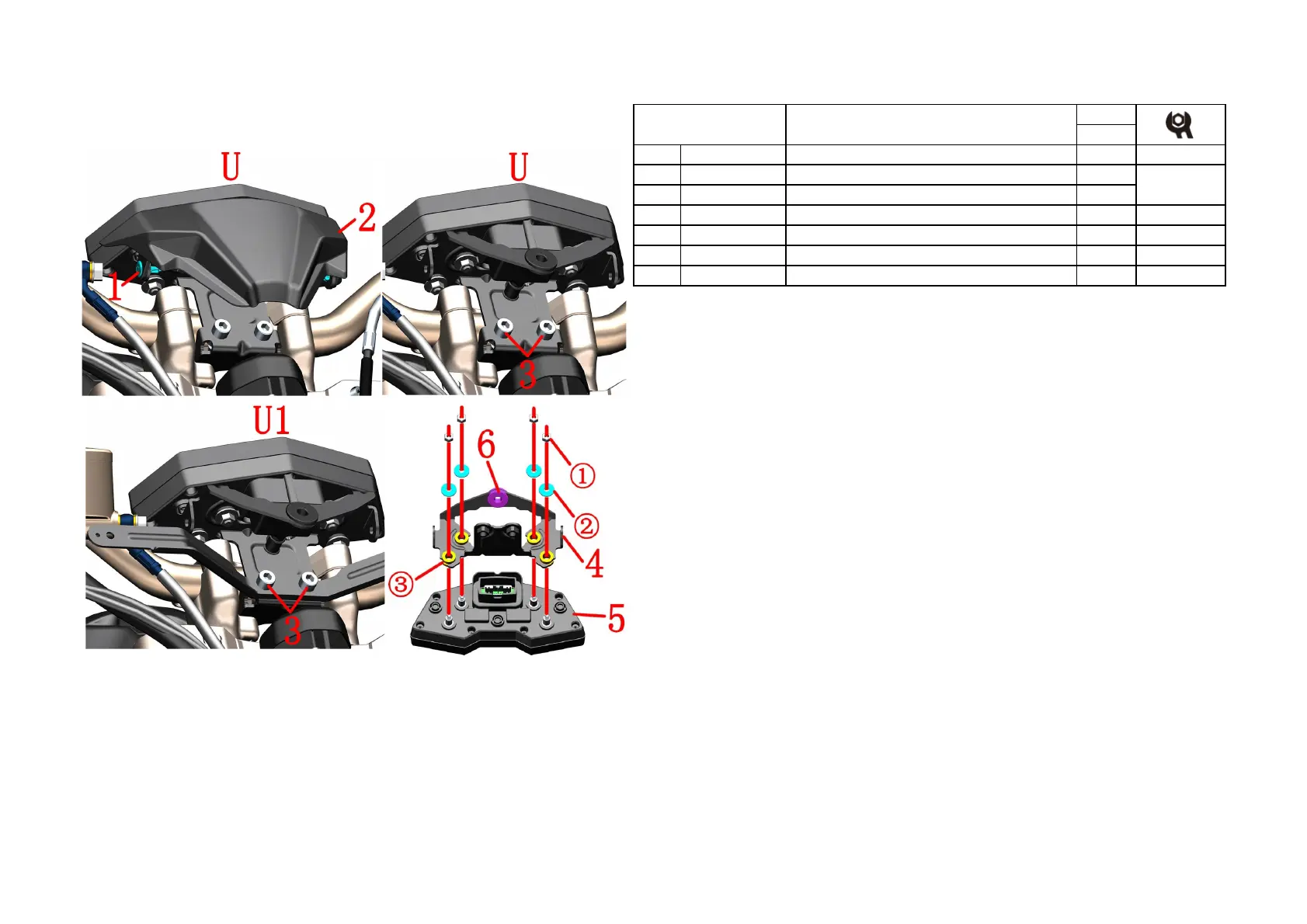

Fig.17 FRONT FORK
COMPONENT
Speedometer component
