4-REAR WHELL COMPONENT
28
CHK
ADJ
NO. PART NO.
1 1230100-446000
－
2 1091200-023000 KD150－U bright black rear rim (3.5×17) 1
3
－
U rear brake disc (230 × 4.5 / KD) 1
4
1274200-058000 ABS induction ring (60 teeth) 1
5 1251100-117093 Non－standard inner hex bolt M8×25(color zinc) 5
～
6 1230200-006000 HJ100－D tire valve cap 1
U 7 1230100-047000
Environmental vacuum tyre valve spile(TR
－
8
－
10
1094200-058000 ZT310 independent valve 1 after-sales
U1
9 1091200-035000
KD150－U black rear vacuum spoke wheel
component (3.5×17/φ11.5)
1 with valve

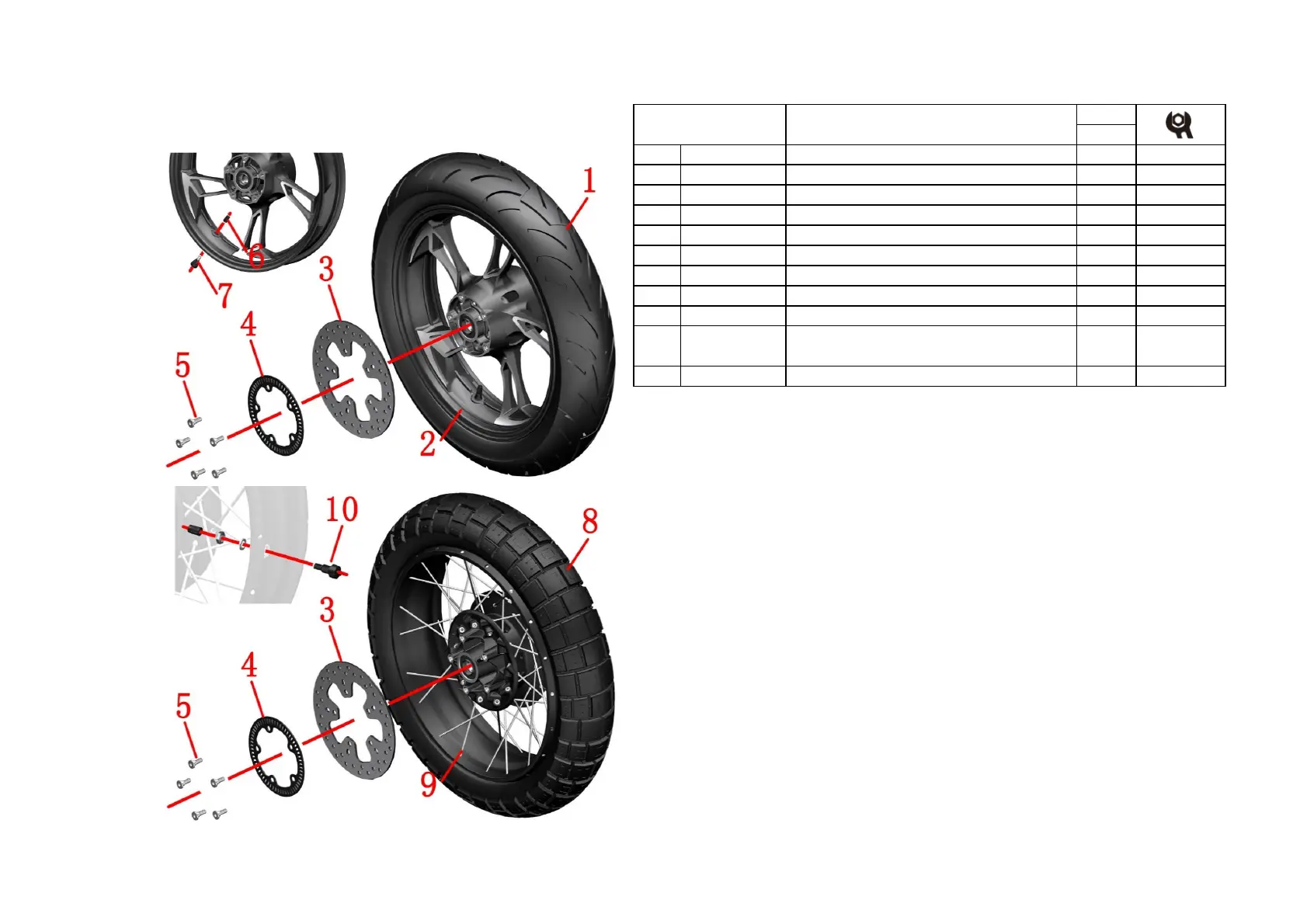

Fig.9 REAR WHELL
COMPONENT
Rear wheel component 2
●Disc brake plate, ABS gear ring
Using 6# inner hexagon socket remove bolts⑸,remove ABS gear ring⑷ and disc brake plate⑶。
●Tire and rim assembly
U:Disassemble tire valve cap⑹. Deflate the tire with tools. Then disassemble the rear tire⑴ with professional
tire changing machine. Disassemble the tire valve⑺ with suitable tool.
U1:The rear wheel component⑼ contain the valve⑽.After removing the valve cap that comes with the
independent valve ⑽, vent the air before removing the rear tire. Use a 12# torx wrench to remove the nut,
remove the washer, and then remove the valve.
●Maintenance
Tire: Check regularly the tire on cracks and air pressure.If the tire is ware to the marker, change the tire with
same specification. See details in user manual. Ingradiant of tire include semi hot melt rubber. Area with too high
temperature is not suitable. If temparature of outdoor is too low, storing the motorcycle in warm place or indoor
is suggested in order to avoid frost crack. Normal temperaturestandard 250kPa.
Rim: Check if the rim has deformation or crack. Support the rim horizontally and check if it can rotate
smoothly. Specification of oil seal on rear rim is φ47×φ28×7. Bearing type: 6204-2RS。
Disc brake plate: Thickness can not be less than 4mm. If not, change it.
CAUTION:
●Be careful while disassembling the tire and rim in case of damages on the components.
●After changing the tire, check air proof performace and dynamic balance.
●Disqualified tire repair liquid might corrode the rim and cause safety risk.
●Not enough tire pressure can cause abnormal wear and tare. Too high pressure in summer might have
possibility of tire bursting.
●It needs running-in for about 300km after changing new rear disc brake plate. During this period, leave
enough braking distance while riging.
