Zontes ZT155-U User Manual

12-CUSHION COMPONENT
84
CHK
ADJ
NO. PART NO.
PART NAME QTY CAUTION
1 1200100-382000
KD150
－
U rear cushion
1
2 1250303-010093 GB6177.1M6(color zinc ) 2
3 1010502-005000
ZT310
－
R seat belt
1
4 1244100-025000
ZT250
－
S round cushion rubber
4
5 1251100-119093
Non
－
standard bolt M6×12 (environmental color)
2
6 4021200-022000
KD150
－
U Rear Cushion Bracket
1
7 1244100-004000
ZT250
－
S Flanging bushing buffer
2

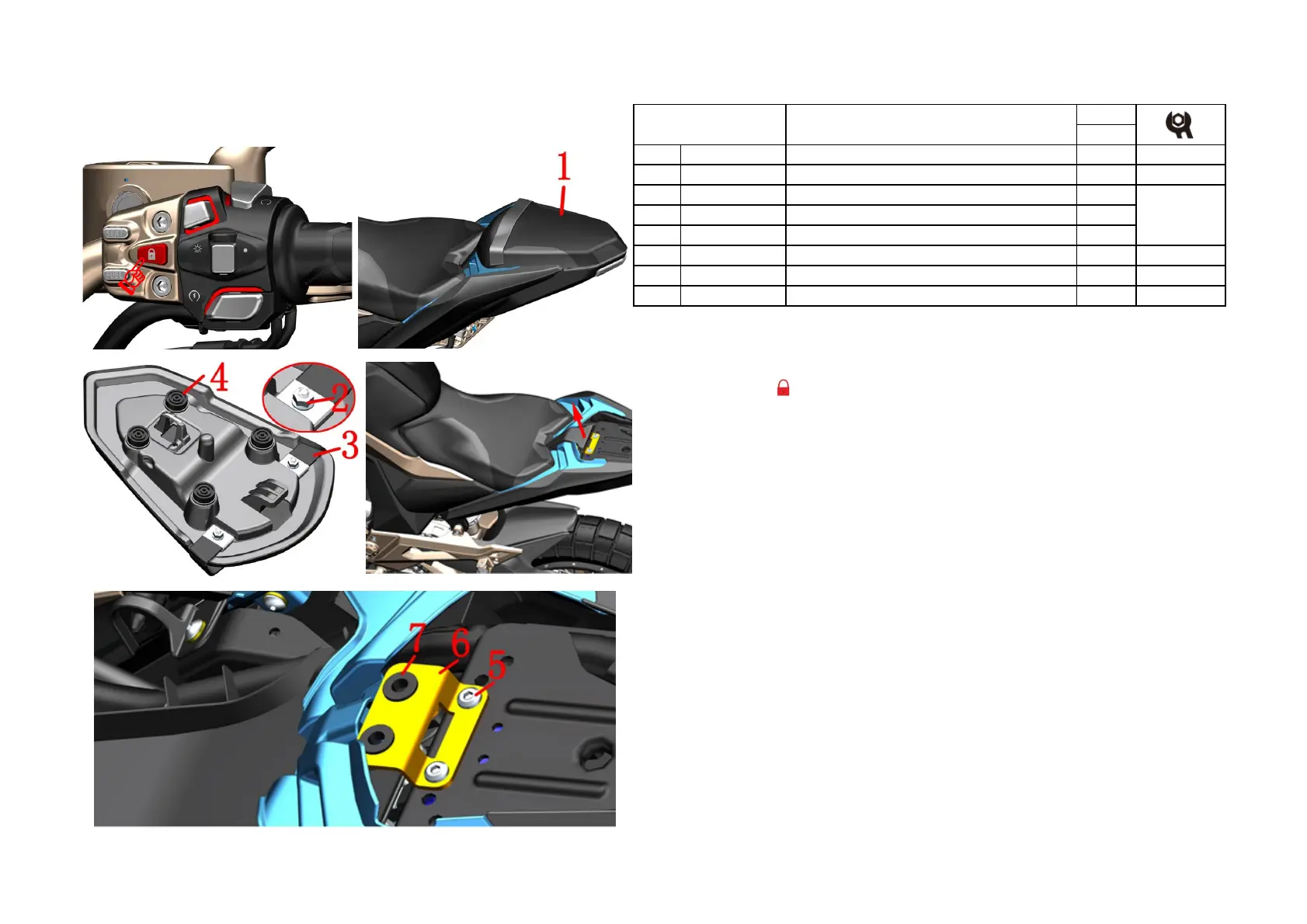

Fig.1 CUSHION
COMPONENT
Rear cushion component
after-sales
PROCEDURE:
●Remove rear cushion
Press the unlock button " " shortly.After the power-on self test is completed, press the "SEAT" button briefly
to open the electronic cushion lock.
Grasp the seat cushion (1) and pull it upward diagonally, and then pull it back to remove the seat cushion.
●Assembly rear cushion
When assembling the cushion, check whether all the cushion rubbers are complete,the seat lock is open.
First insert the front of the cushion into the limit hole of the cushion bracket.After the assembly is in place,
shoot the rear part of the cushion firmly. When you hear the "click" sound, it indicates that the cushion lock has
been assembled.
●Cushion Bracket
Grasp the bracket shown in Figure 4, pull it up, and then pull it back to remove the front cushion assembly.
Using 5# inner hexagon socket remove 2pcs bolts⑸,take off the cushion bracket⑹.Take off 2pcs cushion
rubber⑺ from the cushion bracket.
●Cushion rubber and belt, purchased separately
The rear cushion⑴ comes with nut⑵,seat belt⑶and 4 pcs cushion rubber⑷.The corresponding installation
position is shown in the left figure 3.
CAUTION:
●The motorcycle should be fixed before operation.
●Cushion can cause accidents if it is not installed properly.
☟
