5-PEDAL COMPONENT
33
CHK
ADJ
NO. PART NO.
1 1250205-023000 GB70.1 inner hexagonal M8X35 (color zinc) 3
2 1251100-101000 Non－standard bolt M6×12 (304 stainless steel) 1
Fig.2 FOOT PEDAL
COMPONENT
Right footrest component-1
PROCEDURE:

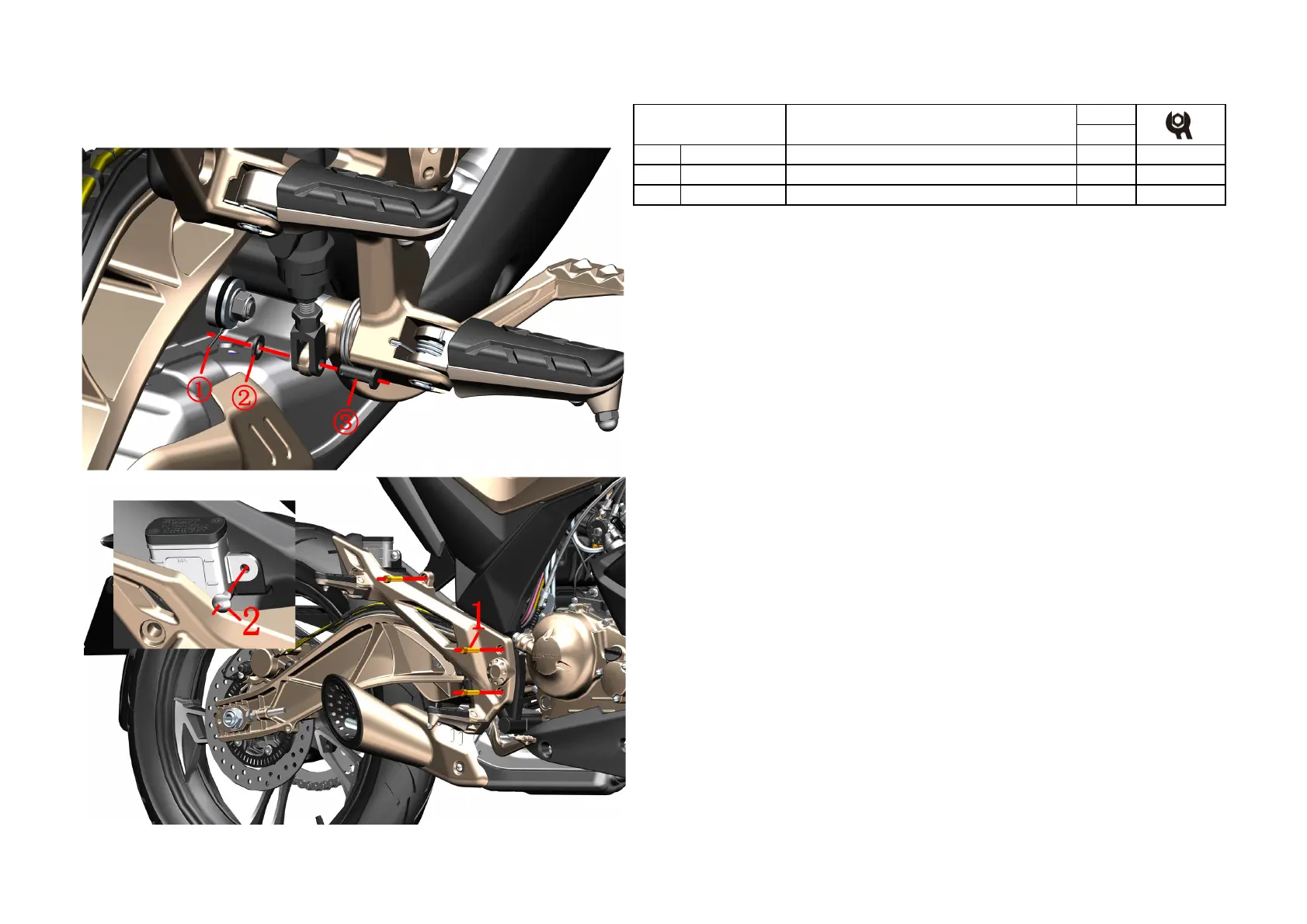

●Right Foot pedal component
Using a plier to disassemble the pin①. Then take off the washer② and pin③.
Using 6# inner hexagon socket remove 3pcs bolts⑴.
Using 4# inner hexagon socket remove bolt⑵,then take away the oil cup.
CAUTION:
●
While overturning the foot pedal holder, keep the components nearby well protected in case they are scratched.
●Mind the disc brake oil tube while overturning the holder.
●Support the motorcycle properly while disassembling in case it falls down.
●Rear disc brake oil cup can not be lower than oil tube interface of main pump.
