4-REAR WHELL COMPONENT
27
CHK
ADJ
NO. PART NO.
1 1251100-105000
ZT310－Z chain adjuster bolt M10×70 (304 stainless steel)
2
2 1251300-050000 ZT310-Z chain adjuster bolt M10(304 stainless steel) 2
3 ZT310 R, chain adjuster 1
4 1251300-067000 ZT250－R rear wheel hollow shaft nut 1 110N.m
5 ZT310 L, chain adjuster 1
6 1091200-025000 KD150－U rear wheel hollow shaft 1
7 1274200-002000 ZT310 rear wheel right sleeve φ20×φ28×φ38×18.5 1
8 1244200-050000 ZT310－T cushion gum 5
9 1094200-011000 ZT310－R sprocket 1
10
Sprocket
1
11 1251300-057093 Non－standard nut M10×1.5(dacromet) 5 45±3N.m
12 1094100-035000 ZT310 rear wheel left sleeve φ20×φ30×φ35×17.8 1

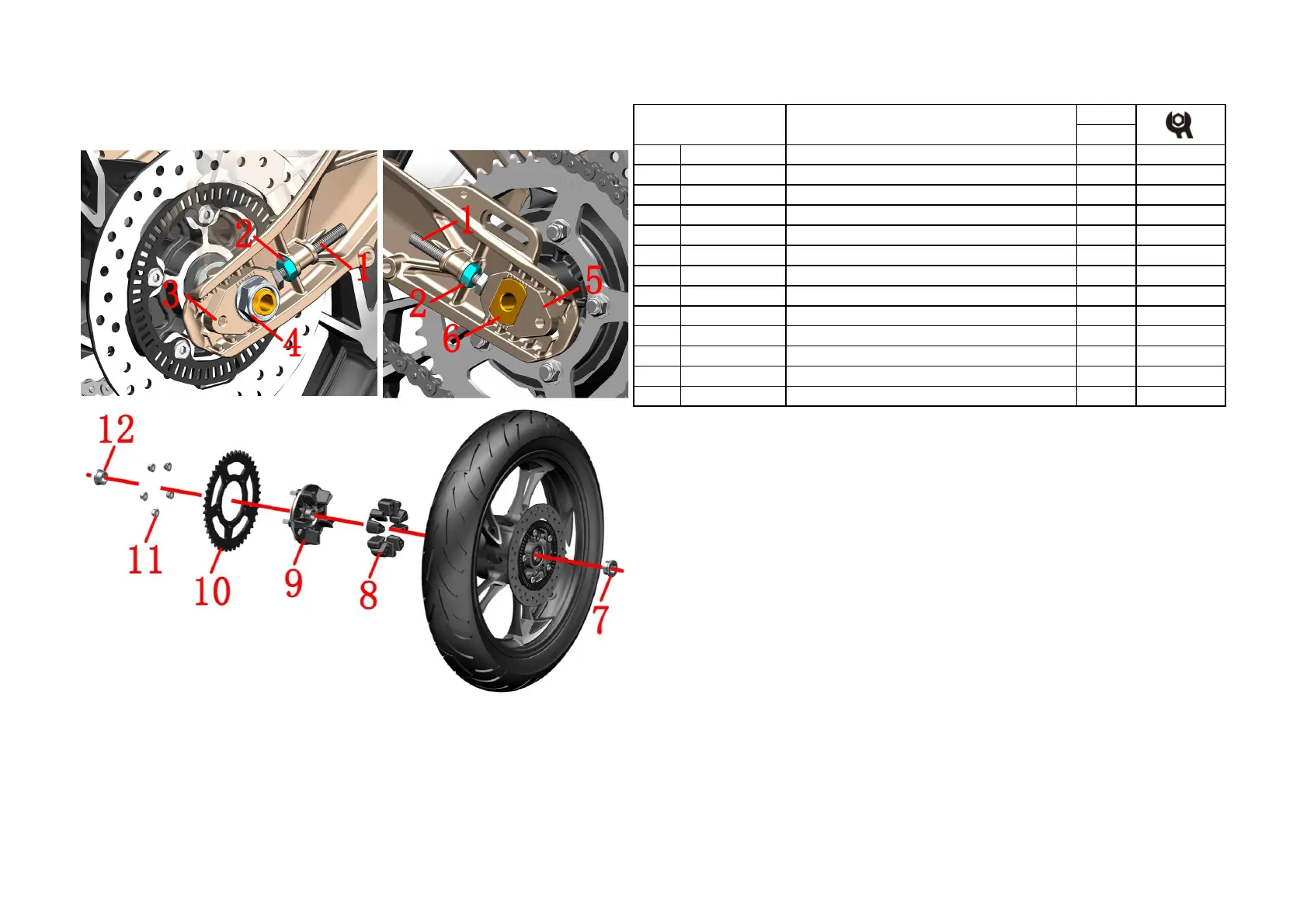

Fig.8 REAR WHELL
COMPONENT
Rear wheel component 1
●Rear wheel assembly
Disassemble rear wheel axle nut⑷ with a 30# sleeve.
Using 17# open spanner to move chain adjuster nut⑵ on both sides towards rear wheel axle until they reach
chain adjusting bolt⑴. Then rotate the bolts⑴ and nuts⑵ towards motorcycle front direction till the end.
Push rear wheel assembly towards motorcycle front direction and take off the chain from sprocket.
Hold the rear wheel assembly. Punch rear wheel axle⑹ with rubber hammer. Take off right chain adjuster⑶,
right axle sleeve⑺, rear tire and rim assembly, left axle sleeve⑿, left chain adjuster⑸. Tie firmly the rear disc
brake clamp and avoid it to be lifed higher than disc brake oil cup. Disassemble the rear wheel axle at last.
●Sprocket bracket assembly
Put down the rear wheel assemble horizontally. Take off nut⑾ with 14# sleeve. Take off sprocket⑽; sprocket
bracket⑼. Pull out the sprocket gum cushion⑻ from the rim.
CAUTION:
●Use suitable tool to support the motorcycle. Avoid accidents caused by falling motorcycle. Single person
manipulation is prohibited.All the standard parts need to reach standard torque while reassembling.
●Using iron hammer to punch rear wheel axle, disc brake clamp assembly is prohibitd.
●While disassembling the rear wheel assemble, avoid the rear disc brake clamp to be lifted higher than the disc
brake oil cup. If not, air will get into the tubes and cause softness or failure on braking system. As disc brake
tubes request extreamly high vaccum degree. Make sure manipulator has maintenance ability before
disassembling the disc brake assembly.
●Check the chain regularly. Increase the frequency of adjustment of the chain according to the driving
conditions. Keep the tightness of chain to be in a suitable range. Too loose chain have possibility to separate from
sprocket or damage the engine. Too tight chain can be worn out quickly.
●Wheel axle: Use dial indicator to check if it's deformed or bended.
●The oil seal modelφ52×φ30×7 of the sprocket seat and the bearing 6205.
