8-FUEL TANK COMPONENT
71
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-102000 Non－standard bolt M6×16(304 stainless steel) 8
2 1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) 8
3 1274100-018000 ZT250－S anti－hot plate sleeve, muffler 4
4 1251100-101000 Non－standard bolt M6×12 (304 stainless steel) 4
5 1274100-057095 Flanging bushing φ6.2×φ8.5×3.5＋φ14×1.5 4
6 1251200-033093 Non-standard self-tapping bolt ST4.2×12(color zinc) 2
PROCEDURE:
●PKE component
Using 4# inner hexagon socket remove 2pcs bolts⑴,take off the cushion rubber⑵ and the bushing⑶.
Using 4# inner hexagon socket remove 2pcs bolts⑴,take off the bushing⑸ and the cushion rubber⑵.
Using 5# inner hexagon socket remove the bot⑹,if your motocycle had been improved.
Using 4# inner hexagon socket remove the bot⑷,then take off the PKE component.
●USB component
Refer to the steps above to remove the USB component.
●Fuel tank cover component
Using 4# inner hexagon socket remove 2pcs bolts⑷ in the middle of the fuel tank component,separate the
left(right) fuel tank cover component and the fuel tank component.
CAUTION:
●The parts should be protected during the disassembly process.Pay attention to protect the oil pump outlet pipe
at the arrow point.
●When reassembling, check if there is any pressure on the USB and PKE wires to prevent it from tightening.
Short circuit caused by bolts.
●You can watch the detailed operation in "KIDEN official website assembly video KD150-U1, U fuel tank
assembly".

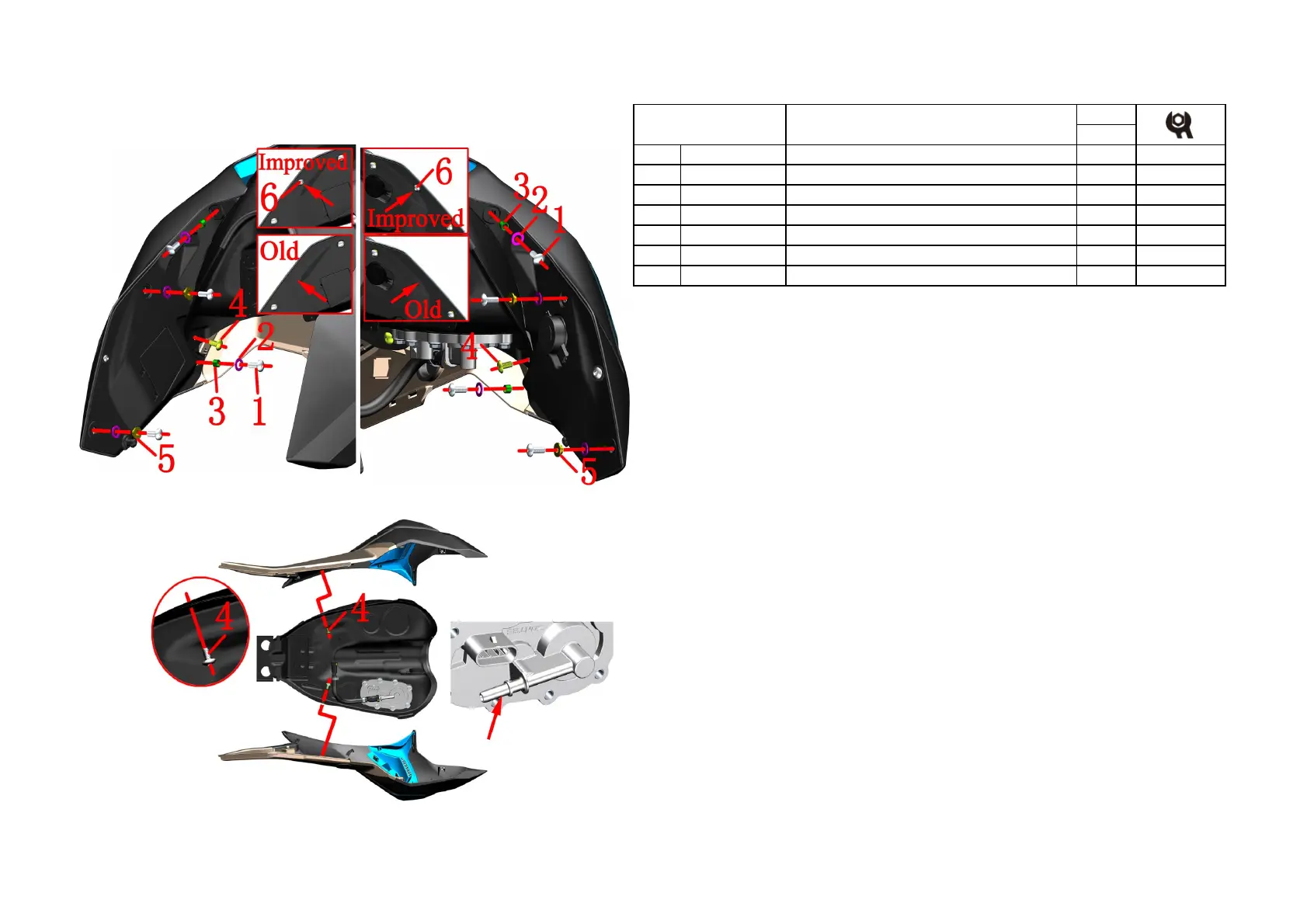

Fig.3 FUEL TANK
COMPONENT
Fuel tank cover component
To Next Page
