Zontes ZT155-U User Manual

1-FRAME&ELECTRONIC COMPONENT
13
CHK
ADJ
NO. PART NO.
PART NAME QTY CAUTION
2
1130900-026000
ZT250
－
S upper steel bowl
2 after sales
3 1251300-057093
Non-standard nut M10×1.5
（
dacromet
）
1
4 1251700-025091
ZT250
－
S side stand sleeve
1
5 Side support 1
6 1251100-088094
Non-standard nut M10×1.5×43
（
dacromet
）
1
7 1264100-001000
ZT250
－
S side stand spring
1
PROCEDURE：
●Checking the cushion loop
Checking whether the cushion loop ⑵ is frayed, if as it, please replace it. Fix the cushion loop well and paint
the lubricating grease on it with appropriate tool.
●Sider support
Using the cross screwdriver to remove the side support spring⑺, and guard against the personal injury caused
by spring contraction, use 14#sleeve or plum blossom wrench remove the nuts ⑶ and then remove bolts ⑸ .
Remove the side support ⑸ and bush⑷, paint the lubricating grease on the bush⑷ when re-assembling ,then put
it into the frame⑴.
CAUTION：
●Remove the wind deflector component, handle bar component, steering column component first.
●Paint the lubricating grease on the cushion ring to decrease the rotary resistance of front forklift.
●Pay attention to safety when mounting side support spring.
●All parts should be correctly assembled.

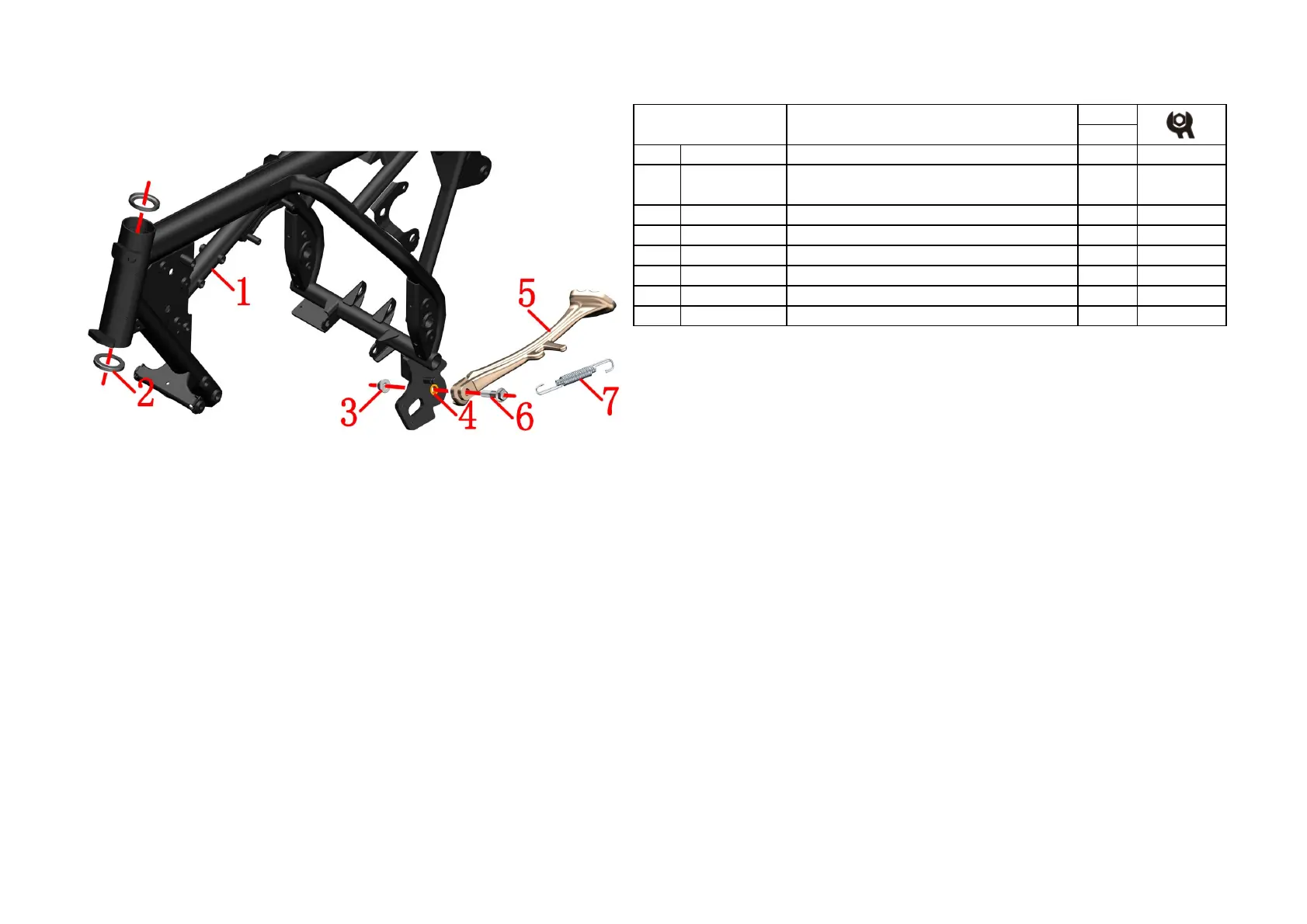

Fig.7 FRAME&ELECTRONIC
COMPONENT
Frame, side bracket
11
Frame after-sales component(contains fix loop and
nameplate)
